Analog Devices (LM4040AIM3-4.1+T) Voltage Reference Shunt - Fixe

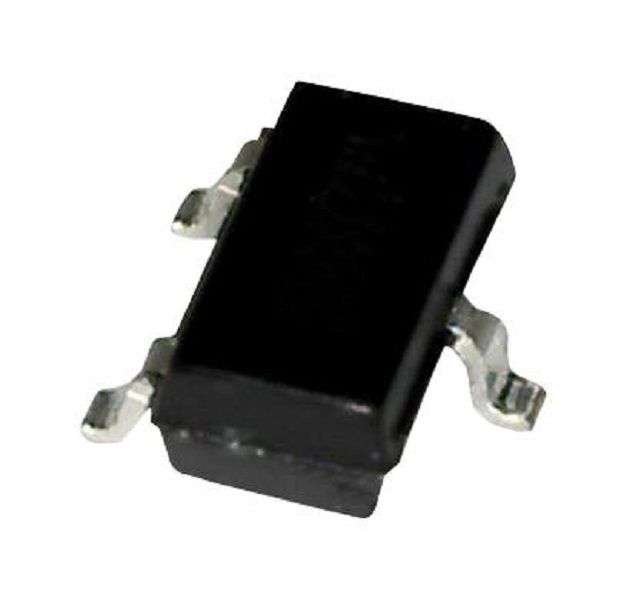

Voltage Reference Shunt - Fixed, 4.096V reference, ± 30ppm/°C, SOT-23-3Product OverviewThe LM4040AIM3-4.1+T is an improved precision micropower shunt voltage referencein 3 pin SOT-23 package. This two terminal shunt mode band gap voltage referenceis ideal for space critical applications. The laser trimmed resistors ensureprecise initial accuracy of 0.1% with ±30ppm/°C temperature coefficient (IR =10mA). The LM4040A has 50µA minimum shunt operating current capability with lowdynamic impedance which ensures stable reverse breakdown voltage accuracy over awide range of operating temperatures and currents. This device does not requirean external stabilizing capacitor while ensuring stability with any capacitiveload.Fixed reverse breakdown voltage of 4.096VOperating temperature range from -40°C to 85°CLow wideband output noise of 64µVrms (10Hz to 10KHz, IR=100µA)Reverse breakdown voltage tolerance of ±4.1mVReverse dynamic impedance of 0.5ohm (IR = 1mA, f = 120Hz, IAC = 0.1IR)ApplicationsPower Management, Consumer Electronics, Portable Devices, IndustrialProduct InformationVoltage Reference Type: Shunt - FixedProduct Range: LM4040Reference Voltage: 4.096VInitial Accuracy: 0.1%Temperature Coefficient: ± 30ppm/°CVoltage Reference Case Style: SOT-23No. of Pins: 3PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
