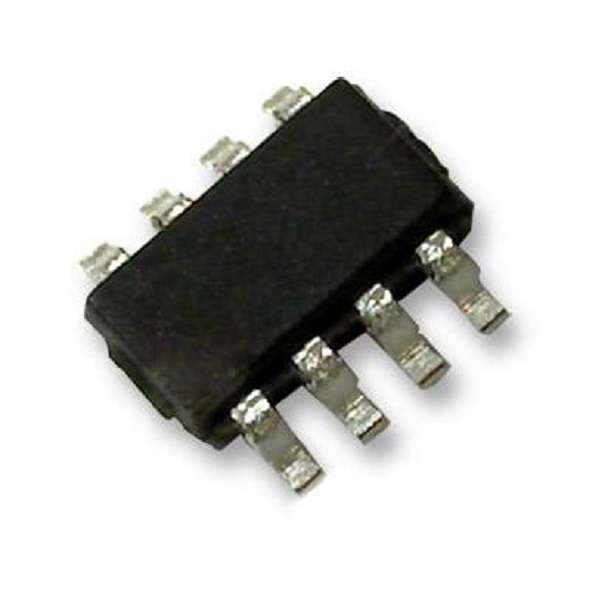

Analog Devices (MAX3373EEKA+T) Level Translator, 4 Inputs

Level Translator, 4 Inputs, 1.65 V to 5.5 V Supply, 1 mA Out, 210 ns Delay,SOT-23-8Product OverviewThe MAX3373EEKA+T is a 16Mbps dual low-voltage Level Translator. The ±15kVESD-protected level translator provides the level shifting necessary to allowdata transfer in a multi-voltage system. Externally applied voltages, Vcc andVL, set the logic levels on either side of the device. A low-voltage logicsignal present on the VL side of the device appears as a high-voltage logicsignal on the Vcc side of the device and vice-versa. This bidirectional leveltranslator utilizes a transmission-gate-based design to allow data translationin either direction on any single data line. This accept VL from +1.2V to +5.5Vand Vcc from +1.65V to +5.5V, making them ideal for data transfer betweenlow-voltage ASICs/PLDs and higher voltage systems.Bidirectional level translationUltralow 1µA supply current in three-state output modeLow-quiescent current (130µA typical)Thermal short-circuit protectionApplicationsConsumer Electronics, Sensing & Instrumentation, Portable Devices,Communications & Networking, Computers & Computer PeripheralsProduct InformationNo. of Inputs: 4InputsOutput Current: 1mAPropagation Delay: 210nsNo. of Pins: 8PinsLogic Case Style: SOT-23Supply Voltage Min: 1.65VSupply Voltage Max: 5.5VOperating Temperature Min: -40°COperating Temperature Max: 85°CLogic Type: Level TranslatorProduct Range: -MSL: MSL 1 - Unlimited
