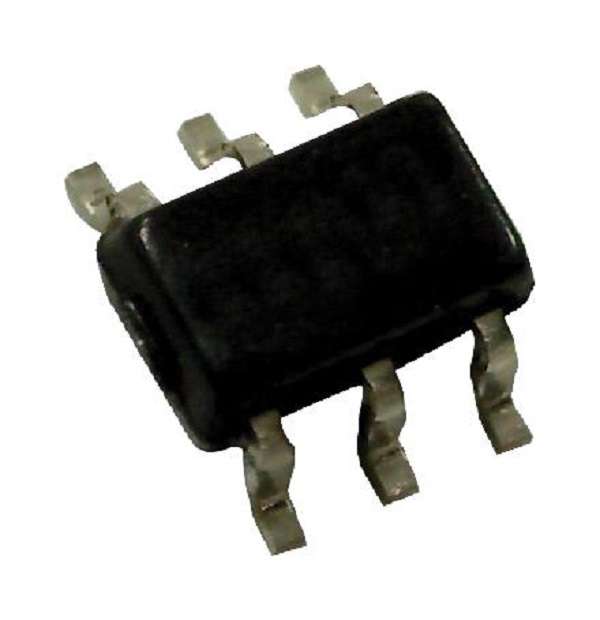

Analog Devices (MAX44284HAUT+T) Current Sense Amplifier, High Precision

Current Sense Amplifier, High Precision, 1 Amplifier, 2000 pA, SOT-23, 6 Pins,-40 °C, 125 °CProduct OverviewThe MAX44284HAUT+T is a 36V, input common-mode, high precision, low powercurrent-sense amplifier in 6 pin SOT-23 package. It is a high-side,current-sense amplifier that operates with a 1.7V to 5.5V single supply and isoptimized for very low power operation with only 21µA of quiescent current. TheMAX44284 is ideal for many battery-powered, handheld devices because it usesonly maximum 31.2µA quiescent supply current to extend battery life. Thedevice's low input offset voltage, tight gain error and low temperature driftcharacteristics allow the use of small-sense resistors for current measurementsto improve power-supply conversion efficiency and accuracy of measurements. Thisfeature allows monitoring of power-supply load current even if the rail isshorted to ground. High-side current monitoring does not interfere with theground path of the load being measured, making the IC particularly useful in awide range of high-reliability systems.Fixed gain of 100V/VOperating temperature range from -40°C to 125°CLow gain error is 0.05%Extremely low 50nV/°C input offset tempco coefficientVery low input offset voltage of 2µVInput bias current is 80nAWide input common-mode range from -0.1V to +36VApplicationsSignal Processing, Portable DevicesProduct InformationNo. of Amplifiers: 1 AmplifierInput Bias Current: 2000pAAmplifier Case Style: SOT-23No. of Pins: 6PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CBandwidth: 1.8kHzSupply Voltage Min: 1.7VSupply Voltage Max: 5.5VInput Offset Voltage: 2µVCMRR: 145dBMSL: MSL 1 - Unlimited
