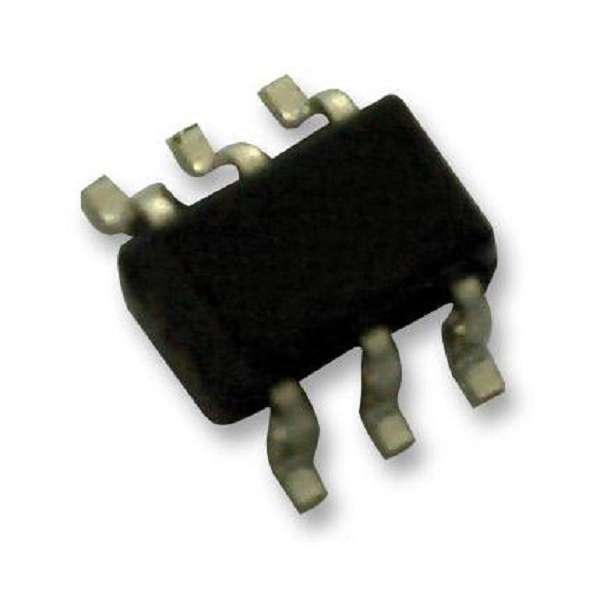

Analog Devices (MAX4599EXT+T) Analogue Switch, Low Voltage, 1 Channels

Analogue Switch, Low Voltage, 1 Channels, SPDT, 110 ohm, 2V to 5.5V, SC-70, 6PinsProduct OverviewThe MAX4599EXT+T is a low voltage, single supply, SPDT analogue switch in 6 pinSC-70 package. It operates from a +2V to +5.5V single supply. It offers 60 ohmmax on-resistance (RON) at +5V and fast switching times (tON = 30ns max, tOFF =25ns max). The MAX4599 features excellent RON flatness (4ohm max) and matching(1ohm max) between channels. This device also offers 5pC max charge injection.Typical applications include audio and video signal routing, cellular phones,low voltage data acquisition systems, sample and hold circuits.On-channel -3dB bandwidth is 200MHzOperating temperature range from -40°C to 85°CLow leakage current of ±0.5nA at +25°CBreak before make switchingTTL/CMOS logic compatibleOff isolation is 76dB at 1MHzTotal harmonic distortion is 0.12%ApplicationsSignal Processing, Portable Devices, Communications & NetworkingProduct InformationAnalogue Switch Type: SPDTNo. of Channels: 1ChannelsOn State Resistance Max: 110ohmSupply Voltage Range: 2V to 5.5VAnalogue Switch Case: SC-70No. of Pins: 6PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
