Analog Devices (MAX4644EUT+T) Analogue Switch, High Speed, 1 Channels

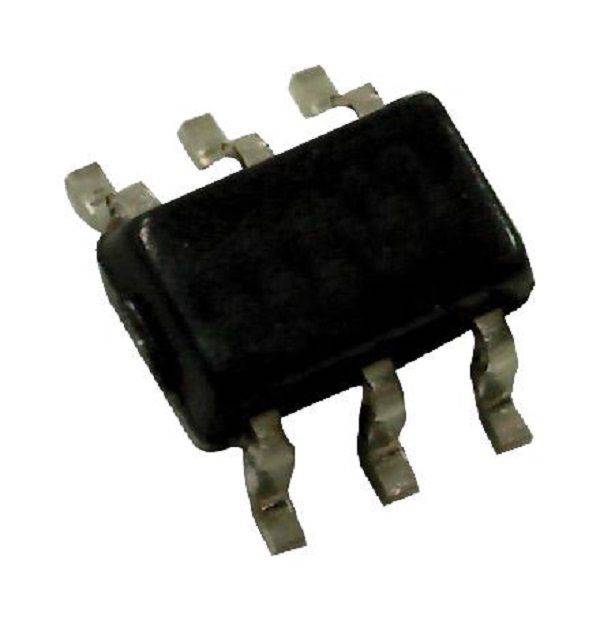

Analogue Switch, High Speed, 1 Channels, SPDT, 8 ohm, 1.8V to 5.5V, SOT-23, 6PinsProduct OverviewThe MAX4644EUT+T is a high speed, low voltage, 4ohm, SPDT CMOS analogue switchin 6 pin SOT-23 package. It provides low 4ohm on-resistance (RON) as well as1ohm RON flatness over the entire analogue signal range. The MAX4644 offers fastswitching times of less than 20ns while ensuring break before make operation. Ittypically consumes only 0.01µW of quiescent power making it suitable for use inlow power portable applications. The MAX4644's features include low leakagecurrents over the entire temperature range, TTL/CMOS-compatible digital logicand excellent AC characteristics. Typical applications include battery operatedequipment, audio and video signal routing, low voltage data acquisition systems,sample and hold circuits.Supply voltage range is 1.8V to 5.5VOperating temperature range from -40°C to 85°CSwitching speed of tON 18ns (typ), tOFF 12ns typRON match between channels is 0.1ohm at +5V supplyLow leakage is less than 0.35nA over entire temperature rangeLow crosstalk is -82dB at 1MHzHigh off isolation is -80dB at 1MHzTotal harmonic distortion is 0.018%Low power consumption of less than 0.01µWApplicationsSignal Processing, Portable Devices, Communications & NetworkingProduct InformationAnalogue Switch Type: SPDTNo. of Channels: 1ChannelsOn State Resistance Max: 8ohmSupply Voltage Range: 1.8V to 5.5VAnalogue Switch Case: SOT-23No. of Pins: 6PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
