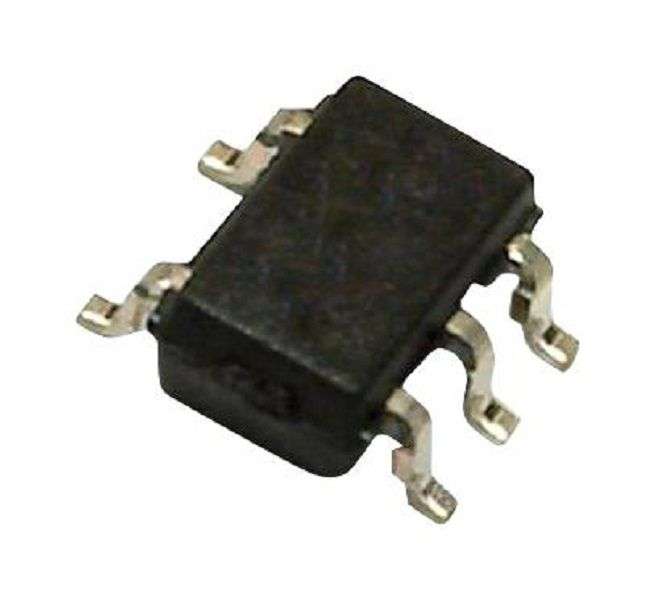

Analog Devices (MAX4707EXK+T) Analogue Switch, Low Voltage, 1 Channels

Analogue Switch, Low Voltage, 1 Channels, SPST - NO, 3 ohm, 1.8V to 5.5V, SC-70,5 PinsProduct OverviewThe MAX4707EXK+T is a low voltage, 2ohm, SPST, CMOS analogue switch in 5 pinSC-70 package. It is normally open (NO) version switch and provide 2ohmon-resistance (RON) and 0.6ohm (RON) flatness with a +2.7V supply. This devicetypically consumes only 0.02µA of quiescent current, making it suitable for usein low power and portable applications such as battery operated equipment, audiosignal routing, low voltage data acquisition systems, sample and hold circuits,communications circuits and relay replacement.Supply voltage range is 1.8V to 5.5VOperating temperature range from -40°C to 85°CExcellent AC characteristics, 190MHz -3dB bandwidthHigh off-isolation is -67dB at 1MHzTotal harmonic distortion is 0.013%Low supply current of 0.02µACharge injection of 5pCApplicationsSignal Processing, Portable DevicesProduct InformationAnalogue Switch Type: SPST - NONo. of Channels: 1ChannelsOn State Resistance Max: 3ohmSupply Voltage Range: 1.8V to 5.5VAnalogue Switch Case: SC-70No. of Pins: 5PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
