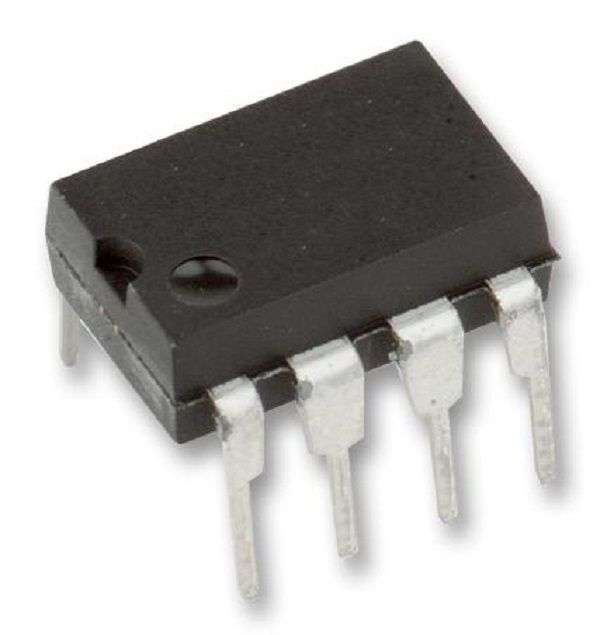

Analog Devices (MAX488CPA+) RS485/RS422, Transmitter/Receiver

Product OverviewThe MAX488CPA+ is a low-power Slew-rate-limited Transceiver for RS-485 andRS-422 communication. Each part contains one driver and one receiver. The MAX488feature reduced slew-rate drivers that minimize EMI and reduce reflectionscaused by improperly terminated cables, thus allowing error-free datatransmission up to 250kbps. This transceiver draws between 120µA and 500µA ofsupply current when unloaded or fully loaded with disabled drivers. All partsoperate from a single 5V supply. Drivers are short-circuit current limited andare protected against excessive power dissipation by thermal shutdown circuitrythat places the driver outputs into a high-impedance state. The receiver inputhas a fail-safe feature that guarantees a logic-high output if the input is opencircuit. This is designed for full-duplex applications.0.12mA Typical low power250kbps Data rate120µA Quiescent current32 Number of receivers on bus14 Pin countIndustrial-Control Local Area Networks; Level Translators; Low-Power RS-422Transceivers;Low-Power RS-485 Transceivers; Transceivers for EMI-Sensitive ApplicationsApplicationsCommunications & Networking, IndustrialProduct InformationDevice Type: Line Driver / ReceiverIC Interface Type: RS422, RS485No. of Drivers: 1DriversNo. of Receivers: 1ReceiversSupply Voltage Min: 4.75VSupply Voltage Max: 5.25VDriver Case Style: DIPNo. of Pins: 8PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: -
