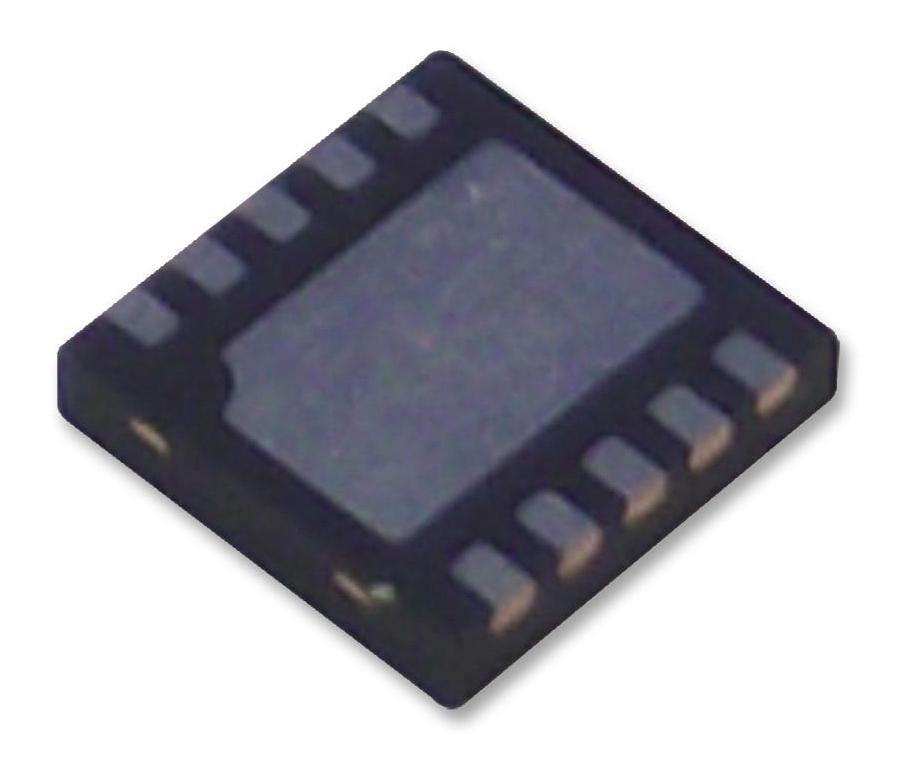

Analog Devices (MAX4906FELB+T) Analogue Switch, 2 Channels, SPDT, 7 ohm

Analogue Switch, 2 Channels, SPDT, 7 ohm, 3V to 3.6V, µDFN, 10 PinsProduct OverviewThe MAX4906FELB+T is a high /full speed USB 2.0 switch in 10 pin µDFN package.This analogue switch combines the low on capacitance (CON) and low on-resistance(RON) necessary for high performance switching applications. Device is designedfor USB 2.0 high speed applications at 480Mbps. This switch will also handle allrequirements for USB low and full speed signalling. It features twosingle-pole/double-throw (SPDT) switch and has a low 7ohm (max), on-resistanceand 7pF (max) on-capacitance. Device is fully specified to operate from a single+3V to +3.6V power supply and is protected against a +5.5V short to COM1 andCOM2. This feature makes it fully compliant with USB 2.0 specification of +5.5Vfault protection. It features a low threshold voltage and a +1.4V VIH,permitting it to be used with low voltage logic. It is used in GPS, notebookcomputers, relay replacements, USB switching, Ethernet switching, videoswitching, Bus switches and T3/E3 switches for redundancy protection.Quiescent supply current is 300µA (max) at V+ = 3.6V, VIN = 0Operating temperature range from -40°C to 85°C1GHz (typ) -3dB bandwidthLow bit to bit skew
