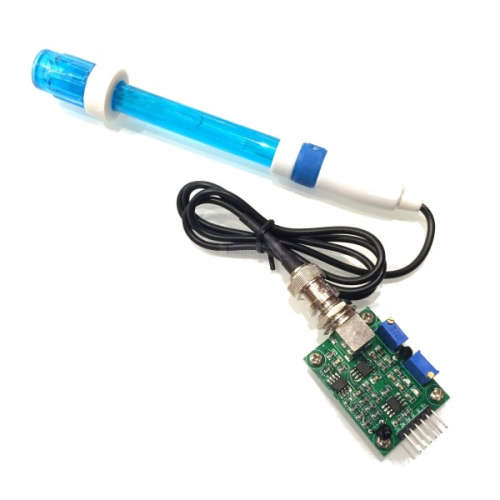

Analog pH Meter Kit for Arduino
The pH electrode has a single cylinder that allows direct connection to the input terminalof a pH meter, controller, or any pH device which has a BNC input terminal.
Sensor Module
Heating voltage: 5 ±0.2V (AC -• DC)
Working current: 5-10mA
The detection concentration range: pH 0 ~ 14
The detection range of temperature: 0 ~ 80 °C
The response time: ≤ 5s
Stability time: ≤ 60s
Power consumption: ≤ 0.5W
The working temperature: -10 ~ 50 °C (the nominal temperature 20 °C)
Working humidity: 95%RH (nominal humidity 65%RH)
Service life: 3 years
Size: 42mm x 32mm x 20mm
Weight: 25g
Colours may vary from picture.
Package Includes:
1 x BNC Electrode Probe
1 x Liquid pH Value Detection Sensor Module for Arduino
