Analog receiver module Adaptor V2 for DJI Digital FPV goggles

8 available / new
R698.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DJI168
Bob Shop ID
622057128

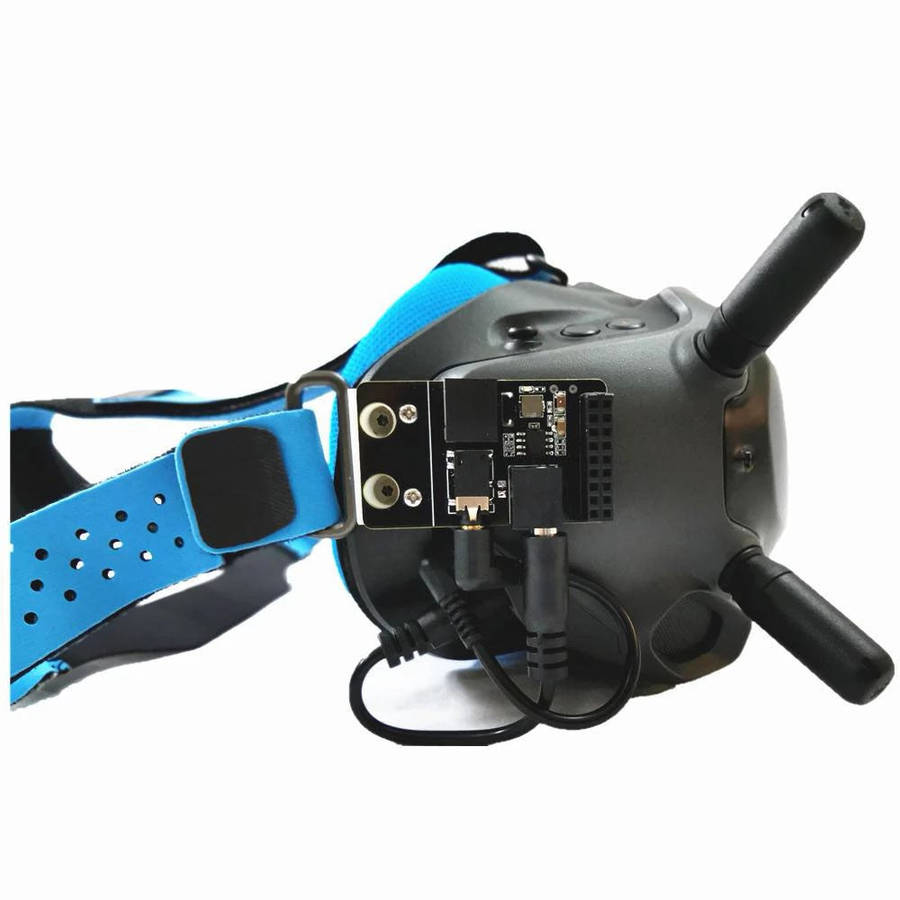

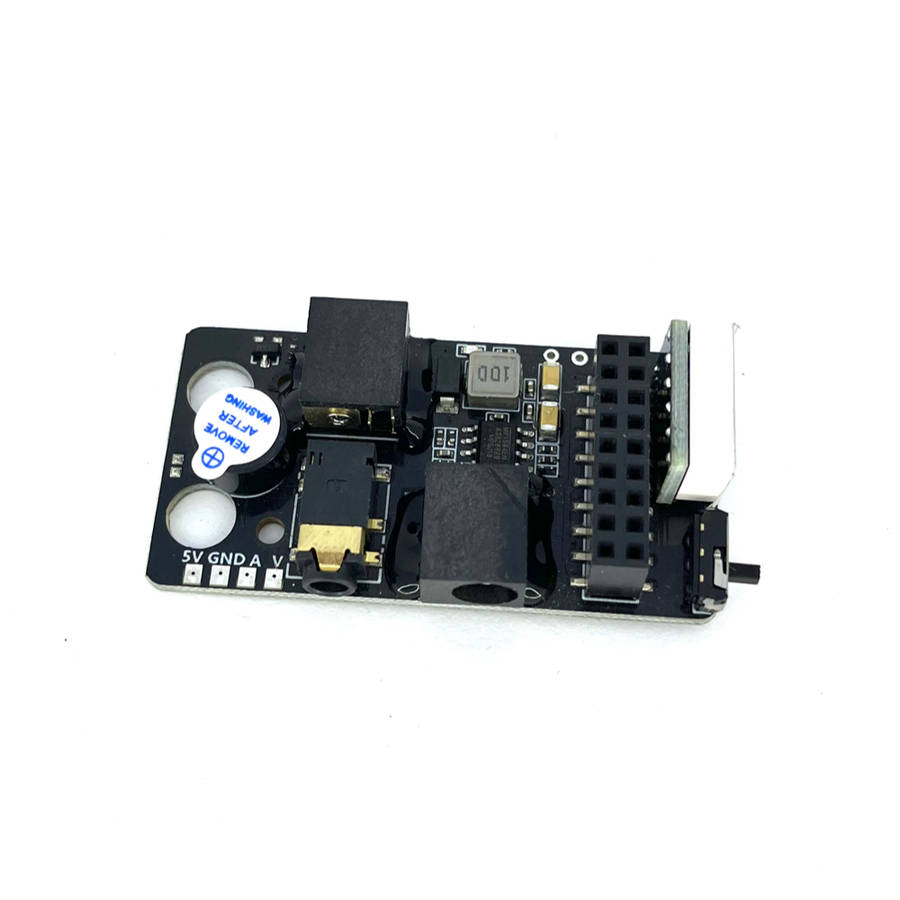

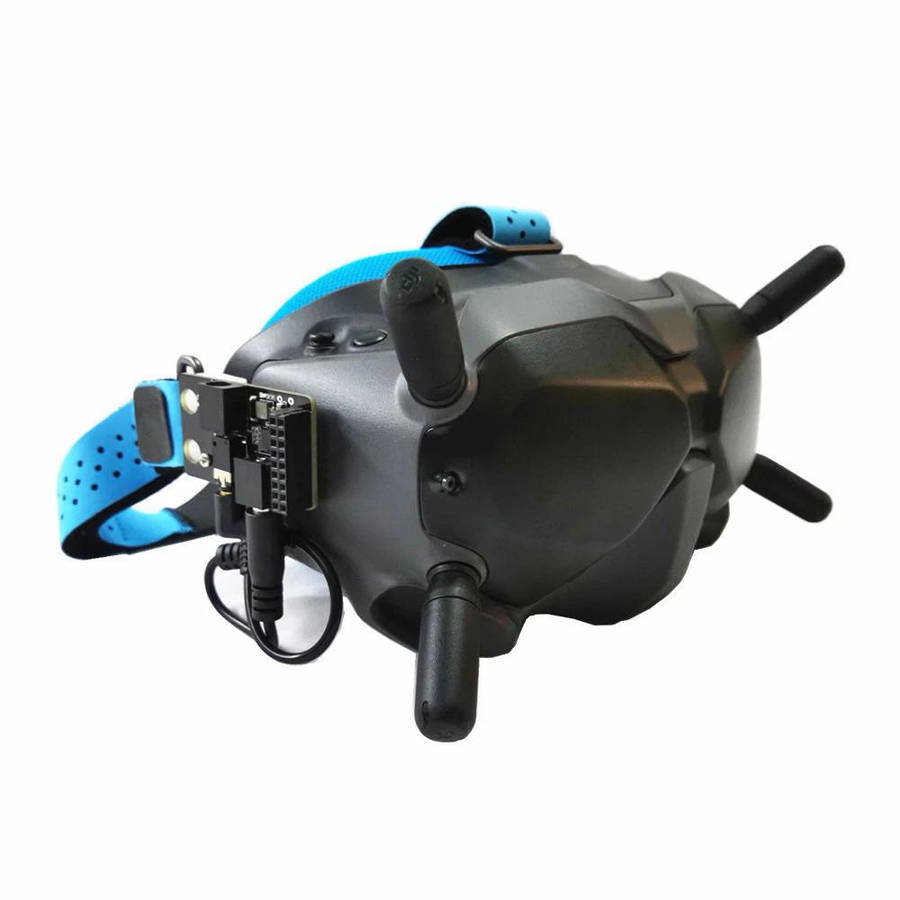

Get ultimate versatility with your DJI FPV Goggles. This Fat Shark receiver module adapter fits on the side of the DJI Digital FPV Goggles to give you the ability to use 3rd party analog video receiver modules! It is compatible with Fat Shark style modules, however, this is not a Fat Shark product.

The board hooks into the 3.5mm input jack on the goggles which in turn transfers video and audio signals from the external analog receiver to the high-quality screen of DJI FPV goggles for viewing! (Or even recording the analog footage with the new DJI firmware).

This compact and affordable adapter is easy to install and won't void your warranty!

Specifications

V2 now comes with a power switch!

  • Input Voltage: 2S-4S (DC5.5x2.1mm)
  • Internal Voltage: 5V 3A (with pad output)
  • Output Voltage: 2S-4S (DC 5.5x2.1mm)
  • Signal Input: Standard Fat Shark Receiver Port
  • Including third-party receivers: Realacc, Furious, etc.
  • Signal output: standard audio / video
  • Dimension: 48x28x12mm
  • Weight: 10g (without extension cable)
