Analog to Digital Audio Adapter | RCA to Optical SPDIF Toslink | Coaxial Digital

Analog to Digital Audio Adapter RCA Optical SPDIF Toslink

This Analog to Digital Audio Adapter converts analog Left/Right RCA-style audio connections to digital S/PDIF coax or TOSLink outputs.

The unit is compact, easy to install, and operates in a wide variety of operating conditions.

How it works:

• Simply plug in your analog audio source into the RCA jacks, then connect your digital receiving device to your choice of either coaxial or optical digital output.
• Both digital outputs may also be used simultaneously. Power-cycle all connected equipment, and you will be enjoying digitally converted audio from your analog source at the receiving device.
• The digital output signals will be a 2 channel uncompressed LPCM (linear pulse code modulation) with sampling rate at 48KHz.

Specifications:

• Coaxial and optical output ports
• Right and Left RCA Stereo input ports
• 100-240VAC to 5VDC power supply (US/EU standards, CE/FCC/UL certified)

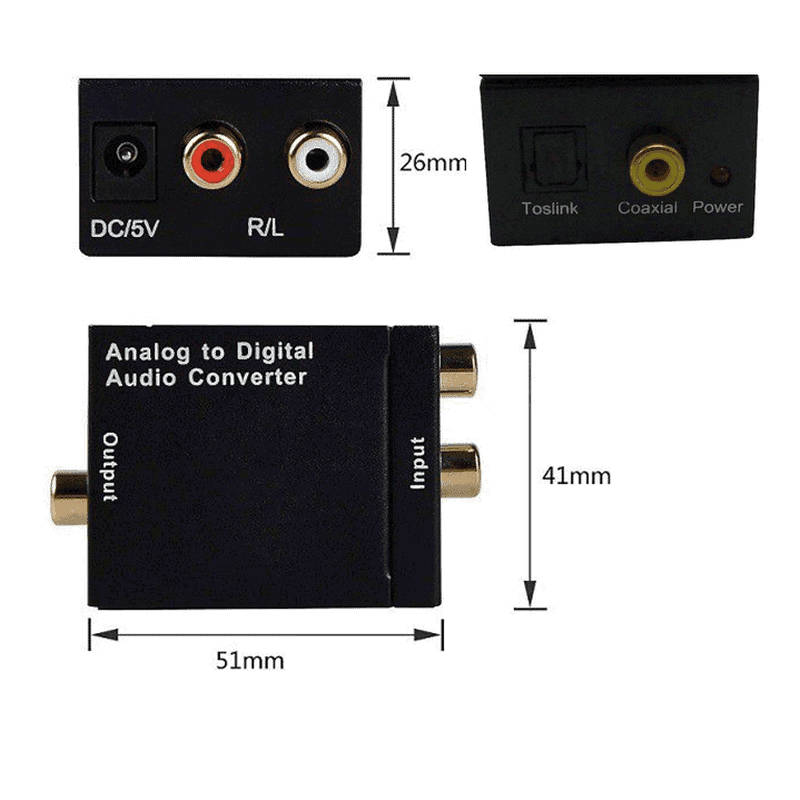

• Dimensions: 1.65 W x 0.87 H x 1.59 D
• Weight: 25g (unit only)
• Black metal chassis
• Operating temperature: 0-70 deg. C

What's in the Box?

• 1x Analog to Digital Audio Adapter
