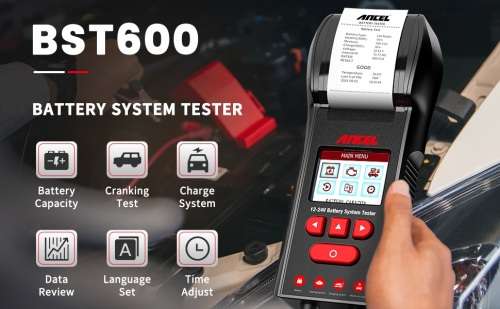

Ancel BST600 Battery Tester 12V / 24V with Build in Printer Battery Load Tester Cranking Charging Test
WE ARE EXCLUSIVE AUTHORISED DISTRIBUTOR OF ANCEL

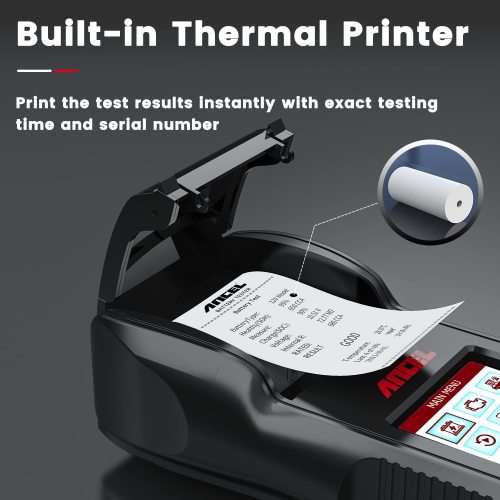

The Ancel BST600 battery tester is designed with convenience and broad functionality in mind. In addition to the printer function, it features a wide capability for the purpose of battery diagnosis and maintenance. It works on 12V and 24V battery systems, including the actual Cold Cranking Amps test, the health status test and the diagnosis of both starting and charging systems for common faults. It also has an integrated printer capable of printing out test results for improved service. This tool lets you know the condition of the battery system in advance, saves a trip and money to an auto repair shop. Battery system testers are used for activated style lead-acid storage battery and checking the battery conditions (temperature, starting up, charging, electrical loading)
Features:
- Tests 12V & 24V battery, cranking system and charging system.
- Test Multiple Battery Types: Regular flooded, AGM flat plate, AGM spiral, Gel and EFB.
- Supports all battery rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

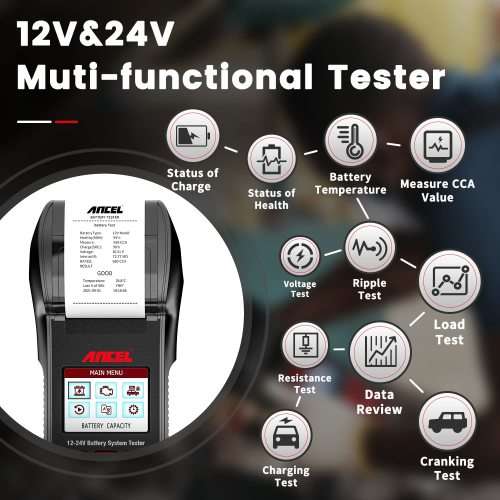

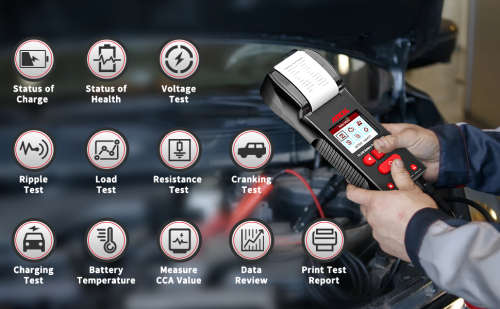

- Test result: Status of health (SOH), Status of charge (SOC), Measure CCA value, Battery temperature, Voltage, internal resistance, Ripple Test, load test, Data Review, Print Test Report. Displays test result in merely seconds, more accurate than the low-priced tester.
- Tests in-vehicle battery and single storage battery.
- Quick starter analysis without disabling the ignition.
- Easy to use and read with large backlight LCD display and menu-driven operation.
- Support languages: English, Deutsch, Italian, France, Espanola, Polsky, Nederland's, Japan and More.
Engine System Activation Load Test: Start the engine to make the tester record the lowest voltage in this process automatically. For the 12V system, the standard voltage is 9.6V; for 24V system, the standard voltage is 16V. If the lowest voltage is higher than the 9.6V (for the 24V system, the lowest voltage is over 16V), the system is good. If the lowest voltage is lower than the standard voltage, the system is not good.
Maximum Load System Test: For the 12V system, the standard voltage is 12.8V, for the 24V system, the standard voltage is 25.6V. If the lowest voltage is higher than the 12.8V (for the 24V system, the lowest voltage is over 25.6V), the system runs normally. If the lowest voltage is lower than 12.8V (for the 24V system, the lowest voltage is under 25.6V), please check if the engine belt is damaged and the wires are short-circuited.
Charging System Test: For the 12V system, the standard maximum voltage is 15V, the standard minimum voltage is 13.3V; for the 24V system, the standard maximum voltage is 30V, the standard minimum voltage is 26.6V. If the current voltage is higher than 15V or 30V, please check the voltage regulator. If the current voltage is lower than 13.3V or 26.6V, please check the connections, wires, and engine.
Specification:
- 12V/24V Battery tester with Printer.
- Application: For All 12 V 24V Solar Power Systems / RVs / Boats / Motorcycles / Trucks / Cars.
- Battery Temperature and Voltage Monitor, Cranking Charging Test.
- Test Multiple Battery Types: Regular flooded, AGM flat plate, AGM spiral, Gel and EFB.
- Performance Test: Charging Test, Cranking Test, Battery Test.
- Print Function: Support.
Package Included:
- 12V/24V Battery Tester with Printer.
