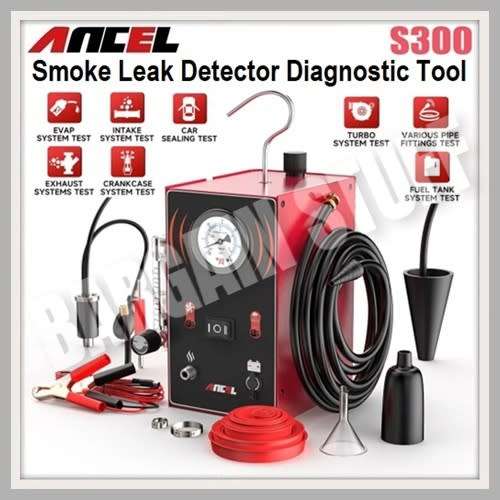

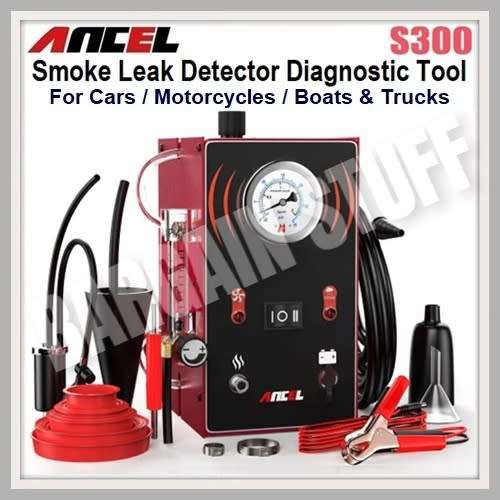

Ancel S300 Smoke Leak Detector for Car/Motorcycle/Boat/Truck EVAP Vacuum Leakage Diagnostic Tool

WE ARE EXCLUSIVE AUTHORISED DISTRIBUTOR OF ANCEL

The Ancel S300 Smoke Machine Automotive EVAP Leak Detector Tester with Built-in Air Pump Dual Mode Fuel Pipe Vacuum Leak Diagnostic Test Tool for Cars, Motorcycles, Trucks, Boats, ATV and More, Ancel S300 vacuum tester sets itself apart with its cutting-edge Isolated Heat Conduction technology, delivering superior durability compared to other tools on the market. With its user-friendly interface and versatile functions, it is an indispensable tool for your vehicle maintenance needs

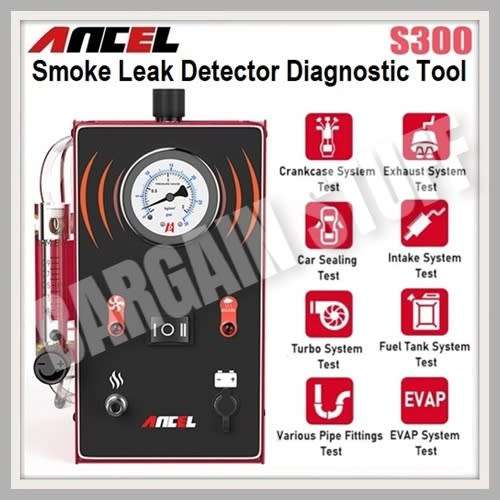

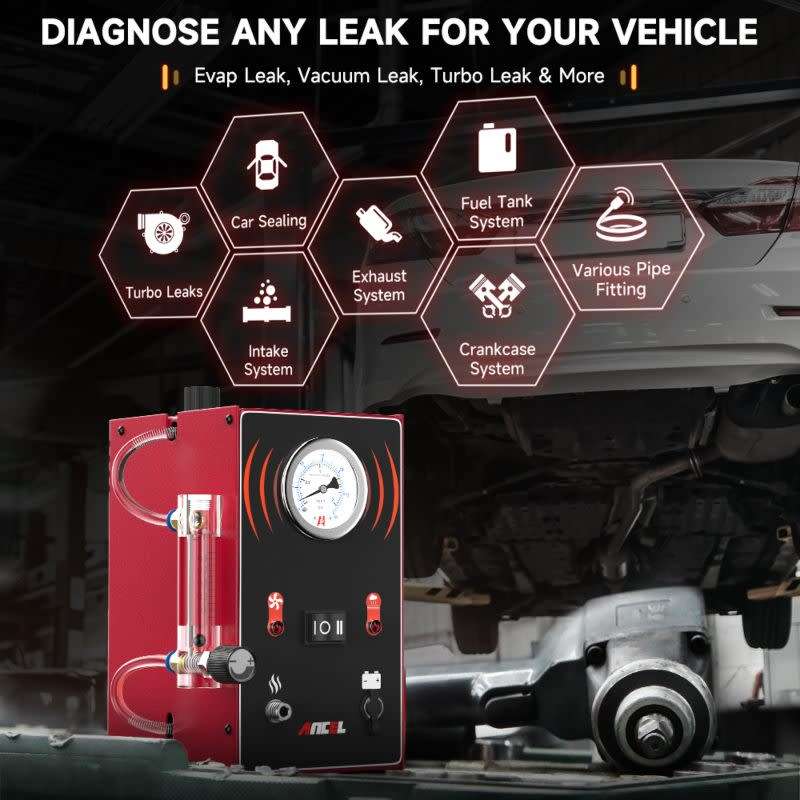

Support Multi System:

• Intake System Test / Exhaust Systems Test / Crankcase system test / Car Sealing Test / Fuel Tank System Test / Turbo System Test / Various Pipe Fittings Test.

\

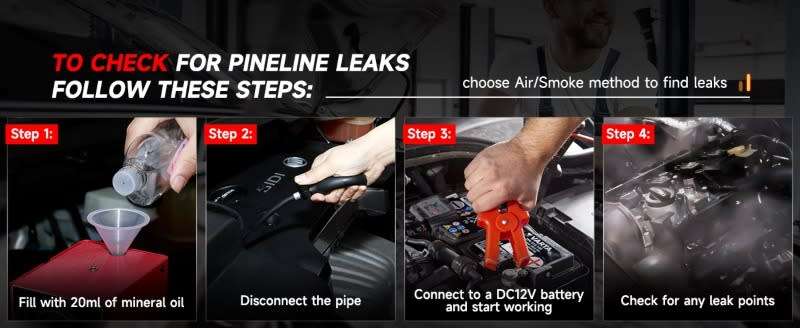

How to work with Ancel S300?

1. Fill in 10ml-20ml test oil (baby oil) to the detector.
2. Disconnect the pipe that needs to be connect with the detector.
3. Connect detector with DC12V battery, device starts to work.
4. The pipe will be filled with smoke, check the leak points.

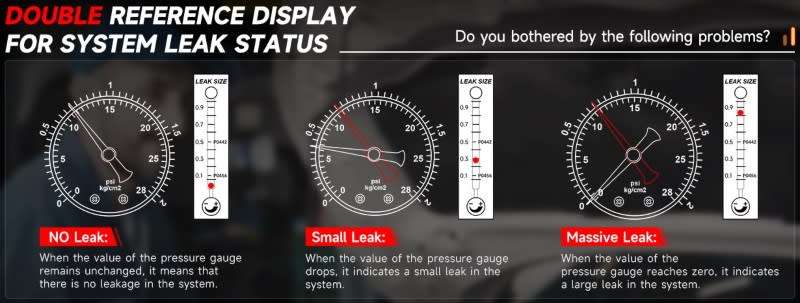

The function of flow meters and pressure gauges to determine whether there is air leakage:

• NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
• Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
• Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

Overheat & Anti-frost Protection:

• Overheat Protection: When the temperature of the device exceeds 75, power protection will be intelligently activated to turn it off.
• Anti-frost Protection: The device can also work normally at -20.

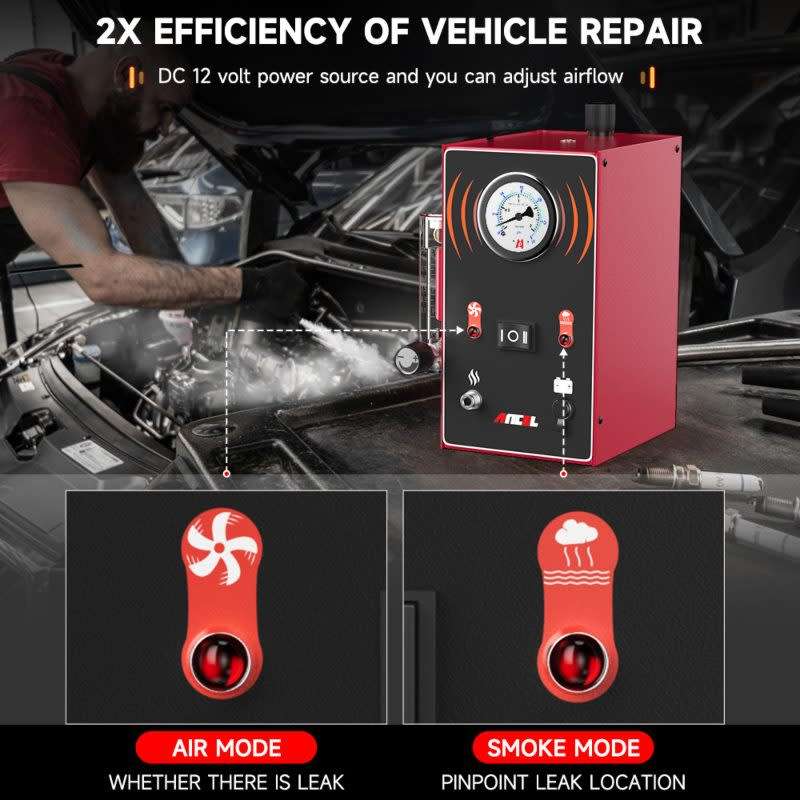

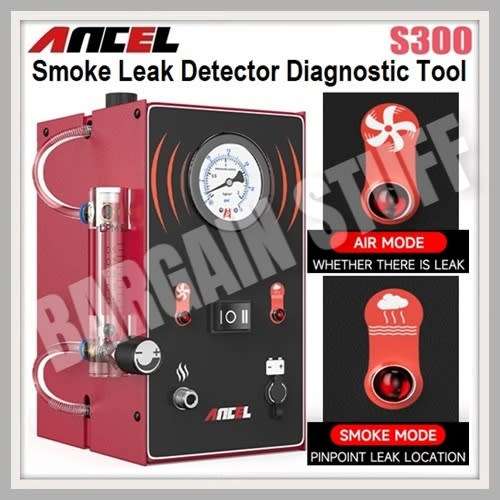

2 Modes for you to choose:

• AIR MODE: First use the air mode to directly measure the leak and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.
• SMOKE MODE: After the air mode determines that there is a leak, use the smoke mode to find the leak.

Wide Range of Applications: Free to choose Air/Smoke method to find leaks.

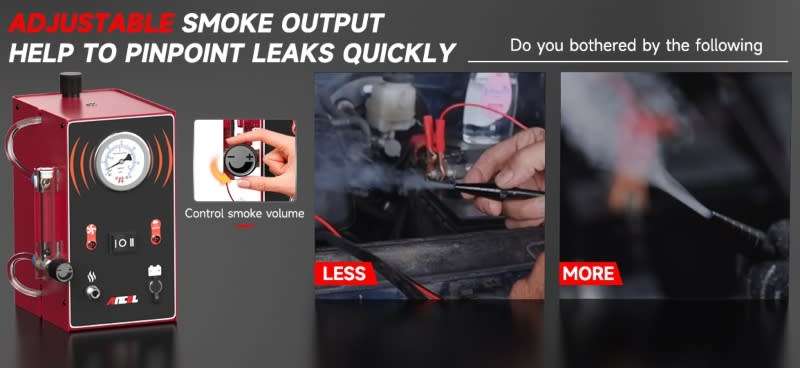

Adjustable Smoke Output Help to Pinpoint Leaks Quick:
