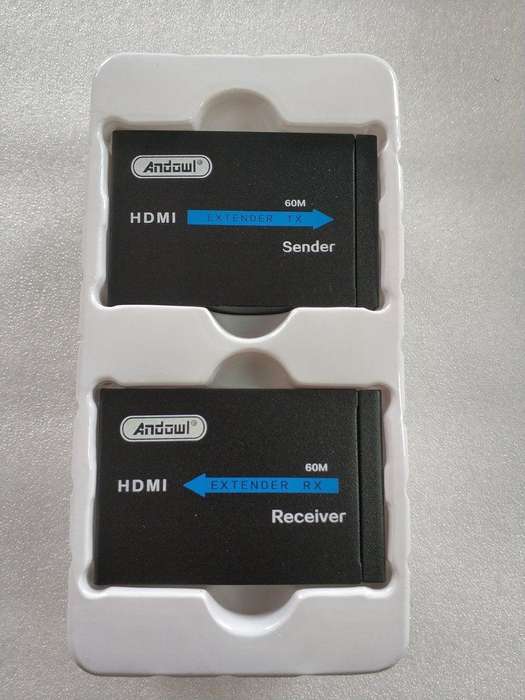

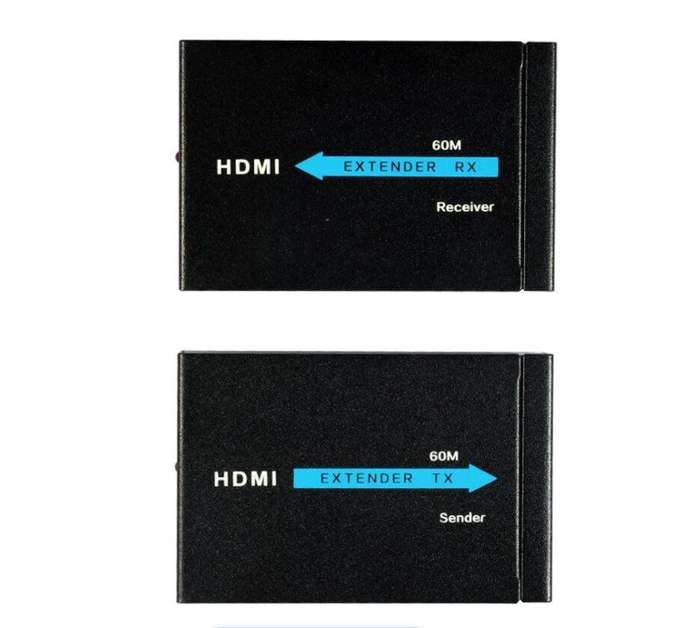

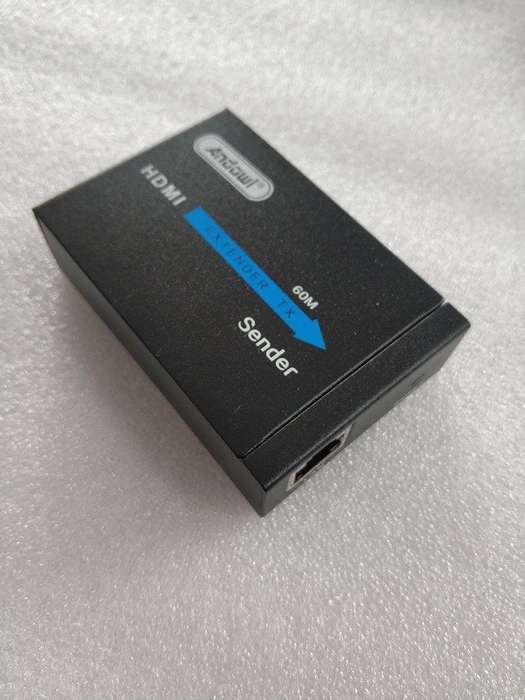

This extender includes a transmitter and a receiver. The transmitter combines HDMI video, audio and control signal, then transmits them through single CAT5e/CAT6 cable. The receiver get the signal, then separate signal and rebuild video, audio and control ones, outputting through HDMI interfaces. This product supports USB HID mouse and keyboard, remote IR (RX->TX) and bi-direction RS232 URAT. This product can achieve all functions through the single CAT5/CAT6 e cable. The extending distance is 60 meters for 1080P 60Hz HD signal
Features:
HDMI over CAT5E/CAT6 extender is a tool for extending your HDMI signal over long distances to a compatible display
Support audio formats, Dolby True HD, DTS-master etc.
Support 3D signals (7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom etc.
When transmitting a signal in 1080P resolution the CAT5E/CAT6 operating distance is 60 meters
Simple deign, plug -in- play, no need to install other software
Support EDID call back
Support CEC pass through
VESA DDC and Hot Plug Detect (HPD)
3.8Khz remote IR (RX->TX)
Bi-direction RS232 UART communication
Compatible with HDCP 1.2
Compatible DVI 1.0
Support cascade to enhance extending distance
Industrial metal case, easy to install
With compact portable design
Specifications:
Power : Video Bandwidth: maximum TMDS clock frequency 225MHZ, 6.75Gbps
Resolution and distance : 1080P 170ft (60 meters)-CAT5e / 270ft (80 meters)-CAT6 720P/1080i 270ft (80 meters)-CAT5e / 330ft (100 meters)-CAT6
Audio Formats : 8-channel, support Dolby TrueHD and DTS Master
TMDS Input Signal : 1.2 Volts (point to point)
DDC Input Signal : 5 Volts (point to point)
Indicator : power-green, video link-yellow
HD Interface Standard : HDMI 1.3 standard (HDMI 1.4 3D function), HDCP1.2, support CEC, EDID
URAT Data Rate : Support 4800bps, 9600bps, 19200bps, 39400bps, 57600bps
Remote IR : 35KHz
USB Interface : USB HID compatible devices, plug & play, no need to install software
Temperature Range : 0 ~ 40 degree centigrade (operation), -20 ~ 60 degree centigrade (stock)
Color : Black
Item size : Transmitter (11.0 * 8.1 * 2.8cm/4.3 * 3.1 * 1.1inch), Receiver (11.0 * 8.1 * 2.8 cm/4.3 * 3.1 * 1.1inch)
Package size : 22.0 * 18.0 * 5.0cm/8.7 * 7.0 * 1.97inch
Item weight : Transmitter 232g, Receiver
Package weight : 878g

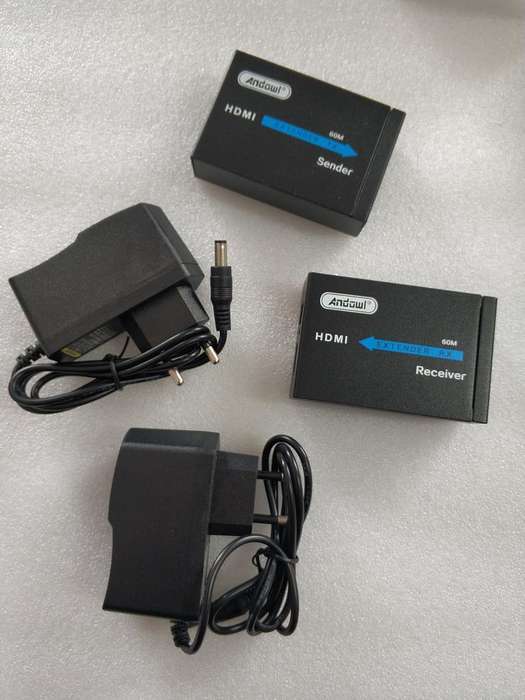

Package Contents:
1 x Transmitter
1 x Receiver
1 x English User Manual
