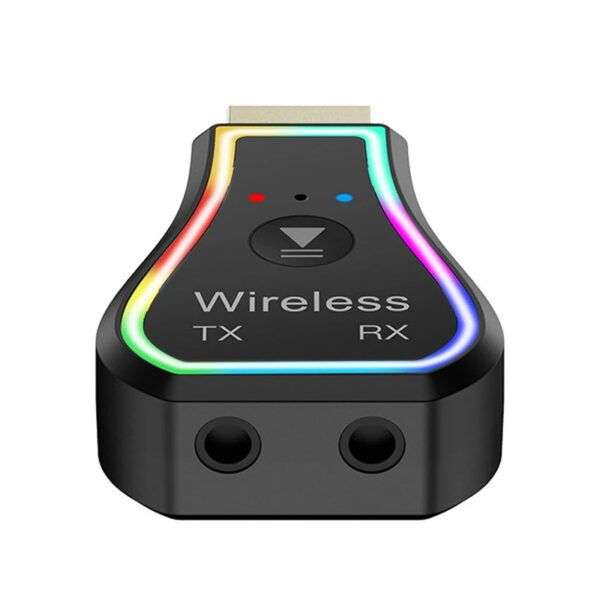

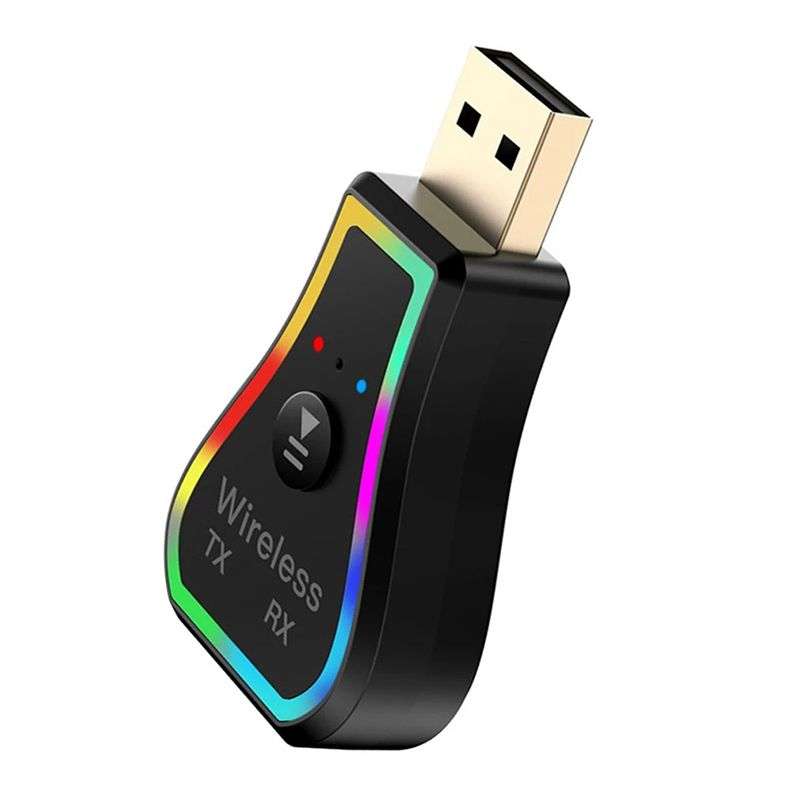

Andowl Q-TR31 Wireless USB Transmitter

Operation instructions:

TX Transmitter Mode:

1. Toggle switch to TX side.
2. Connect the adapter to the USB port, the red light flashes.
3. Use a 3.5mm audio cable to connect the audio equipment (for example, TV) and the TX port of the adapter.
4. Turn on the Bluetooth headset or other Bluetooth device, your audio equipment will pair automatically and the red light will stay on after successful pairing.

TX Transmitter mode on PC:

1. Toggle switch to TX side.
2. Connect the adapter to the USB port of the computer, the red light flashes.
3. Turn on the Bluetooth headset or other Bluetooth device, the computer will automatically pair with it, and the red light will stay on after successful pairing.

RX Receiver Mode:

1. Toggle switch to RX side.
2. Connect the adapter to the USB port, the blue light flashes.
3. Use a 3.5mm audio cable to connect the audio equipment (for example, car stereo) and the RX port of the adapter.
4. Search for M11 in your phone's Bluetooth list to pair, and the blue light will stay on after pairing is successful.

Specifications:

- Material: ABS
- Color: Black
- Features Colorful LED Light
- Bluetooth Version: 5.0
- Bluetooth Distance: 10m
- Interface Type: 3.5mm / USB
- Bluetooth Mode: Bluetooth Receive/Transmit
- Power Mode: USB
- Output Parameters: DC 5.0 / 2.1A

Note: Phone calls are not supported. A 3.5 mm audio cable is used for audio transmission. (except for computer use)

The package includes:
1 x USB Transmitter Receiver
1 x 3.5mm Audio Cable
1 x English User Manual
