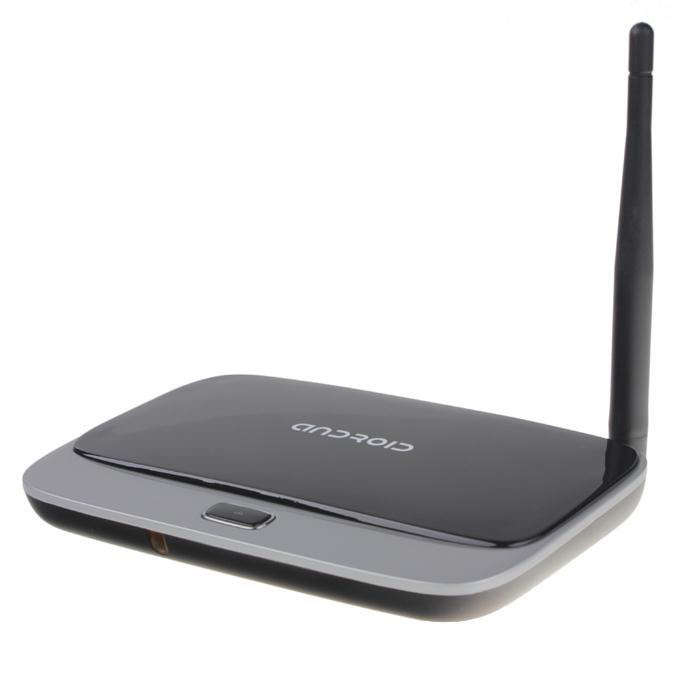

CS918 Q7 Quad Core 1GB/8GB XBMC Kodi 14.1 Fully Loaded Live TV RK3188 Android 4.4 Mini Smart Android TV Box Mini Smart PC
Operation System | Android4.4.2 (Latest OS) |
Chipset | RK3188T 28nm Cortex-A9 Quad core |
GPU | Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1 |
SDRAM | DDR3 1GB |
Nand Flash | 8GB Nand Flash |
Storage Extension | Support MicroSD(TF), Up to 32GB |
Network | 2.4GHZ WiFi 802.11 b/g/n, LAN 10/100M Base-T |
Module | Support BT4.0 Module |
Power Supply | Power Supply |
Interface | |
HDMI Out | 1 x HDMI(C type Female), HDMI1.4A Full HD 1920x1080P |
USB Port | 2 x USB Host, 1 x OTG(Micro USB) |
Data Output | 1 x SPDIF |
Card Reader | 1 x Micro SD card (TF card) reader |
AV Out | 1 x 3.5mm Headphone Jack |
Network | 1 x RJ45 LAN Port |
Power Supply | 1 x DC Jack |
Antenna | External WiFi antenna |
Media Parameter | |
Audio Container | Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc Audio formats. Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display |
Audio Out | HDMI Data Output |
Video Decoder | MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC 1920x1080P 60FPS |
Video Encoder | H.264,VP8,MVC(1080P) |
Resolution | Full HD1080P@30fps |
H.264 Data Rate | Up to 60Mbps |
Image browser | Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format. Maximum resolution up to 8192x8192 |
Text-Reading | Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(Depends on APK install) |
Software Extension | Support Google Play & APK install |
DLNA, Miracast Protocol | Support DLNA,Miracast Protocol |
Remote Control | Support Smart phone remote control, 2.4GHZ wireless air mouse/Remote controller |
IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK install) |
Offic Software | WORD/EXCEL/PDF (Depends on APK install) |
Others Parameters | |
Others Parameters | -10~40°C |
Storage Temperature | -20~50°C |
Humidity environment | 5%-90%(No condensation) |

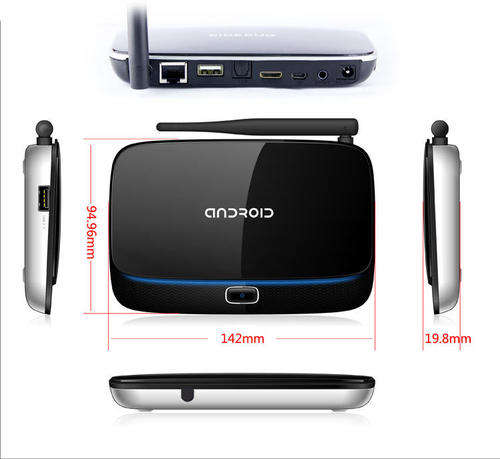

Package Dimension | 142.3*108.6*21mm |
