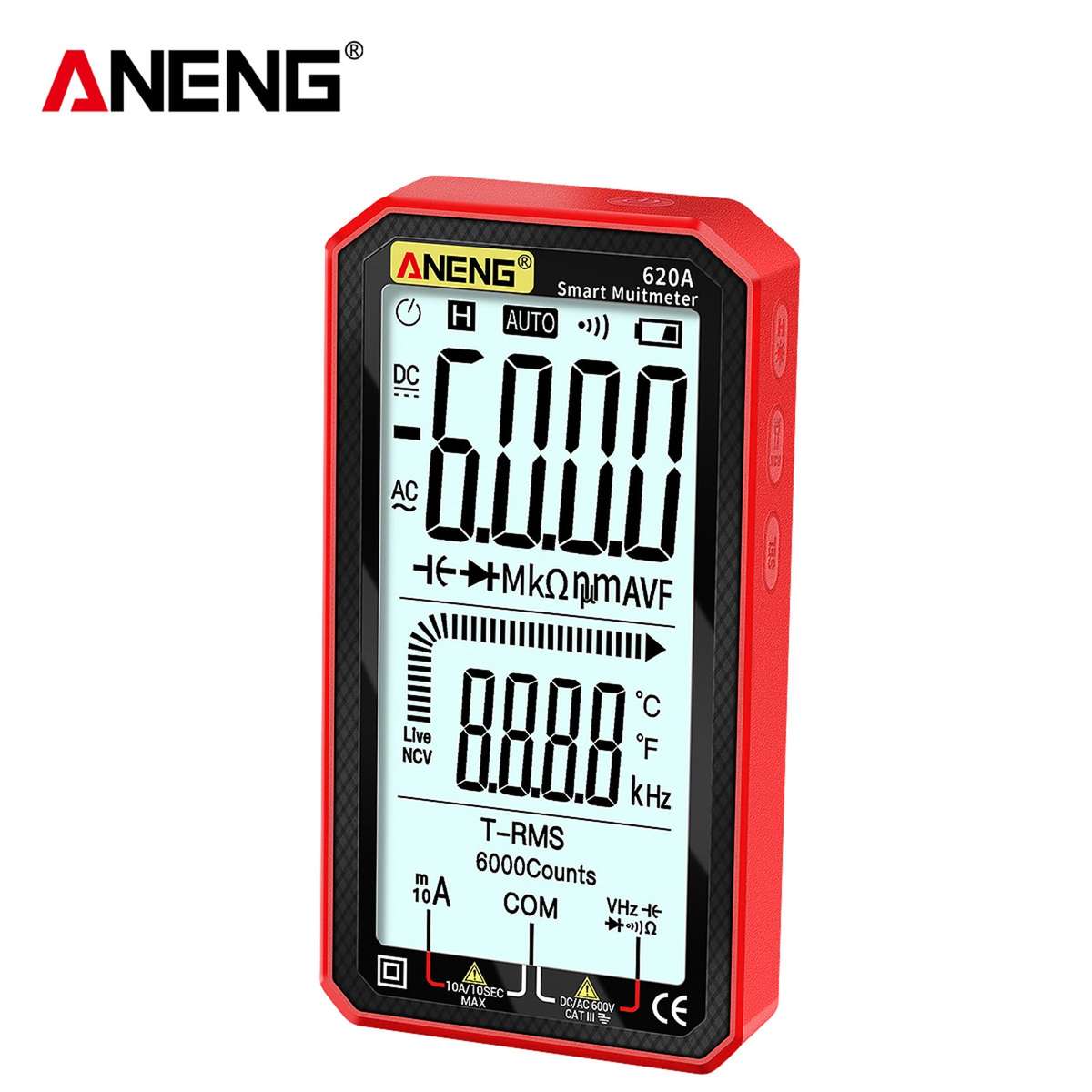

ANENG pocket multimeter features palm-size, 4.77-inch big LCD display, auto-ranging, true-RMS, overload protection, shockproof silicone cover, and audible NCV alarm. It is ultraportable for the maintenance of cars, electronics, home appliances, HVAC and more.
Features:MULTIMETER: Measures AC/DC current, AC/DC voltage, non-contact AC voltage (NCV) detection, live/zero line detection, resistance, diode, capacitance, temperature, and frequency.
LOUD BEEP: NCV sensor and live/zero line detector send out audible and visual alarm once AC voltage detected.

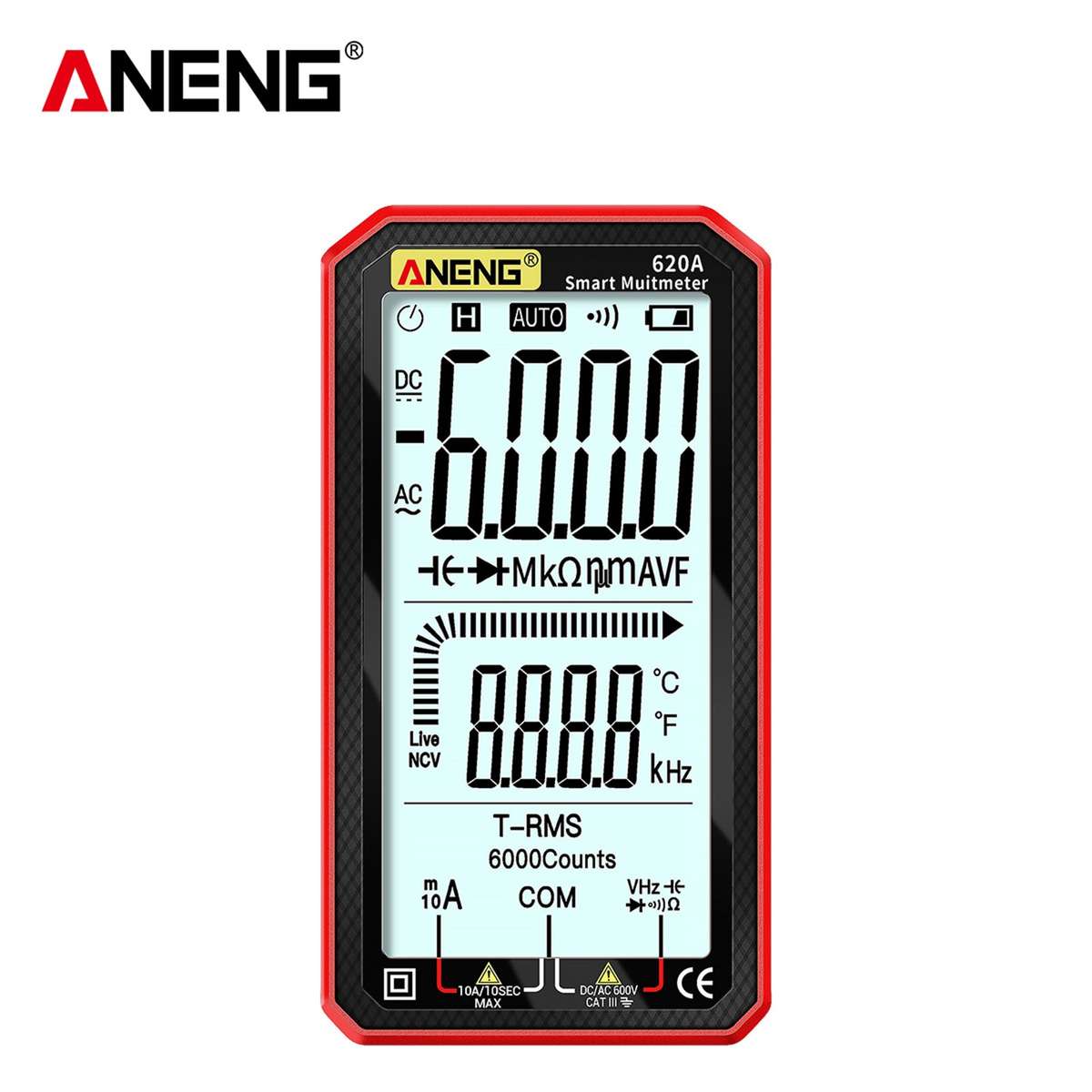

EASY TO READ: 4.77-inch LCD display with backlight enables you to view readings clearly even in the dim light.ￂﾠ
EASY TO USE: Offers you with auto-ranging and manual ranging mode for extremely simple using experience.
SAFE AND RELIABLE: Provided with overload protection and 1000V, 10A test leads, safe and reliable to use.
LONG-LASTING: Shockproof and non-slip silicone sheath effectively protects the unit from damage.
ULTRA PORTABLE: Measures in 5.6 by 3 by 0.9 inches, the palm-sized multimeter is small enough to be held in hand or put into pocket, easy to carry around.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.

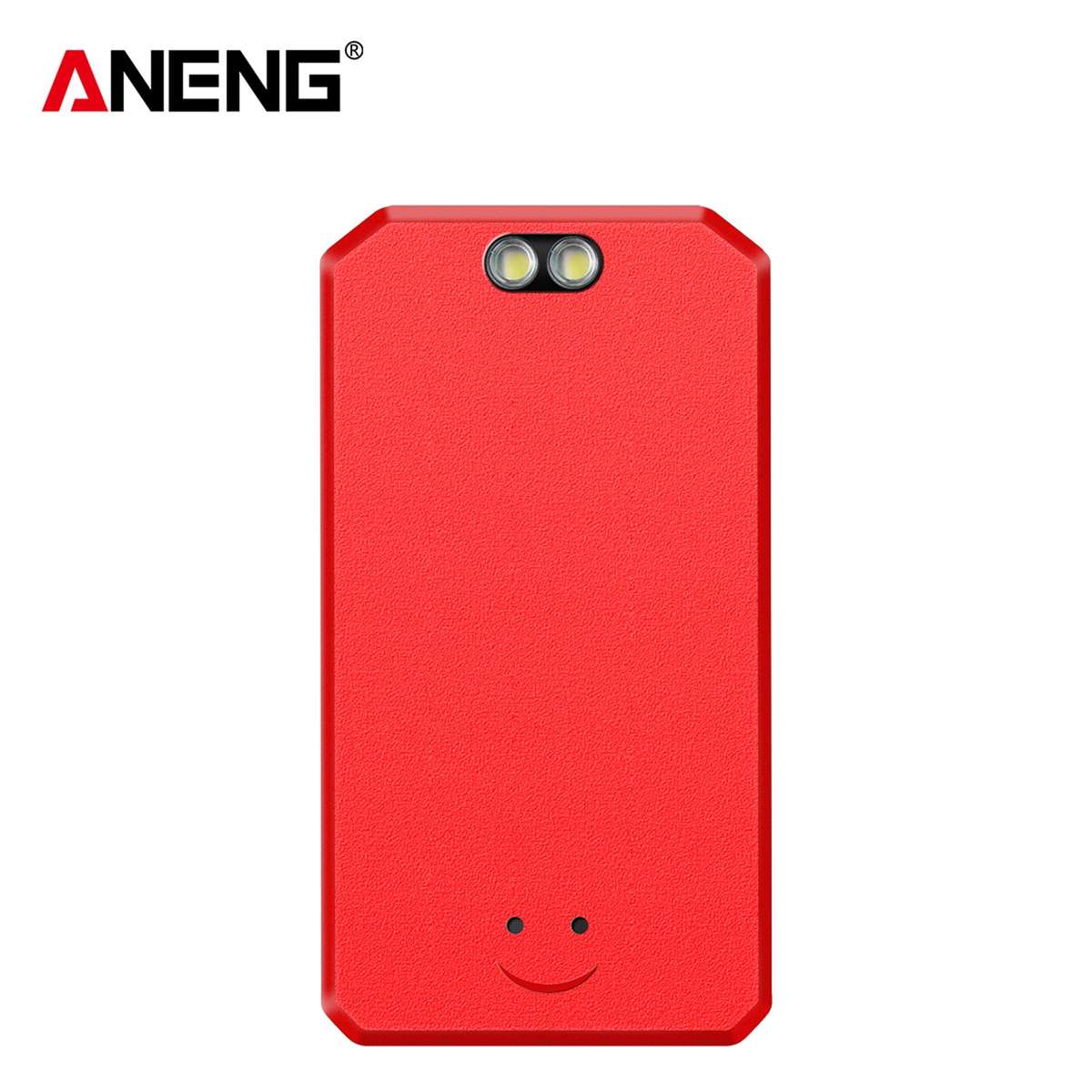

MORE FUNCTIONS: Features data hold, flashlight, Celsius/Fahrenheit degree, and more.
Note:*MUST read the user manual carefully before use for safety.
*Battery not included.
Parameters:| AC Current |
| Range | Resolution | Accuracy |
| 6000mA | 1mA | ￂﾱ (1.0% reading + 8 digits) |
| 10A | 0.01A |
| DC Current |
| 6000mA | 1mA | ￂﾱ (1.0% reading + 5 digits) |
| 10A | 0.01A |
| DC Voltage |
| 6V | 0.001V | ￂﾱ (0.5% reading + 3 digits) |
| 60V | 0.01V |
| 600V | 0.1V |
| AC Voltage |
| 6V | 0.001V | ￂﾱ (0.8% reading + 5 digits)C |
| 60V | 0.01V |
| 600V | 0.1V |
| Continuity (overload protection: 600V DC/AC, True-RMS) |
| - | 0.1ￎﾩ | If resistance of the line being measured is less than 50ￎﾩ, built-in buzzer will make continuous alarming sounds. |
| Resistance |
| 600ￎﾩ | 0.1ￎﾩ | ￂﾱ (0.8% reading + 3 digits) |
| 6kￎﾩ | 0.001kￎﾩ |
| 60kￎﾩ | 0.01kￎﾩ |
| 600kￎﾩ | 0.1kￎﾩ |
| 6Mￎﾩ | 0.001Mￎﾩ |
| 60Mￎﾩ | 0.01Mￎﾩ |
Diode Test
(Testing Environment
Testing current: about 1mA;
Open circuit voltage: about 2.8V
The display shows an approximation of forward voltage drop of diode.) |
| - | 1V | 0.001V |
| Capacitance |
| 6nF | 0.001nF | ￂﾱ (10% reading + 40 digits) |
| 600nF | 0.1nF | ￂﾱ (2.5% reading + 20 digits) |
| 6ￎﾼF | 0.001ￎﾼF |
| 60ￎﾼF | 0.01ￎﾼF |
| 600ￎﾼF | 0.1ￎﾼF |
| 6mF | 1ￎﾼF |
| 60mF | 0.01mF |
| Temperature |
| -40 ~ 1000 ￢ﾄﾃ | 1￢ﾄﾃ | ￂﾱ (1% reading + 3￢ﾄﾃ) |
| -40 ~ 1832￢ﾄﾉ | 1￢ﾄﾉ | ￂﾱ (1% reading + 3￢ﾄﾉ) |
Frequency (via gear A)
Input signal range: ￢ﾉﾥ 1/4 Full-scale value, 2A AC Current(True-RMS) |
| 100.0Hz | 0.1Hz | ￂﾱ (1.0% reading + 5 digits) |
| 1000Hz | 1Hz |
Frequency (via gear V)
Input signal range: ￢ﾉﾥ 0.8V AC Voltage(True-RMS) |
| 100.0Hz | 0.1Hz | ￂﾱ (1.0% reading + 5 digits) |
| 1000Hz | 1Hz |
Specifications:Brand: ANENG
Material: ABS
Color: Black/Red(optional)
Display: LCD
Max. Display Value: 6000 counts
Automatic Shutdown Time: 15 minutes
Maximum Operating Height: 2000 meters
Battery Type: AAA alkaline battery(2pcs)(NOT INCLUDED)
Item Size: 14.27*7.74*2.38cm / 5.61*3.04*0.93in
Item Weight: 183.5g / 6.47oz
Package Size: 17*12.7*4.5cm / 6.69*5*1.77in
Package Weight: 335g / 11.81oz

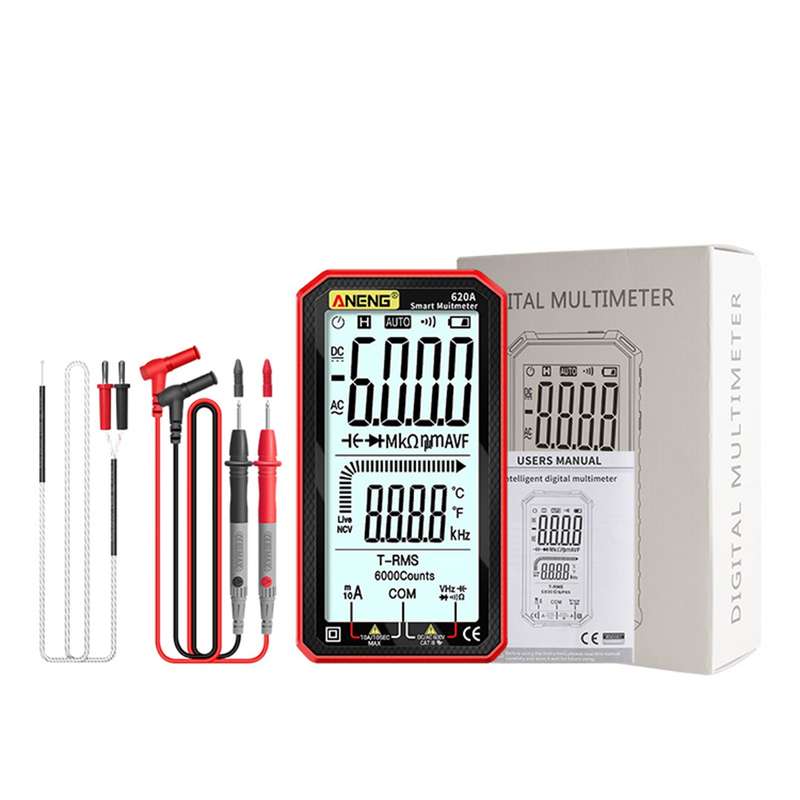

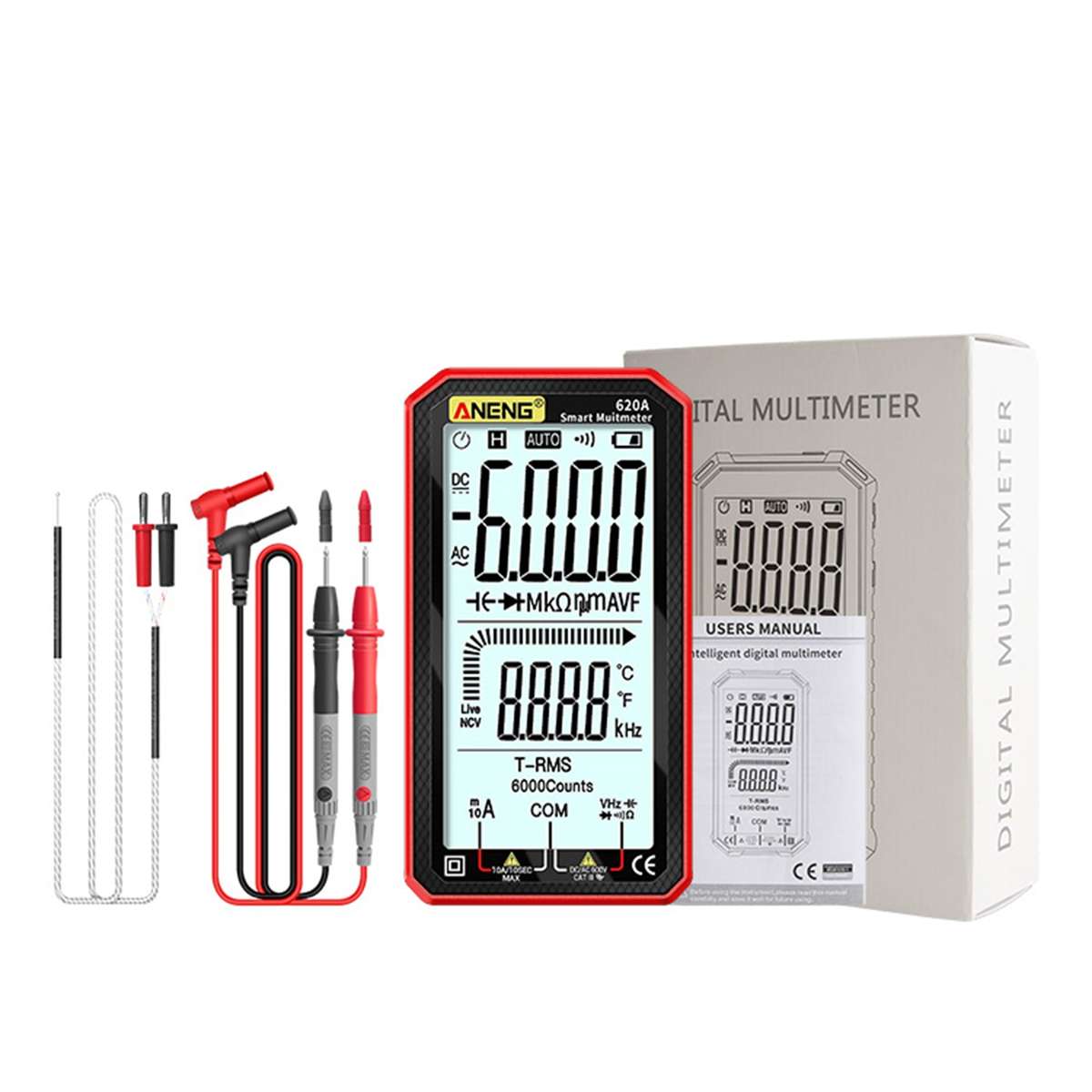

Packing List:1 * Multimeter
2 * Test Lead
1 * Thermocouple
1 * User Manual
