The 4000counts is a pocket-sized 3 3/4-digit automatic digital instrument with stable performance, high precision, high reliability, clear reading and overload protection. It is a superior tool and instrument, laboratory, factory, radio enthusiasts and the ideal tool for the family.
ￂﾠ
Features:
The 4000counts is a pocket-sized 3 3/4-digit automatic digital instrument with stable performance, high precision, high reliability, clear reading and overload protection.ￂﾠ
Driven by AAA 1.5V battery, the instrument adopts LCD display and adopts boost power supply.ￂﾠ
Even at the edge of 2.3V low battery, it can ensure the ultra-high brightness of backlight and flashlight.ￂﾠ
This watch is easy to carry and is a meter that users like very much.ￂﾠ
The backlight can be turned on and off automatically after 15 seconds.
This series of instruments can be used to measure DC voltage and AC voltage, AC current 600A, resistance, continuity test, frequency measurement and true RMS.
It is a superior tool and instrument, laboratory, factory, radio enthusiasts and the ideal tool for the family.
Specifications:
Material:ABS
Color:Blue Red Orange Black(Optional)
General Characteristics

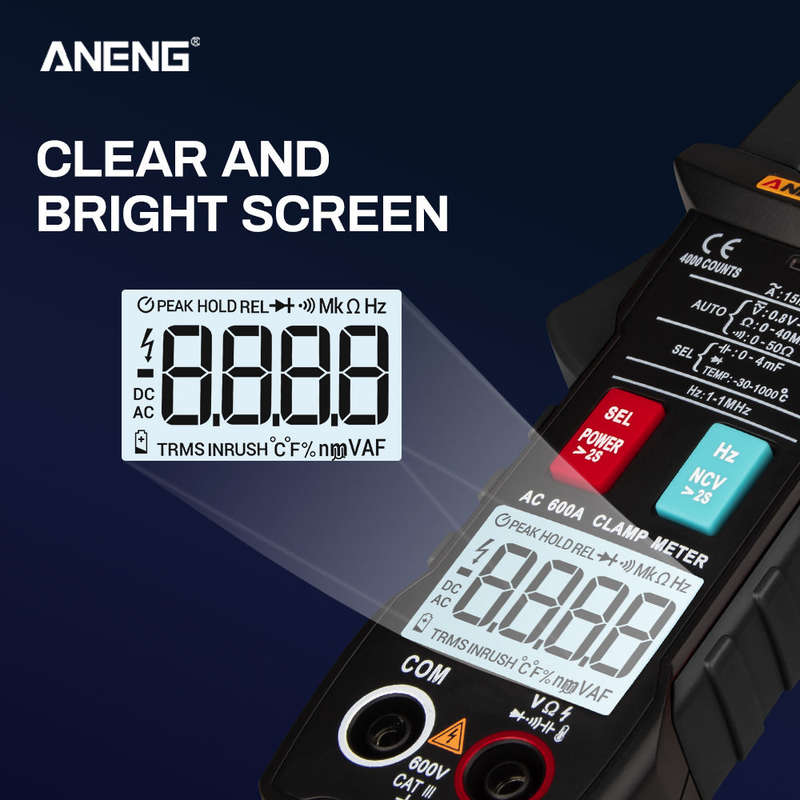

1. Display: liquid crystal display (LCD)ﾼﾛ
2. Maximum display: 4000 (3 3/4) bit automatic polarity display;
3. Measurement method: double integral A/D conversion;
4. Sampling rate: about 3 times per second;
5. Over range display: The highest position shows ￢ﾀﾜOL￢ﾀﾝ;
6. Low voltage displayﾼﾚsymbol appearsﾼﾛ
7. Working environmentﾼﾚ(0ﾽﾞ40)￢ﾄﾃﾼﾌrelative humidityﾼﾜ80%ﾼﾛ
8. Power: AAA 1.5V battery ﾼﾈBatteries excludedﾼﾉ
9. Volume (size): 170ￃﾗ65ￃﾗ30mm (LￃﾗWￃﾗH)ﾼﾛ
10. Weightﾼﾚabout160gﾼﾈBatteries excluded 1.5V batteryﾼﾉﾼﾛ
11. Attachment: One instruction manual, one outer packaging box, one pair of test leads, Thermocouple, Portable storage bag
Functional parameters
DC voltage DCV :yes
AC voltage ACV :yes
AC current ACA :yes
Capacitance measurement :yes
Resistor / On-Off Test :yes
Diode measurement:yesﾼﾈDiode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3Vﾼﾉ
Buzzer:yes ﾼﾈThe buzzer sounds long and the resistance of the test is less than (50ￂﾱ20) ￎﾩ.ￂﾠ auto recognition ﾼﾈAUTOﾼﾉ
temperature measurement :yes
Frequency :yes
NCV :yes
Zero line / Fire line test :yes
Full unit symbol :yes
Backlight manual/Auto off :yes
True RMS measurement :yes
Flashlight lighting :yes
HOLD :yes
Technical Specifications
DC voltage (DCV):4V-40V-400V-600Vￂﾠ ￂﾱ(0.5%+3)
AC voltage (ACV): 4V-40V-400V-600V ￂﾱ(1%+3)
AC current(ACA):0.1A-4A-40A-400A-600A ￂﾱ(2.5%+8)
Resistance: 4kￎﾩ-40kￎﾩ-400kￎﾩ-4Mￎﾩ-40Mￎﾩￂﾠ ￂﾱ(0.5%+3)
Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40kHz-400kHz-1MHz ￂﾱ(0.1%+2)
Capacitance measurement:4nF-40nF-400nF-4ￎﾼF-40ￎﾼF-400ￎﾼF-4mF ￂﾱ(2%+5)
temperature measurement : -30~1000￢ﾄﾃ / 22~1832￢ﾄﾉ ￂﾱ(2.5%+5)
Notes:
1. When measuring voltage, please do not input the limit voltage exceeding the effective value of DC 1000V or AC 750V;
The voltage belowￂﾠ
2.36V is a safe voltage. When measuring higher than 36V DC and 25V AC voltage, check whether the test leads are in reliable contact, are connected correctly, and are well insulated to avoid electric shock;
3. When changing functions and ranges, the test leads should leave the test point..
Package list:

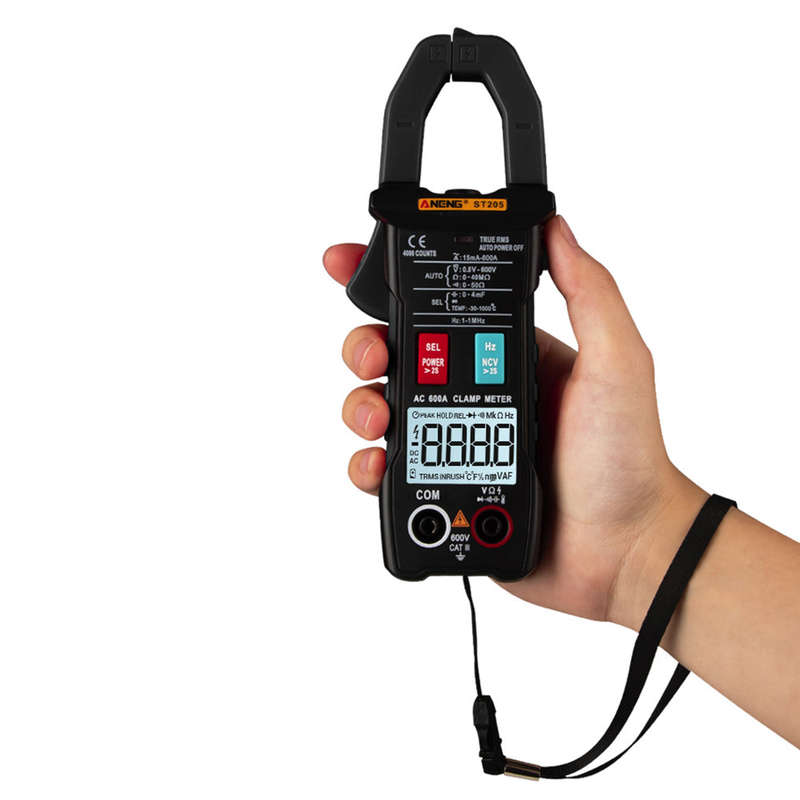

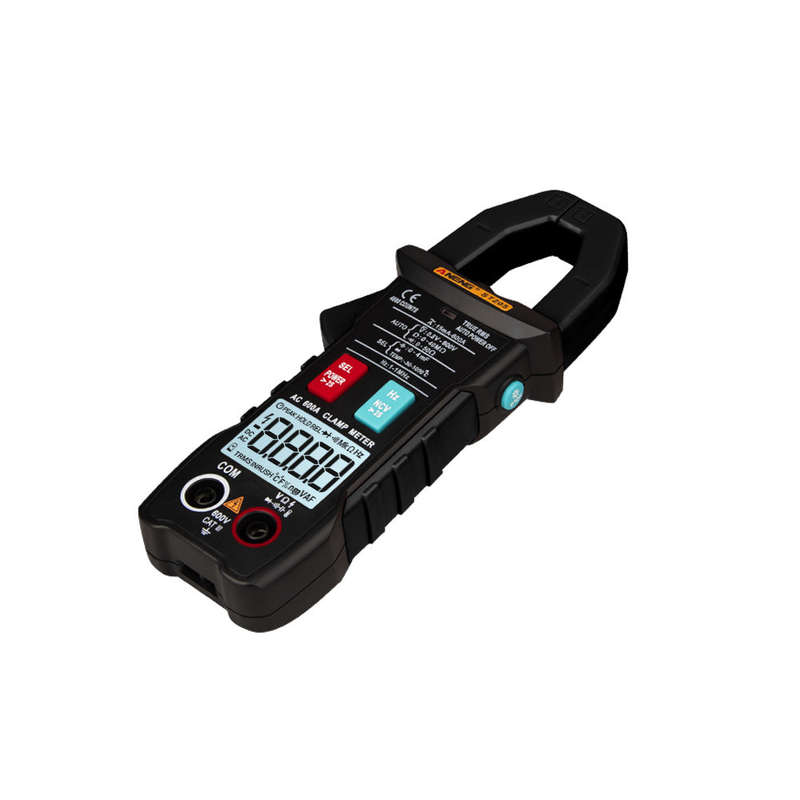

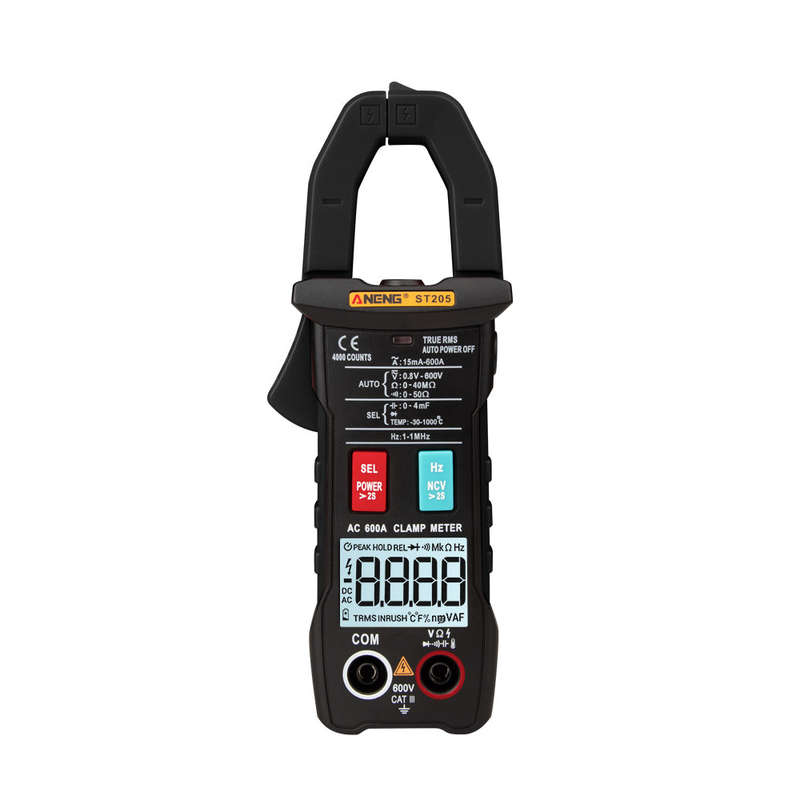

1 *ANENG ST205 Clamp Meter
1 * English User Manual
1 *Outer Packaging Box
1 * Pair of Test Leads
1 * Portable Storage Bag
