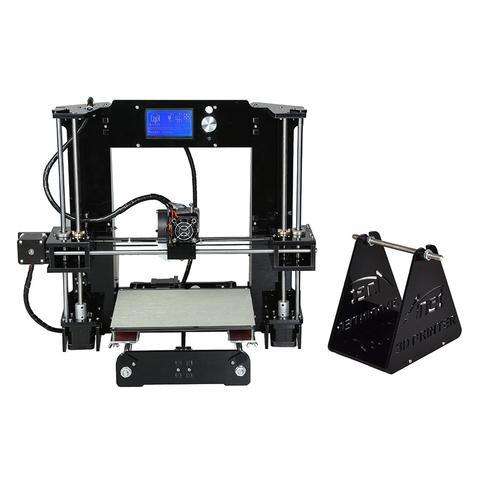

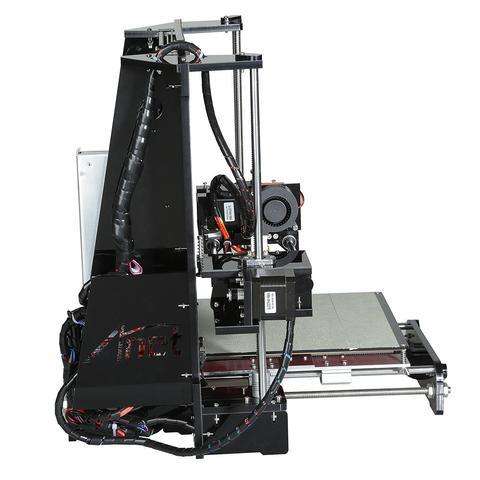

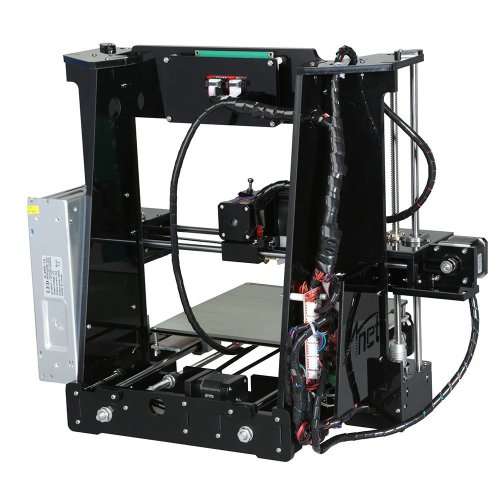

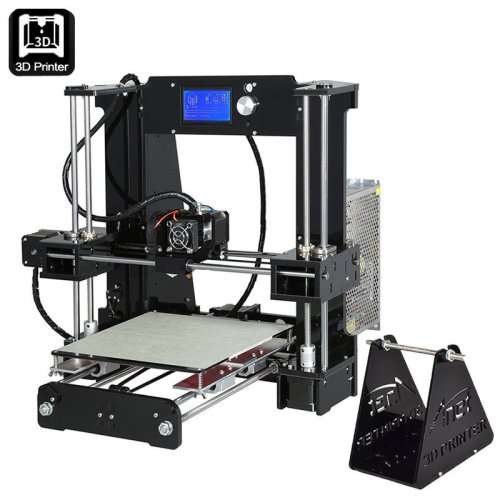

ANET A6 DIY 3D PRINTER KIT - METAL + ACRYLIC FRAME, MULTIPLE FILAMENTS, 100MM PER SECOND PRINT SPEED, WINDOWS MAC + LINUX SUPPORT
General
Frame Material: Acrylic + Metal
LCD Monitor Screen
8-mm-thick Laser Cut Acrylic Frame
Filament Materials: LA, ABS, Wood-Polymer, Nylon, Flexible PLA and PVA
Filament Diameter: 1.75mm
XY Axis Positioning Accuracy: 0.012mm
Z Axis Positioning Accuracy: 0.004mm
Extruder Quantity: 1
Print Color Single Color
Extruder Diamiter: 0.4mm (Custom Options: 0.5/0.3/0.2mm)
Print Precision: 0.1 to 0.4MM
Layer Resolution: 0.1MM
Printing Speed: 100MM/S
Maximum Print Size: 220x220x250MM
Nozzle Temperature Recommended: 210 degrees Celsius, Maximum 250 degrees Celsius
Ambient Temperature Recommended: around 25 degrees Celsius
Heating Plate Temperature: 50 to 110 degrees Celsius(Adjustable)
Heating Plate Material: Aluminum
Data Format: STL, G-Code
Compatible Computer OS: XP, Vista, Win7, Win8, Win10, Linux, MAC
3D Printing Software Repetier-Host
Power Supply: DC 12V/20A
Ports
USB Line In
Power Port
Dimensions
Main Product Dimensions: Approx 390x 470 x 390 mm (L x W x D)
Main Product Weight: about 9000g
Package Contents

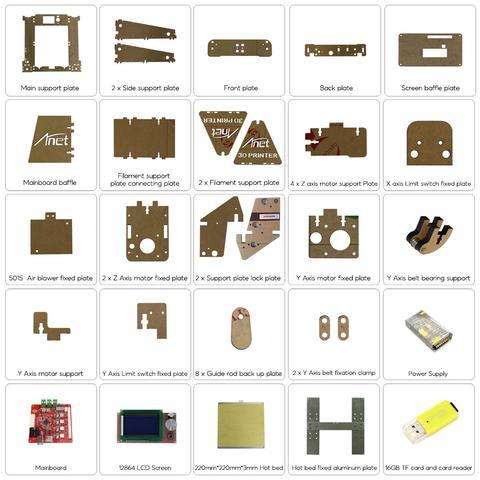

Main support plate
2 x Side support plate
Front plate
Back plate
Screen Back plate
Mainboard back plate
filament support plate
connecting plate
2 x filament support plate
4 x Z axis motor support plate
X axis limit switch fixed plate
5015 fan fixed plate
2 x Z axis motor fiex plate
2 x Support plate lock plate

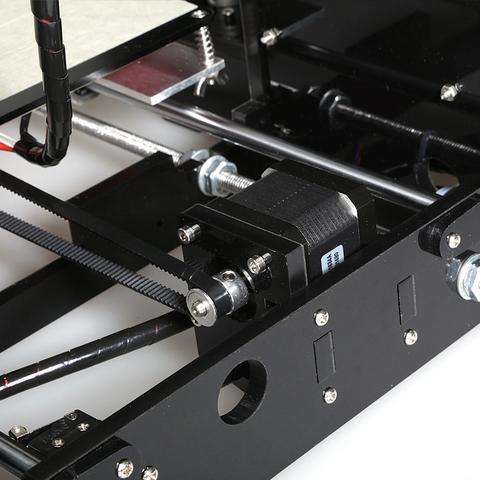

Y Axis motor fixed plate
Y Axis belt bearing support
Y Axis motor support
Y Axis limit switch fixed plate
8 x Guide rod back up plate
Power supply unit
Mainboard

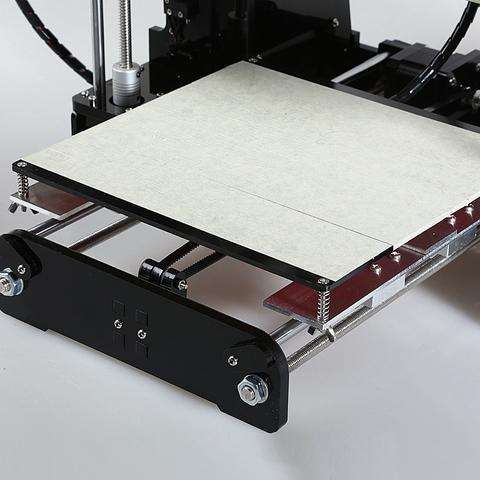

220x220x3mm Hot Bed
Hot Bet fixed aluminum plate
16GB micro SD Card + Reader

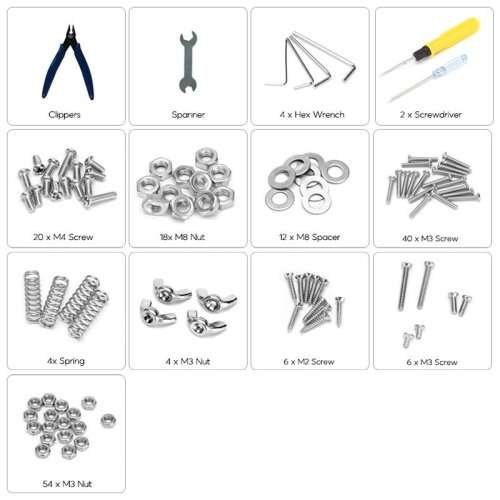

Clippers
Spanner
4 x Hex Wrench
2X Screwdriver
20 x M4 bolts
18x M8 Nut
12x M8 Spacer
40x M3 Bolt
4x Spring
4x M3 Wing Nut
6x M3 Bolt
54x M3 Nut

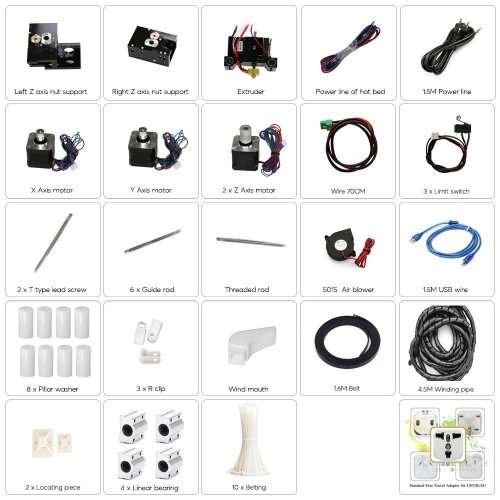

Left Z axis nut support
Right Z axis nut support
Extruder
Power line of hot bed
1.5M power lead
X Axis motor
Y Axis motor
2x Z Axis motor
70Cm wire
3x Limit switch
2x t type Lead Screw
6 x Guide Rod
Threaded Rod
5015 Fan
1.5M USB Cable
8x Pillar Washer
3 x R Clip
Wind mouth
1.6M Belt
4.5M Winding pipe
2x Locating piece
4 x Linear bearing
10 Zip ties
