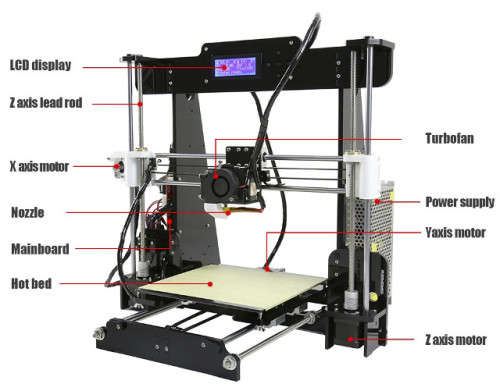

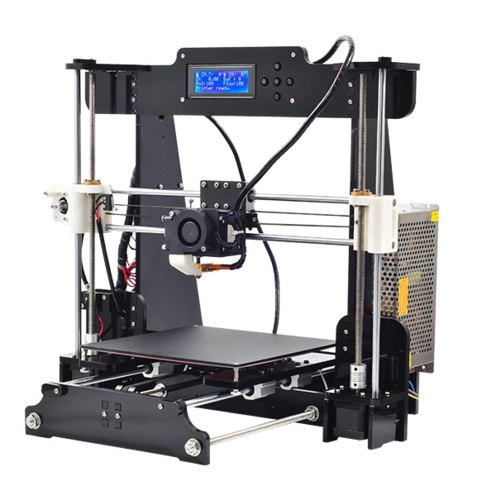

Anet A8 - 3D Printer - Prusa i3 - DIY KIT
with SD Card slot - Large Printing Area.
| Specifications | |
| Configurations | |
| Frame Material | Acrylic + Lead Screw |
| SD-Card Slot | Yes |
| LCD Monitor Screen | Yes |
| XY Axis Positioning Accuracy | 0.012MM |
| Z Axis Positioning Accuracy | 0.004MM |
| Extruder Quantity | 1 |
| Print Color | Single Color |
| Extruder Dia. | 0.4MM (Custom Options: 0.5/0.3/0.2MM) |
| Print Precision | 0.1-0.4MM |
| Layer Resolution | 0.1MM |
| Printing Speed | 100MM/S |
| Maximum Print Size | 220*220*230MM |
| Nozzle Temperature | Recommended: 210¿, Maximum 250 ¿ |
| Ambient Temperature | Recommended: ≥ 25 ¿ |
| Heating Plate Temperature | 50-110 ¿ (Adjustable) |
| Heating Plate Material | Aluminum |
| Filament Materials | PLA, ABS, HIPS, WOOD, PVA, Nylon |
| Filament Dia. | 1.75MM |
| Data Format | STL, G-Code |
| Data Input | SD Card or USB Transfer Line |
| Compatible Computer OS | XP, Vista, Win7, Win8, Win10, Linux, MAC |
| 3D Printing Software | Repetier-Host |
| Power Supply | DC 12V/20A |
| Packaging Information | |
| Machine Size | 500*400*450MM |
| Net Weight of 3D Printer | 8KGS |
| Gross weight | 9KGS |
| Packing Way | Knocked down and packed in a box. |
| Packing Size | 510*310*208MM |
Installation videos:
Debugging electronic components
The Newest Anet 3D Printer A8 Assembly Video 1
The Newest Anet A8 3D Printer Assembly Video 2
Anet 3D Printer A8 Debugging Video
Here is the instruction manual (← click here) for your reference.
Package included:
1 x 3D Printer DIY Kit Complete with Filament Stand BUT Without Filament
