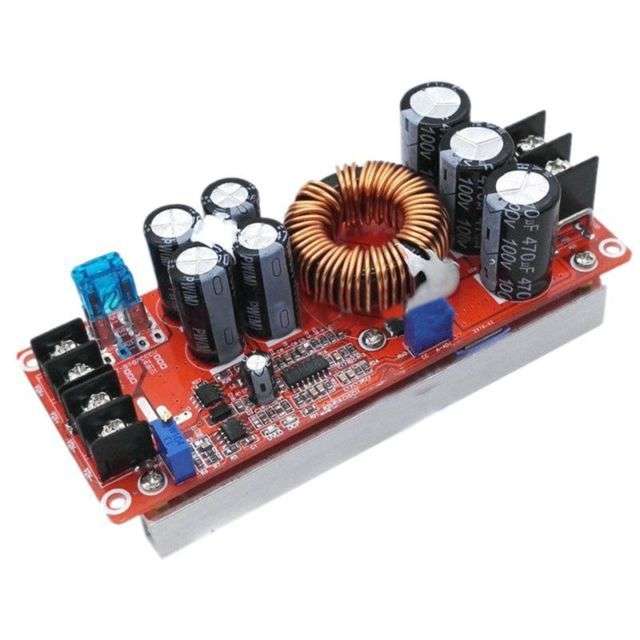

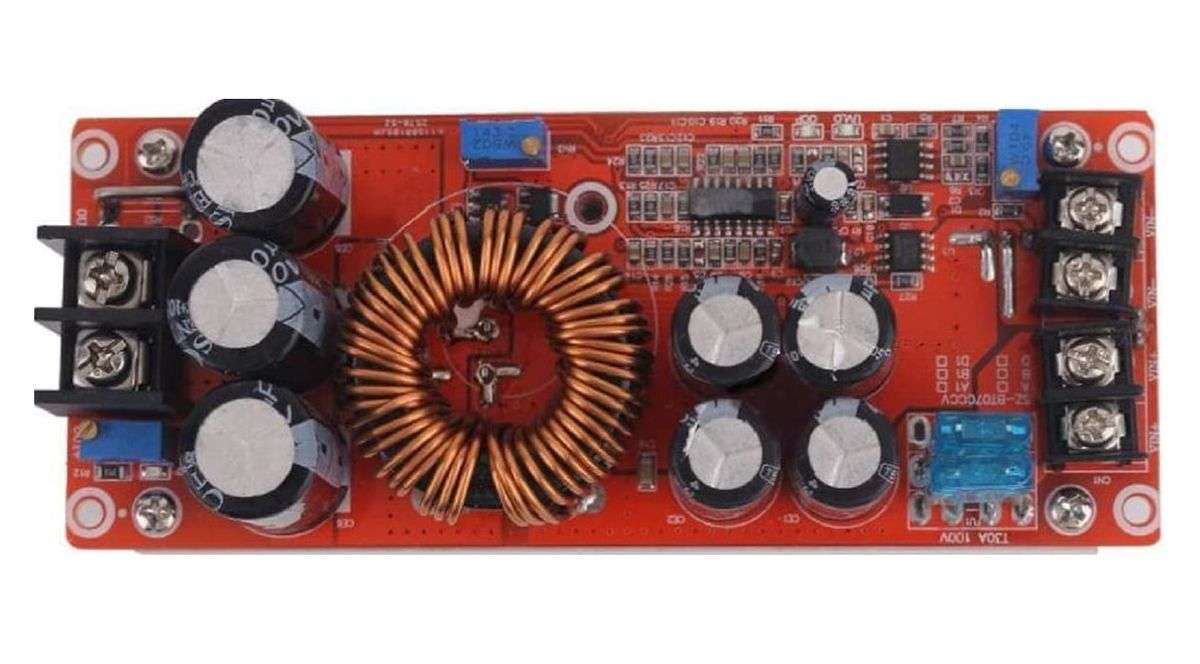

ANT-DC2DC1200W, 20A DC-DC Step Up Boost Converter Power Supply Module

ANT-DC1200W20ADC, 20A DC-DC Step Up Boost Converter Power Supply Module 8-60V to12-80V With Heat SinkDescription:Input voltage: 8-60VInput Current: 20AQuiescent current: 15mA (12V liter 20V, the output voltage, the higher thecurrent will increase too quiet)Output voltage: 12-80V continuously adjustableOutput Current: 20A MAX Over 15A, please enhance heat dissipation (input, outputpressure related, the greater the pressure the smaller the output current)Constant Range: 0.5-20AOutput Power:Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200WIf you need more power, you can use two modules in parallel, such as the outputto 30A, two modules can be used in parallel,The current per module can be adjusted to 15A.Working temperature: -40 to + 85 degrees (ambient temperature is too high,please enhance heat dissipation)Operating frequency: 150KHzConversion efficiency: up to 95% (efficiency and input and output voltage,current, pressure related)Overcurrent protection: Yes (with reduced flow adjustment, adjustable outputcurrent limit, current exceeds the current limit, the output current isautomatically reduced to a minimum 5A, vary according to the nature of the loadcurrent will be.)Short circuit protection: Yes (input 20A fuse) double short circuit protection,the use of more security.Input reverse polarity protection: None, (if necessary, please enter the stringinto the diode)Output Counter filling: Yes, for charging plus blocking diode is not required.Installation: four 3mm screwsConnection: solderless terminals outputModule dimensions:116x52x15mm
