The Antec CSK1000 PRO ATX3.1 is more than a power supply. It's the electrical backbone of your high-performance PC, engineered with precision to support next-generation systems with unwavering reliability and operational efficiency. Drawing from Antec's legacy of innovation, trusted by builders and gamers alike, the Antec CSK1000 PRO is designed to handle the demands of modern computing environments with intelligence, versatility, and confidence.
At its core lies a 1000W continuous power output, certified under 80 PLUS® Bronze standards to deliver up to 90% efficiency under typical loads. This translates into reduced energy consumption, lower thermal output, and ultimately, a more stable platform for your most intensive taskswhether you're rendering large-scale assets, deep into a gaming session, or running demanding productivity suites.
The CSK1000 PRO is fully ATX 3.1 certified, meeting the latest Intel power delivery specifications. It also introduces support for PCIe 5.1, with a dedicated 12V-2x6 connector (capable of delivering up to 600W) designed to power the newest generation of graphics cards, including the NVIDIA® GeForce RTX 40 Series. This forward-compatible approach makes it an ideal choice for users building today with tomorrow in mind.
The semi-modular layout gives you the flexibility to customise cable routing based on your build, improving airflow and minimising clutter. Pre-attached essential cables reduce setup time, while detachable connectors provide additional configuration freedom. The result is a cleaner, more breathable system interior, particularly valuable for airflow-optimised cases and minimalist builds.

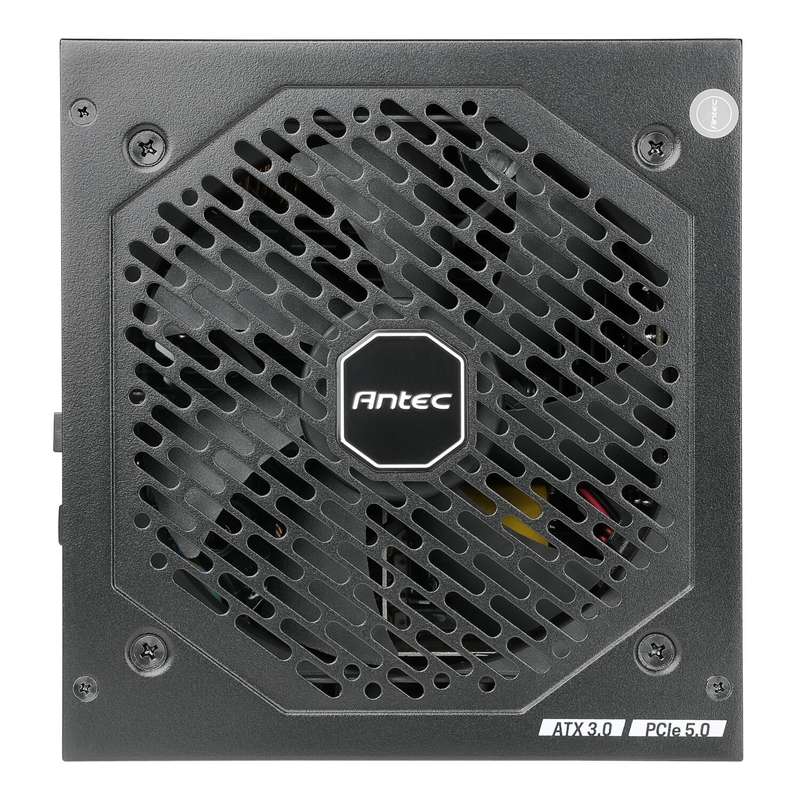

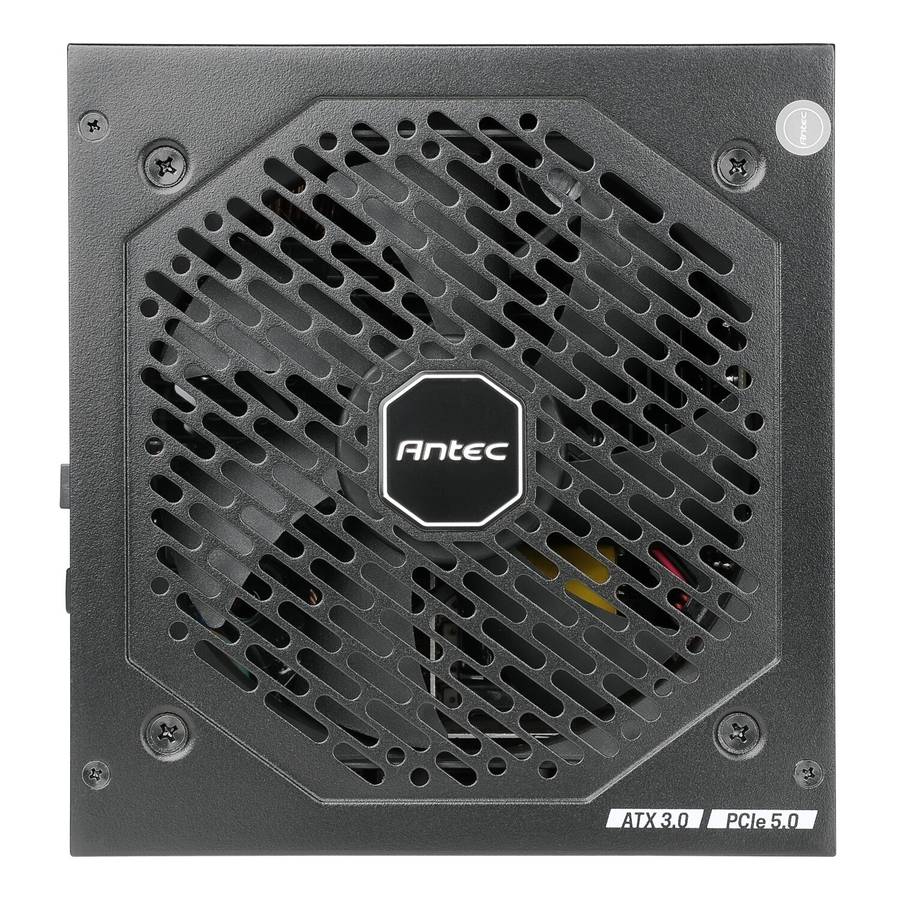

Engineered for silence as much as performance, the Antec CSK1000 PRO features a 120mm silent fan governed by Antec's proprietary Thermal Manager system. This intelligent fan control algorithm adjusts speed in real-time based on system load and temperature, delivering the cooling you need without excessive noise, perfect for both high-performance gaming environments and creative workstations where acoustic balance is key.
Underpinning it all is CircuitShield, Antec's comprehensive suite of industrial-grade protections. From Over Voltage Protection (OVP) and Over Temperature Protection (OTP) to Short Circuit and Surge Protection (SCP and SIP), the Antec CSK1000 PRO actively defends both itself and your system components against irregularities and power anomalies.
Compact in size yet robust in output, the 140mm chassis ensures compatibility with a wide range of enclosures, giving builders the freedom to design without compromise. Every detailfrom the clean cable layout to the reinforced componentsis a reflection of Antec's commitment to quality, dependability, and purposeful engineering.
For those seeking a PSU that matches technical excellence with system-level harmony, the Antec CSK1000 PRO ATX3.1 is a power solution you can build around, with assurance.
FEATURES
1000W continuous power delivery with high-load stability
Certified ATX 3.1 for modern power requirements and power excursion management
PCIe 5.1 ready with 12V-2x6 (600W) connector for latest GPU standards
80 PLUS® Bronze Certified (up to 90% efficiency at typical loads)
Semi-modular layout for improved cable management and airflow
120mm low-noise fan with intelligent thermal control (Thermal Manager)
Industrial-grade CircuitShield protection: OVP, OCP, OTP, OPP, SCP, SIP, NLO
Five-year warranty backed by Antec's global support infrastructure
SPECIFICATIONS
Electrical Output
Total Capacity: 1000W Continuous
Input Voltage: 200V240V
Input Current: Up to 6A
Input Frequency: 50Hz60Hz
Power Good Signal: 100150ms
Power Factor Correction: Active PFC
Efficiency: 80 PLUS Bronze Certified
Operating Temperature: 0°C to 40°C
Connectivity & Cabling
Motherboard: 1 × 24 (20+4) pin
CPU: 2 × 8 (4+4) pin
PCIe: 4 × 8 (6+2) pin
PCIe 5.1: 1 × 16 (12+4) pin 12V-2x6 (600W)
SATA: 6 × SATA connectors
Molex: 3 × 4-pin Molex
Cooling & Acoustics
Fan: 120mm silent fan
Control: Thermal Manager smart fan curve
Acoustic Profile: Low-noise operation under all load conditions
Safety & Protection (CircuitShield)
Over Voltage Protection (OVP)
Over Current Protection (OCP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Short Circuit Protection (SCP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)
Certifications
80 PLUS Bronze 230V EU
TUV, CB, CE, RCM, BIS, KC, UKCA
Physical Dimensions
PSU Dimensions: 14cm (L) × 15cm (W) × 8.6cm (H)
Box Dimensions: 29.65cm × 20.3cm × 13cm
Net Weight: 2020g
Gross Weight: 2550g
Regional UPC Codes
EC: 0-761345-20073-8
Australia: 0-761345-20074-5
Great Britain: 0-761345-20075-2
Thailand: 0-761345-20076-9
WHAT'S IN THE BOX
Antec CSK1000 PRO ATX3.1 Power Supply Unit × 1
Power Cable × 1

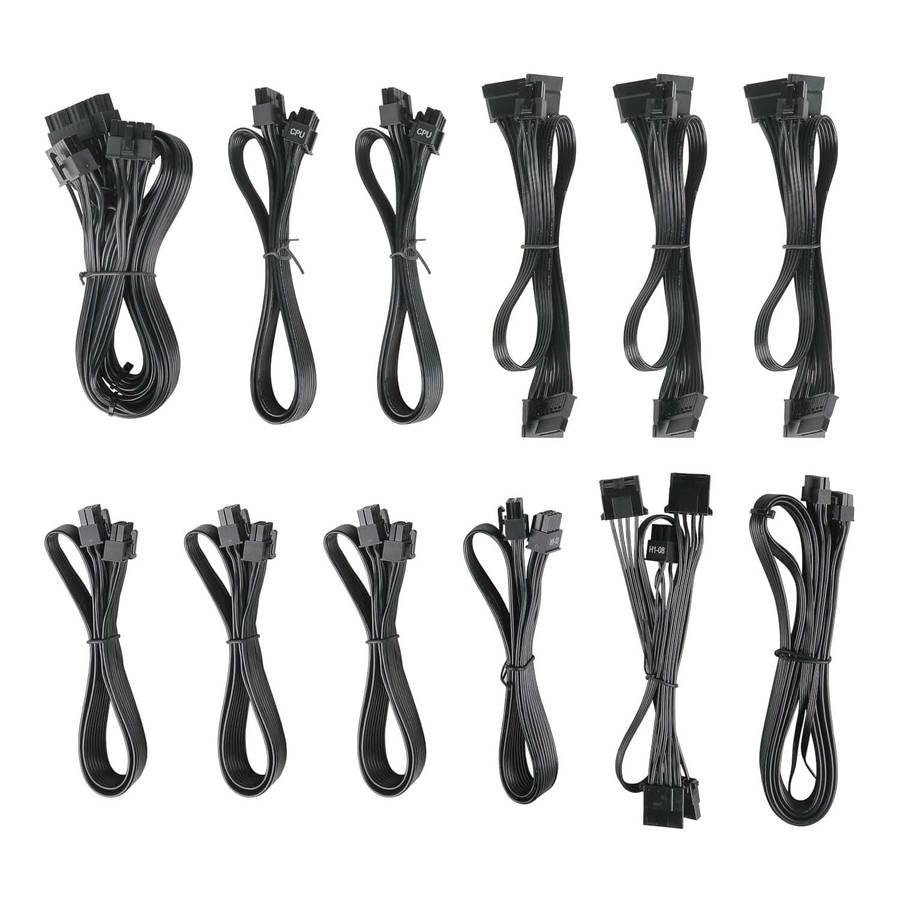

Modular Cable Set × 1
Mounting Screws × 1
User Manual × 1
