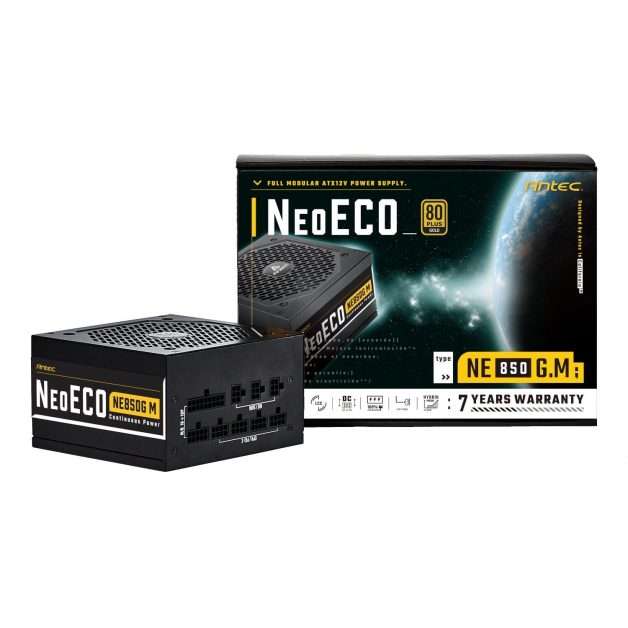

ANTEC NEOECO GOLD MODULAR 850W POWER SUP

ANTEC NEOECO GOLD MODULAR 850W POWER SUP

New 27 available
Indicative market price: R2,050.00
R1,794.00
12% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
NE850G
Bob Shop ID
676872201

FEATURES

  • 850W continuous power output with over 99% on a resolute +12V rail
  • 80 PLUS® Gold certified: Up to 92% efficiency under typical load
  • PCIe 5.0 Ready: Includes native 12VHPWR cable for RTX 40 Series GPUs
  • Half-Bridge LLC + DC-DC PhaseWave™ Design with synchronous rectification
  • Silent 120mm FDB fan with Zero RPM mode for low-noise operation
  • Fully modular design for best airflow and cable customisation
  • High-grade Japanese capacitors ensure reliability and low ripple
  • CircuitShield™ protection suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
  • Compact design for easy integration in mid and full tower chassis
  • Backed by Antec’s trusted 7-year warranty

SPECIFICATIONS

Power Output

  • Total Output: 850W Continuous
  • Efficiency Rating: 80 PLUS® Gold (up to 92%)
  • +12V Rail: >99% of total output (single rail)
  • Active PFC: Yes
  • Topology: Half-Bridge LLC + DC-DC
  • PCIe 5.0 Support: Yes (native 12VHPWR included)

Cooling & Acoustics

  • Fan Type: 120mm Silent Fluid Dynamic Bearing
  • Zero RPM Mode: Yes (fan stays off under low loads)
  • Thermal Control: Smart fan curve based on internal sensors

Cabling & Connectors

  • Type: Fully Modular
  • MB: 1 × 24(20+4) Pin
  • CPU: 2 × 8(4+4) Pin EPS 12V
  • GPU: 6 × 8(6+2) Pin PCIe, 1 × 16(12+4) Pin 12VHPWR
  • Peripherals: 10 × SATA, 5 × Molex, 1 × FDD
  • MBU: 28(18+10) pin future-ready socket

Electrical Specifications

  • Input Voltage: 100–240 VAC
  • Input Current: 10A Max
  • Input Frequency: 50–60Hz
  • Power Good Signal: 100–500ms
  • Operating Temperature: 0°C – 40°C

Protection & Compliance

  • CircuitShield™: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
  • Certifications: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES

Physical Dimensions

  • Size: 15cm (L) x 14cm (W) x 8.6cm (H)
  • Net Weight: 1380g
  • Gross Weight: 2710g

WHAT’S IN THE BOX

  • Antec NeoECO Gold Modular 850W Power Supply Unit ×1
  • Full modular cable kit ×1
  • Power cable ×1
  • Installation screws ×1
  • Quick installation guide ×1
