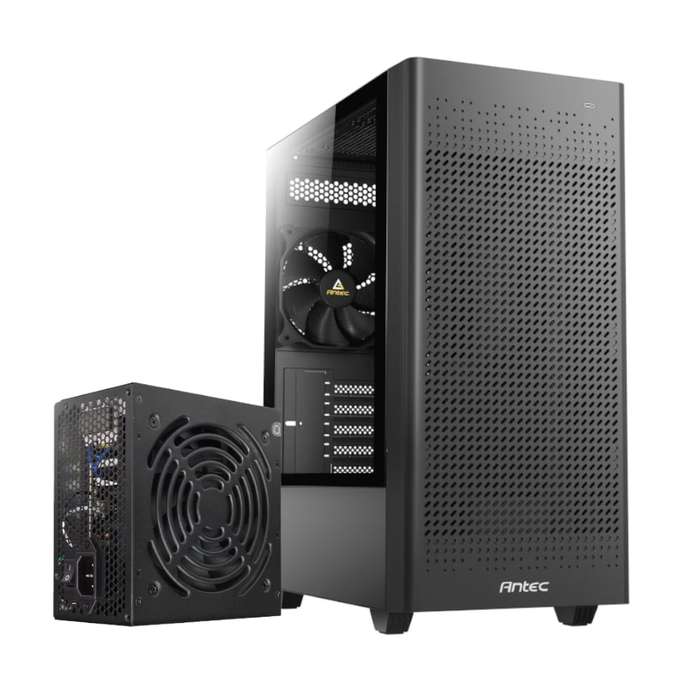

The Antec NX500M m-ATX Gaming Chassis and Atom 350W Power Supply bundle is a great way to bring some life to your existing PC build or a great way to start a new one.
The Antec NX500M is a one-of-a-kind Gaming Chassis with exceptional cooling performance. It has a tempered glass side panel for displaying your hardware, can accommodate up to six 120mm fans, and provides efficient ventilation with minimal dust intake. The case has a Type-C connection for convenience, 20mm cable management space, and the ability to display customised hardware and unique water-cooling systems. The removable HDD drive cage expands PSU installation space, allowing for PSUs up to 165mm with the cage and up to 325mm without. A big vented air inlet in the front allows for plenty of ventilation ensuring a cool and steady gaming experience.
Antec's new generation of Atom power supplies is crafted for quality, efficiency, and performance. Featuring an output of 350W, and a quiet 120 mm silent fan. The 120mm silent fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of reliable operation. For safety, the CircuitShield suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. It also features a thermal manager which gives you advanced fan control for optimal heat and noise management and will allow your PSU to stay at an optimal temperature. The Antec Atom V350 ATX Power Supply is the power supply you won't want to miss out on.
FEATURES:
Powerful Heat Dissipation
Tempered Side Glass Panel
Unique Front Vented Design
m-ATX and ITX Motherboard Support
Top and Bottom Magnetic Dust Filters
350W Output
CircuitShield - Industrial grade protections: OPP/OVP/UVP/SCP
120mm Silent Fan
SPECIFICATIONS:
Antec NX500M m-ATX Gaming Chassis
Form Factor: Mini Tower
Materials: Steel + Plastic
Mainboard Support: Micro-ATX, ITX
Front Access & Controls: Power, LED control button, Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
Side Panel: Tempered Glass
Drive Bays: Expansion Slots: 5
Fan Support:
Front: 3 x 120mm / 2 X 140mm
Top: 2 x 120mm/2 x 140mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm
Included Fan:
1 x 120mm fan in rear
Radiator Support:
Front: 120/140/240/280/360 (Length 397mm)mm
Top: 120 / 240mm
Rear: 120mm
Clearance:
Max GPU Length: 300mm(with front fan), 320mm(without front fan)
Max CPU Cooler Height: 155mm
Max PSU Length: 165mm(with HDD), 325mm(without HDD)
Dust Filter: Top / Bottom
Product Dimensions: 48 x 20 x 45 cm
Product Weight: 4000g
Antec Atom V350 Power Supply
Input: 230Vac, 4A, 47-63Hz
Output: +3.3V/16A, +5V/15A, +12V/25A, -12V/0.3A, +5Vsb/2.5A
Total Output: 350W
Connectors:
24-Pin Main Connector x1
8(4+4) Pin EPS12V x1
8(6+2) Pin PCI-E x1
SATA x3
Molex x2
Cooling: 120mm Silent Fan
What's in the box
Antec NX500M m-ATX Gaming Chassis - Black x1
Antec Atom V350 ATX Power Supply - Black x1
