Antec NX500M RGB M-ATX Gaming Chassis

Unique Design & Powerful Heat Dissipation

The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.

Powerful Cooling

Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.

High-Airflow Mesh Front Panel

Massive air intake at the front provides ample airflow.

Neat Build within Reach

20 mm space for cable management ensures your PC build looks neat.

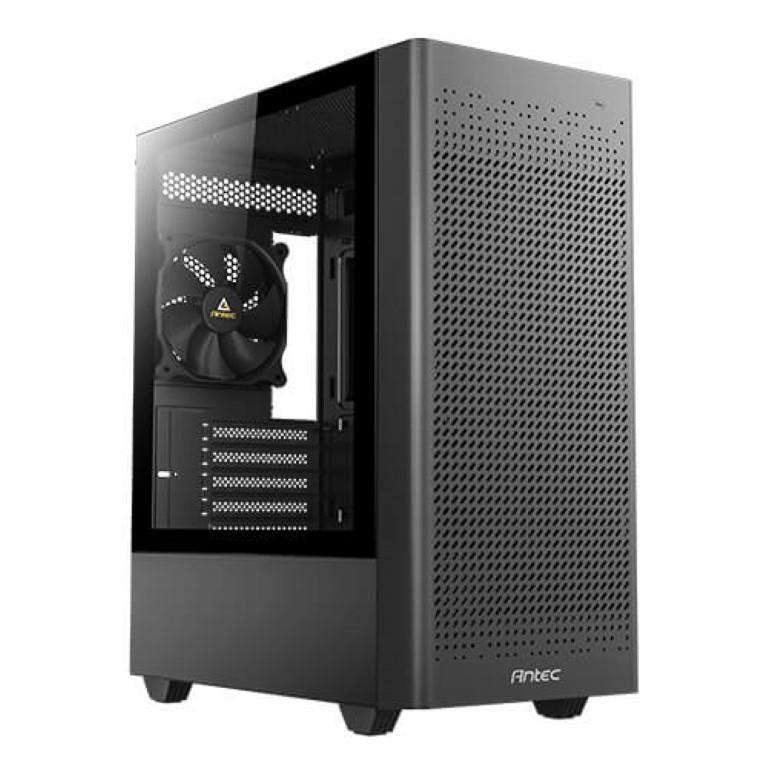

Tempered Glass Side Panel

Showcase your personalized hardware and custom water-cooling system.

Removable HDD Drive Cage

The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.

Specifications:

• Dimensions  (DxWxH): 384 x 200 x 451 mm
• Form Factor: Mini Tower
• Materials: Steel + Plastic
• Mainboard Support: Micro-ATX, ITX

Front Access & Controls

• Power
• Reset
• LED control button
• Type-C 3.2 Gen 2 x 1
• USB3.0 x 1
• USB2.0 x 2
• MIC/HD-AUDIO
• Side Panel: Tempered Glass Side Panel

Drive Bays

• 3.5" /2.5"
• with HDD cage: 2/3
• without HDD cage: 2/2
• 2.5": 2
• Expansion Slots 5

Fan Support

• Front: 3 x 120mm / 2 x 140mm
• Top: 2 x 120mm / 2 x 140mm
• Rear: 1 x 120mm
• 3 x 120mm ARGB fans

Radiator Support

• Front: 120 / 140 / 240 / 280 / 360mm (Max Length: ≤397mm)
• Top: 120 / 240mm
• Rear: 120mm

Clearance

• Max GPU Length: ≤ 300mm (with front fan) / ≤ 320mm (without front fan)
• Max CPU Cooler Height: ≤ 155mm
• Max PSU Length: ≤ 165mm (with HDD) / ≤ 325mm (without HDD)
• Dust Filters: Top / Bottom
