The unit is powered by your car/automotive battery, and should be installed inside a vehicle (preferably a place where it cannot be seen, for example, under the car seat). It runs on the latest GPS SiRF III chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure operated by your network provider to transmit its current location to you.
Features
100% brand new and high quality.
Car GPS Tracker & Alarm System with Web based and PC based software by SMS / GPRS , Geo fence supported
Support orientation without orientated server: it can find out Real-time longitude and latitude, time and speed. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
Remote Engine-stop and Resume.
Tracking function by timing and frequency
Authorized number added and deleted function
Support hidden alarm and monitor function
Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. Power supply disconnection alarm.
Door alarm
ACC alarm
Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
Low battery alarm function
Check the vehicle status
Functions
Tracking; Monitor; Geo-fence; Movement alert; Over speed alert; SOS Button; Low battery alert; Hidden number tracking; Power off alarm; Send SMS cut off/resume the oil and power system, arm, door alarm, sensor alarm, ACC alarm; Support 4G SD card; Support TCP and UDP protocol.
Specification:
DIM. 546226mm
Weight: 120g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GSM/GPRS Module: Simcom300d or Simcom340d
GPS Chip: SIRF3 chip
GPS Sensitivity: -159dBm
GPS Accuracy: 5m
GPS Start time: Cold status: 45s, Warm status: 35s, Hot status: 1s
Voltage of car power system: 12 V -24V
Backup battery: Chargeable 3.7V 800mAh Li-ion battery
Storage Temp. -40 to +85
Operation Temp. -20 to +65
Humidity 5%--95% non-condensing
Widely Applications:
Anti-theft of the vehicle/heavy equipment etc.
Protect the child / the old / the disabled / pet etc.
Provide peace-of-mind for businessman;
Personnel management;
Covert criminal Tracking
The GPS devices support phone tracking and 8 languages (English, Spanish, Portuguese, Arabic, Thai language, Italian, German, Chinese) website tracking.

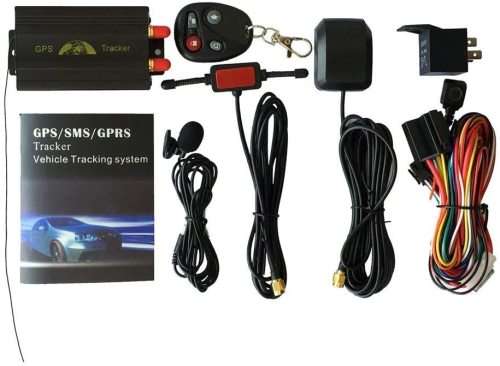

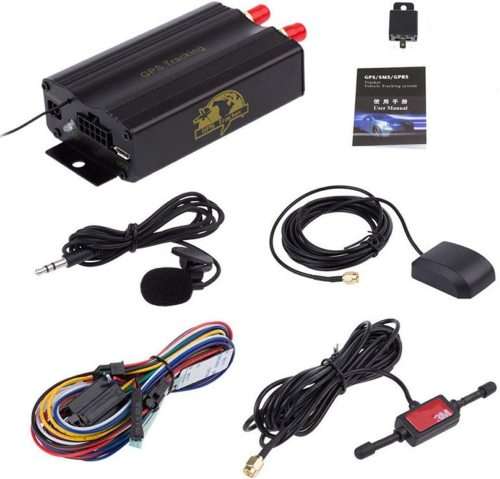

What's in the box
1 x Vehicle Car GPS Tracking Device
1 x Remote
1 x GPS Antenna
1 x GSM Antenna
1 x Harness(10pin) with SOS Button
1 x Electronic Relay (12V 40A)
1 x Lapel microphone wire
1 x Card slot for SIM
1 x English User Manual
