Antminer s5 1.15TH

1) Chip Specifications: BM1384

The BM1384, Bitmain’s 3rd generation Bitcoin mining ASIC, provides significant improvements over our previous-gen BM1382 chip. Hashrate per mm2 at 0.75V has been increased by over 20% while reducing power consumption by 30%. This improvement is the result of months of hard work and development by Bitmain.

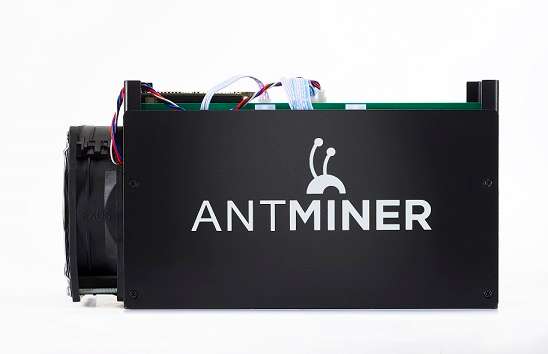

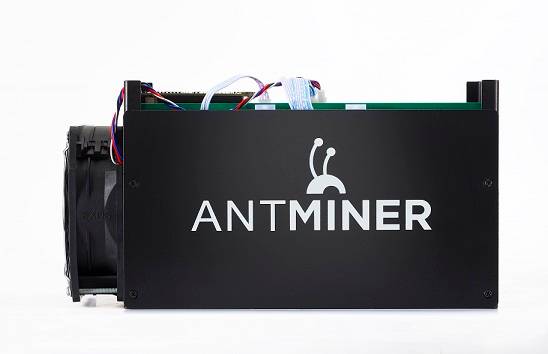

 2) ANTMINER S5

Building upon the foundations laid by the S1 and S3, the AntMiner S5 retains the same small form factor of previous miners while using the more efficient BM1384 chip.

Specifications

Hash Rate: 1155 GH/s ±5%

Power Consumption: 590 W (at the wall)

Power Efficiency: 0.51 J/GH (at the wall)

Rated Voltage: 12V

Dimensions: 298 mm x 137 mm x 155 mm

Cooling: 1x 12038 fan

Operating Conditions: 0 °C to 35 °C

Certified By: FCC / CE

Network Connection: Ethernet

Notes

1.   Power consumption figures may vary depending on PSU efficiency, ambient operating temperature, and the accuracy of the power meter.

2.   PSU: A power supply unit is not included, and you will need to provide an ATX PSU. There are 4 PCI-e connectors for +12V DC input and all four are required for use. Do not connect more than one PSU to the same hashing board.

A New Cooling Solution:

 Heat is dissipated from the top of the chips, which are powered in a chain style design on the PCB. This PCB layout concentrates the heat onto one side of the board, making heat diffusion more efficient.

Two custom aluminium heat sinks draw all the heat to the middle of the miner, and allow for the use of just one fan to keep the S5 running cool and quiet.
