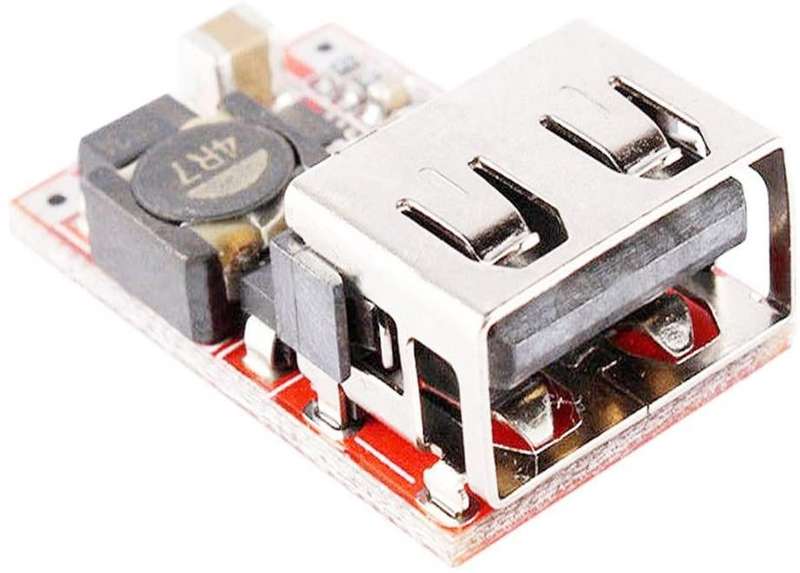

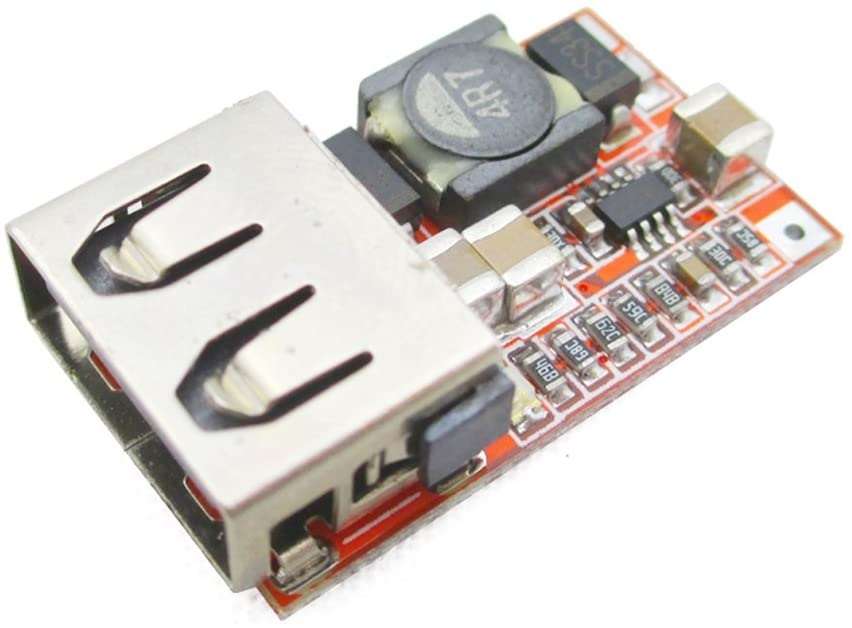

Antwire DC2DC5V3A DC TO DC Module 5v 3A with USB Charging Port

Specifications:- The max output current 3A, long time use 2.1A, enough use- New design, 3 solid-state ceramic capacitors(MCC), more safe and low ripple- Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%,12V to 5V 1A can up to 94%- Flat copper inductor, improve conversion efficiency- With output overvoltage protection. There is 1.5A fuse, output 5V have 300WTVS tube protect your USB device- Using the latest USB identification circuit, perfectly compatible with iPhone,the most of Android phones, IPAD etc- High-quality USB port- Output voltage indicator (RED)- Small size, 26.4 (L) x 15 (W) x 7.4 (H) mm- Input with reverse polarity protection diode, will not damage when inputconnect incorrectly- Ultra-low static current, 0.85 mA only. Do not need to add switch whenconnected to the car battery, can be connected to car cigarette lighter cable orACC power supply cableModule Parameters:- Module Properties: non-isolated buck module (BUCK) synchronous rectification- Input voltage: DC 6-24V- Output voltage: 5.1-5.2V- Output current: 3A MAX (please enhance heat dissipation when full load using),the actual test result input 12V output current 2A do not need to enhance heatdissipation.- Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (aftershort reverse protection and fuses test value)- Switch frequency: 500KHz- Output ripple: 10mV around (12V to 5V3A) 20M bandwidth- Output indicator: Output voltage indicator is red- Operating temperature: Industrial grade (-40 degree to + 85 degrees) (thehigher the ambient temperature, the lower the output power)- Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVStube clamp protection.- Full load temperature: 30 degree Celsius- Static current: 0.85 mA- Load regulation: +- 1%- Voltage Regulation: +- 0.5%- Dynamic response speed: 5% 200uS- Output short circuit protection: Yes, but please do not short circuit for along time- Input reverse polarity protection: Yes, there is reverse polarity protectiondiode- Connection mode: Welding- Input mode: Welding- Output mode: USB
