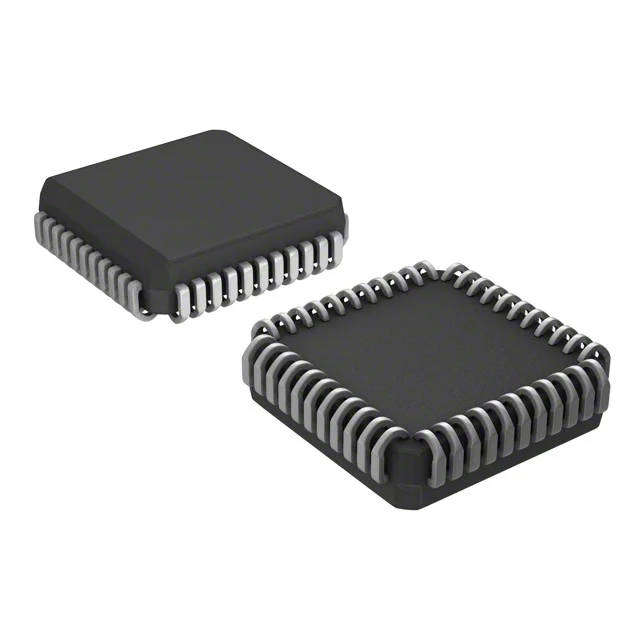

Antwire (MAX136CQH+TD) ADC SINGLE DUAL SLOPE 3 LCD ((NS))

The ADC Single Dual Slope 3½ Digit LCD Display IC from National Semiconductor (NS) is a precision analog-to-digital converter designed for digital panel meter and measurement applications. Utilizing dual-slope conversion technology, this IC provides excellent accuracy, noise rejection, and stable performance, making it ideal for voltmeters, multimeters, process monitoring equipment, and other electronic measurement systems.

Featuring direct LCD drive capability for a 3½ digit display, the IC simplifies circuit design by integrating analog-to-digital conversion and display control into a single device.

Key Features:

• Dual-slope analog-to-digital conversion
• Direct drive for 3½ digit LCD displays
• High accuracy and stability
• Excellent noise immunity and interference rejection
• Low power consumption
• Suitable for digital panel meters and measuring instruments
• Simplifies display and conversion circuitry
• Reliable performance for industrial and electronic applications

Applications:

• Digital voltmeters
• Multimeters
• Panel meters
• Electronic test equipment
• Process control instrumentation
• Battery-powered measurement devices

Specifications:

• Type: Analog-to-Digital Converter (ADC)
• Conversion Method: Dual Slope
• Display Support: 3½ Digit LCD
• Manufacturer: National Semiconductor (NS)
• Package Type: As supplied
• Mounting Type: Through-Hole / DIP (subject to model variant)

Package Includes:

• 1 × ADC Single Dual Slope 3½ Digit LCD Display IC ((NS))
