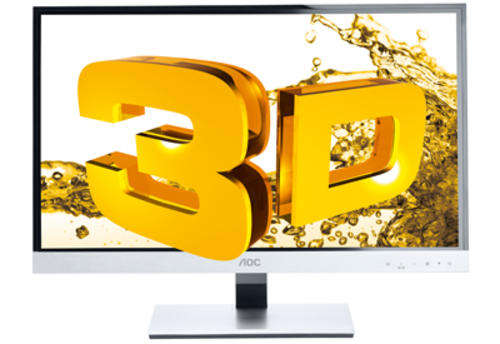

AOC D2357PH 23 inch Widescreen LED 3D Multimedia Monitor (1920x1080, 2ms, VGA, 2 x HDMI, Dual Stand Function, Narrow Edge Bezel, i-Menu) (D2357PH)
The AOC 57 Series “3D” range features
AOC Cinema 3D technology to provide consumers with enhanced digital content consumption and creation, delivering cinematic quality pictures that make watching movies, playing games and editing photos an eye-catching experience. AOC 57 Series “3D” includes 2D to 3D software that instantly takes you into another dimension, transforming games and movies to simulated 3D. Hundreds of popular PC games are compatible with instant 2D to 3D.
The ultra-narrow bezel around the screen is barely visible,
just 5.8mm on the 23” model, creating a seemingly borderless display. Dual HDMI 1.4a ports support 3D movies or games with compatible Blu-ray players or gaming consoles like PS3 and Xbox 360.
Flicker Free 3D Monitor with Polarized Glasses
Flicker Free 3D technology adopts passive glasses for stereo 3D display. Insteadof rapidly switching each eye on and off, polarized glasses display continuousimages,using a different pattern for the left and right eyes, providing a pleasantviewing experience with vivid 3D images and a wide viewing angle.
Narrow edge
Ultra Narrow Bezel 23" 5.8mm.
Enjoy a simulated 3D view of any 2D content, with Hot Key control.
Direct Insert I/O
Direct insert connectors face the rear, making it easier to connect the monitor to power and input sources.
Dynamic Contrast Ratio(DCR)
Ultra-high Dynamic Contrast Ratio of 20,000,000:1 displays darker images with more depth and detail.
The LED backlight panel requires 50% less energy than typical 4CCFL monitors.
LED Panel: Hg Free
Mercury (Hg) is poisonous, producing toxic environmental waste.
HDMI (High-Definition Multimedia Interface)
is the digital video and sound standard for connecting the latest consumer electronics like Blu-ray players and game consoles.
Off Timer
To save power,
a timer can be set to automatically turn off the monitor after
a user-defined interval.
Key Features-
Screen Size
23"W
Viewable Image Size
58.42cm
Pixel Pitch
0.265(H)×0.265 (V)mm
Display Area
509.76(H)×286.74 (V)mm
Brightness
250 cd/m²
Contrast Ratio (typical)
20000000:1 (DCR)
Response Time (typical)
2ms
Viewing Angle
170/160 (CR=10)
Scan Frequency
H: 30K~83KHz V: 50~76Hz
Pixel Frequency
144MHz
Recommended Resolution
1920×1080@60Hz
Display Colours
16.7M
HDCP Compatible
Yes
Input Signal
Analog RGB, HDMI*2
Input Connector
15-pin D-Sub and HDMI*2
Power Supply
110~240VAC, 50/60Hz
Power Consumption
Power On: <40W(Typical), Standby: <0.5W
Plug & Play
DDC 2B/CI or VESA DDC2B
User Control
3D/<,Volume/>, Source/Auto/Exit, Power,Menu
OSD Languages
16Languages
Speakers
Yes
Safety & Regulations
BSMI,VCCI,PSE,J-MOSS,MEPS,KCC,e-standby, FCC, cCSAus, CE, EPA 5.0,Windows 7, RoHS
Wall-Mount
NA
Cabinet Colour
Black & Sliver
Mechanical Function
Tilt: -5°~15°
W×H×D (w/base)mm
533× 399.31 ×120
W×H×D (package)mm
591×115×411
Weight (Net /Gross)
3.01Kg/3.81Kg
Contrast Ratio NA
Brightness 3D 95 cd/m²
3D Viewing Angle
U/D 12 ( 3D CT<10 )
3D Watching Distance
90cm (Typical)
