Description:

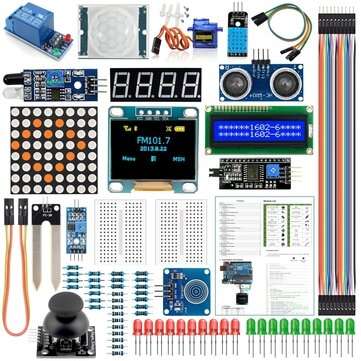

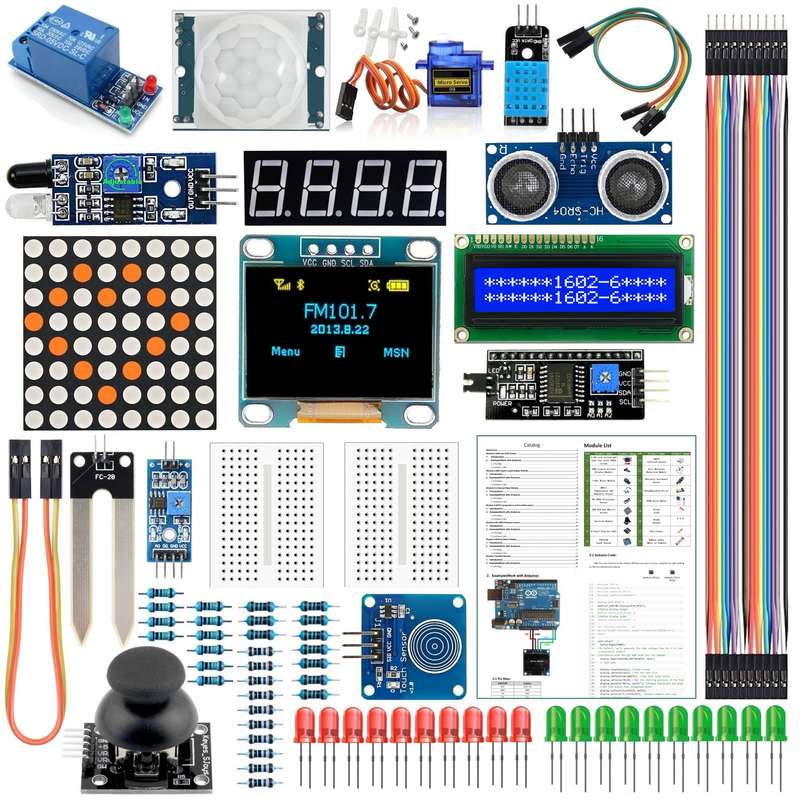

Module sensor starter kit for Arduino Raspberry Pi

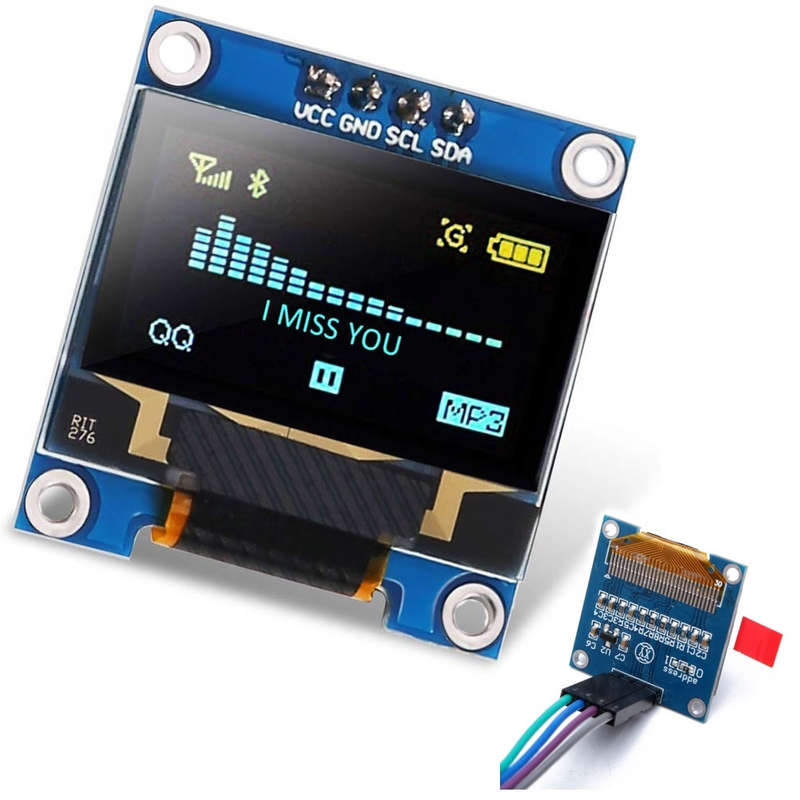

0.96a OLED: Made of 128x64 individual Yellow Blue OLED pixels.SSD1306 Driver Chip,controlled by I2C only need 2 wires.

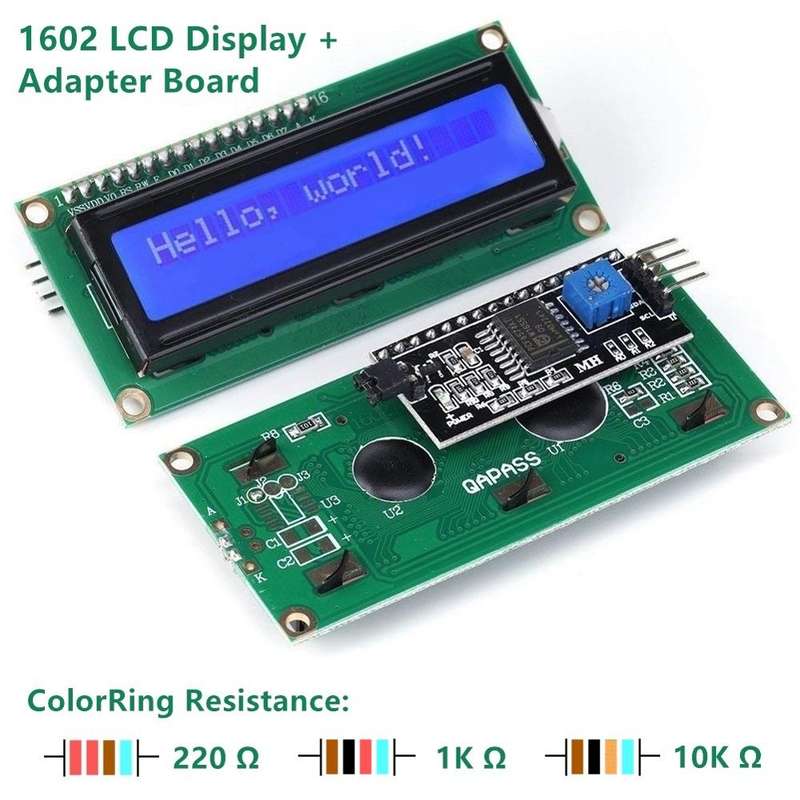

1602 LCD: White Blue with adjustable Backlight,display 2x16 characters.With Adapter Board,only need 4 I/O ports can control it.
Touch Sensor: Touch it turns on,release it turns off.
Obstacle Avoidance Module: used in robot obstacle avoidance,line count,black white line tracking.
8x8 Red Dot Matrix Display: used to display characters and graphics,simple to control
1 Channel Relay Module: Controlled by 5V digital output from microcontrolle,With power and relay action indicator.used as home appliance control.
PIR Motion Sensor: Human body sensor lighting industrial automation and control, etc.
SG90 9G Servo Motor: Applied to remote control helicopters, micro robot,and boats. For All kind of R/C Toys and for Arduino experiments.
DHT11: Digital temperature and humidity sensor is a digital signal output with a calibrated temperature and humidity combined sensor
Soil Moisture Sensor: Most sensitive to ambient humidity is generally used to detect moisture of soil.
JoyStick Module: 2-axis pushbutton rocker module by joystick potentiometer with (X, Y) 2 axis analog output, (Z) 1 button digital output.
Red LED Digital Tube: Common Anode;Digital Display:4 Digit;4 Bit 7 Segment;
Ultrasonic Distance Sensor: Using IO trigger for at least 10us high level signal, When triggered it sends out a series of 40KHz ultrasonic pulses and receives echo from an object

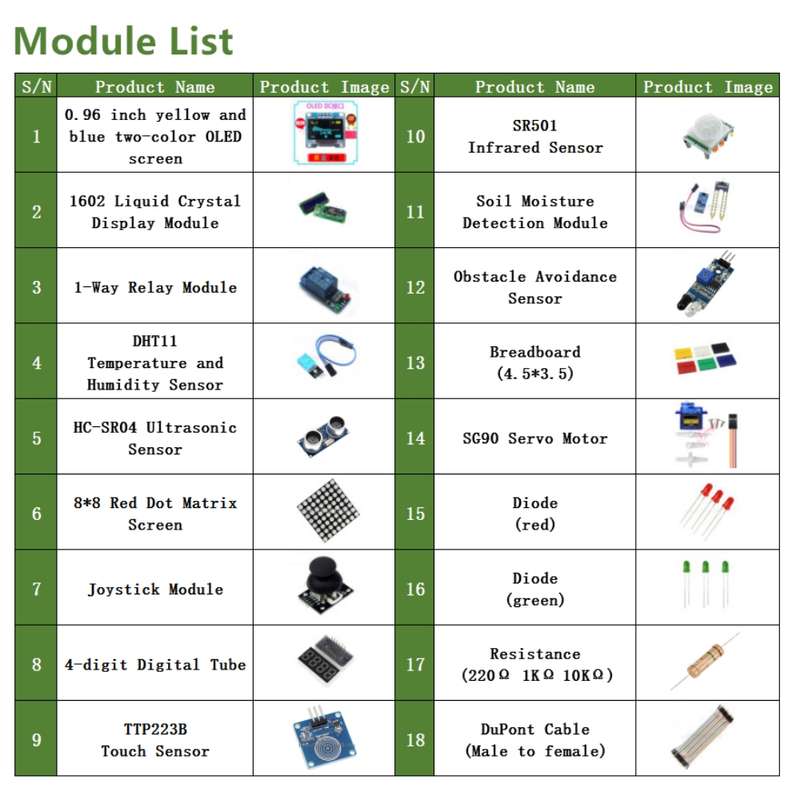

Package included:
1 x 0.96 inch OLED Screen
1 x 1602 Liquid Crystal Display Module
1 x 1-Channel Relay Module
1 x DHT11 temperature and humidity sensor
1 x HC-SR04 Ultrasonic sensor
1 x 8x8 Dot Matrix Display
1 x JoyStick Module
1 x 4-digit Digital Tube
1 x TTP223B Touch sensor
1 x HC-SR501 Infrared sensor
1 x Soil Moisture Sensor
1 x Obstacle Avoidance Sensor
1 x SG90 9G Servo Motor
2 x Bread Board
20 x Diode(red)
30 x Resistance(220 1K 10K )
20 x DuPont Cable(male to female)
