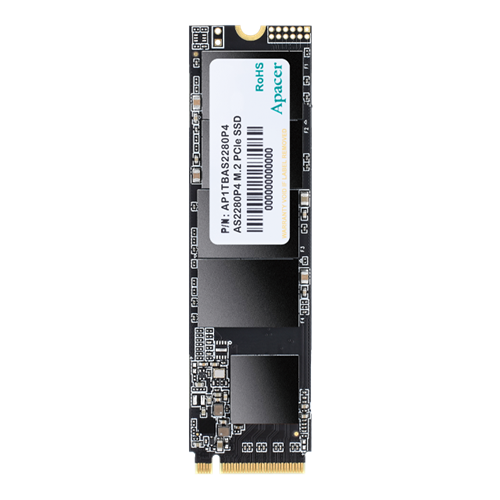

Apacer AS2280P4 512GB M.2 PCIe Gen3 NVMe SSD (Solid State Drive) Compliant with NVMe 1.2 Standard, Ultra Thin M.2 Form Factor -Sequential Read/Write Speed up to 1800MB's / 1100MB's, Retail Box, Limited 2 Year Warranty
Product Overview
Apacer Technology Inc. PCIe NVMe M.2 Solid State Drives (SSDs) are based on the M.2 form factor, with a standard width of 22mm, making them ideal for mobile and compact computers. These SSDs feature SATA-based connector pinouts, ensuring full compliance with PCIe Gen3 x2 interface specifications.
The Apacer PCIe NVMe M.2 SSDs implement a hardware ECC scheme to detect and correct data errors, ensure data is being read correctly, and to protect data from corruption. Bad Block Management prevents data being stored in bad blocks, further improving data reliability. Wear Leveling spreads out the flash usage through the whole flash media area, greatly increasing the life expectancy.
Highlights
PCIe Interface
Compliant with NVMe 1.2
Compatible with PCIe Gen3 x2 Interface
Flash Management
Temperature Range
Shock and Vibration
RoHS Compliant
NAND Flash Type: 3D TLC
FEATURES
Specifications
Stock Code:AP512GAS2280P4-1
Description:Apacer AS2280P4 512GB M.2 PCIe Gen3 NVMe SSD
Sustained Write Performance:Up to 2,000MB/s
Capacity: 512GB
Interface:PCIe Gen3 x4
NAND Flash:3D TLC
Sustained Read Performance:Up to 3,000MB/s
IOPs (4K Random Write):Up to 360,000 IOPS
ECC Support:Up to 72bit/1KB
Shock:1500G/0.5msec
Vibration:7~800Hz, 3.08Grms
Low Power Consumption (Active/Idle):275/80mA
MTBF:1,500,000 hours
Humidity:5%~95%
Standard Operating Temperature:0°C ~ +70°C
Storage Temperature:-40 ~ +85°C
Dimensions:(L)80 x (W)22 x (H)2.25mm
Certificate:KCC, CE, FCC, VCCI, RCM, BSMI
Warranty:2 Years
