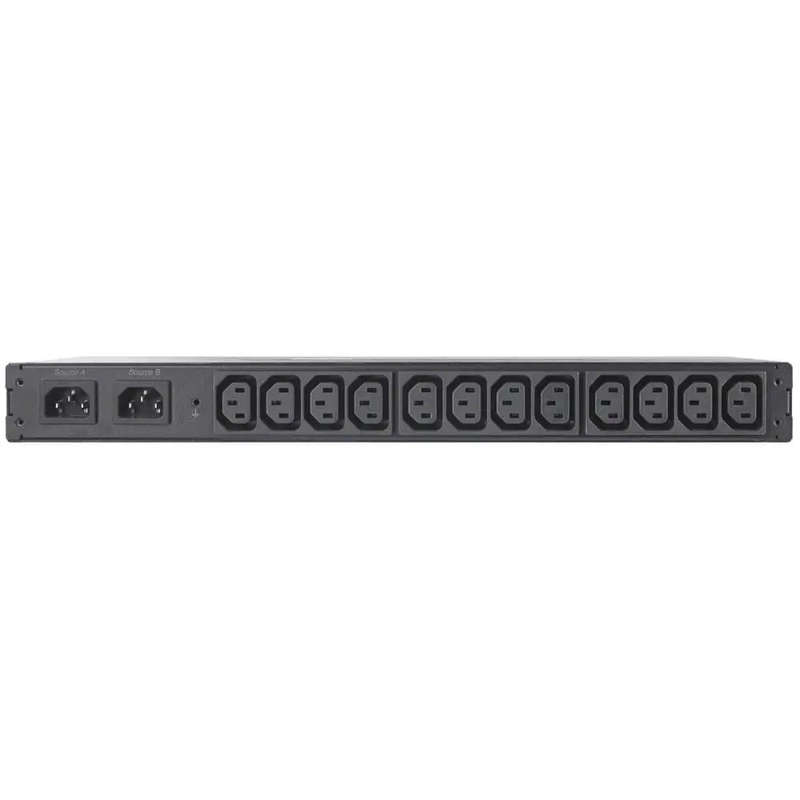

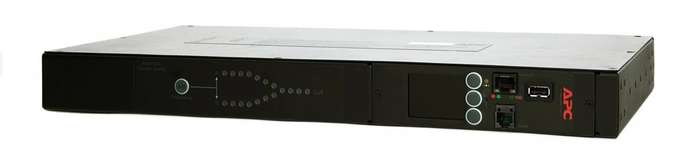

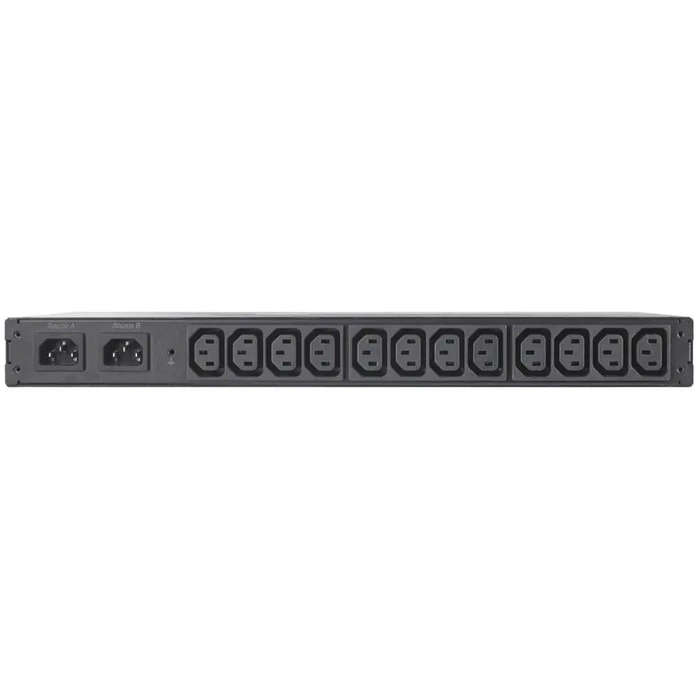

APC AP4421 Rack Automated Transfer Switch 10A/230V 12A/208V C14 in, 12 C13 Out; Open Box

APC AP4421 Rack Automated Transfer Switch 10A/230V 12A/208V C14 in, 12 C13 Out; Open Box

The APC Rack Automatic Transfer Switch (ATS) provides reliable redundant power to your equipment through dual AC input sources, ensuring uptime even when the primary power source fails. With seamless switching and remote management capabilities, this device is ideal for maintaining the availability of mission-critical equipment in server rooms, data centers, and networking environments.

Uses:

• Ideal for use in data centers and server rooms where redundant power is essential.
• Perfect for critical IT equipment requiring uninterrupted power during outages or maintenance.
• Suitable for environments that need seamless power switching between two AC sources to prevent downtime.

Key Features:

• Redundant Power Switching: Automatically switches between primary and secondary power sources.
• Seamless Transfer: Transfers power to the secondary source without interrupting the connected devices.
• Remote Management: Built-in network connectivity for management via Web, SNMP, SSH, Telnet, or StruxureWare.
• Multiple Outlets: 12 x IEC 60320 C13 outlets for connecting multiple devices without additional Rack PDUs.
• Current Monitoring: Provides current measurements and warning alarms to prevent power overload.

Specifications:

• Condition: Open Box item that has been extensively tested and is fully functional with no signs of use.
• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Input Connection Type: IEC 60320 C14
• Number of Rack Units: 1U
• Dimensions (H x W x D): 4.4 cm x 43.2 cm x 23.6 cm
• Net Weight: 3.93 kg
• Mounting Location: Front/Rear, No preference
• Mounting Mode: Rack-mounted
• Network Frequency: 50/60 Hz
• Max Line Current: 10 A
• Input Current Limits: 10 A
• Load Capacity: 2000 VA
• Max Current Draw: 10 A
• Number of Power Socket Outlets: 12 IEC 60320 C13
• Protection Type: Without Circuit Breaker

Included in the Box:

• Rack Automated Transfer Switch (ATS)
• Mounting Hardware
• Rack Mounting Brackets
• Serial Configuration Cable

Warranty:

3 Month Carry-in Warranty
