Product details

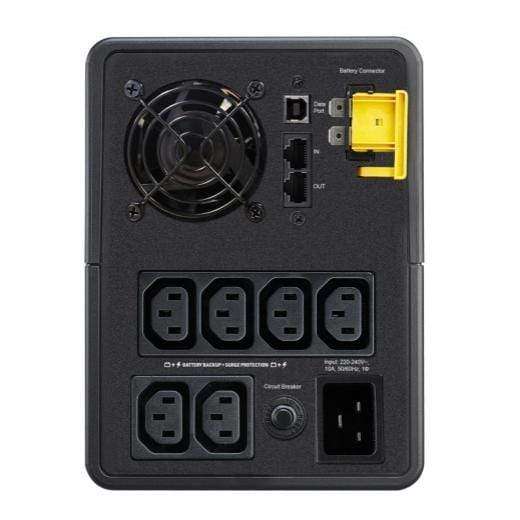

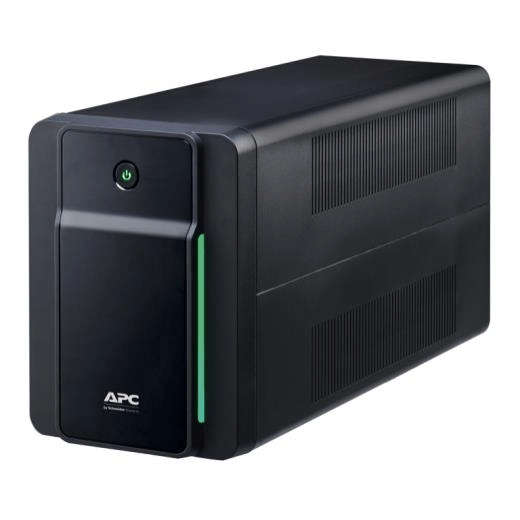

APC Back-UPS 2200VA 1200W 230V AVR IEC Sockets BX2200MI
The APC Back-UPS 1200VA is a Uninterruptible Power Supply (UPS) designed to provide battery backup and surge protection for connected devices.
Features
- Wide Input Voltage Range
- Built In AVR + Surge
- Value Added ID outlook
- Comprehensive VA range
- Auto-Start Function
- Dataline Protection
Technical Specification
Main
Main Input Voltage: 230 V
Rated power in W: 1200 W
Rated power in VA: 2200 VA
Input Connection Type: IEC 60320 C13
output connection type: 6x IEC 60320 C13
Cable length: 1.22 m
Number of cables: 1
Batteries & Runtime
Battery voltage: 24 V
Battery capacity: 9.0 Ah
Battery power in VAH: 190 VAh runtime, 216 VAh capacity
General
Max runtime: 240 min
Redundant: No
Physical
Dimensions H x W x D: 19 x 14 x 39 cm
Net weight: 12.3 kg
Mounting mode: Not rack-mountable
Input
Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits: 140...300 V
Input Power Factor at Full Load: 0.54
Output
Maximum configurable power in W: 1200 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
UPS type: Line interactive
Wave type: Stepped approximation to a sinewave
Full load runtime: 00:01:00 1200 W
Half load runtime: 00:06:30 600 W
Maximum configurable power in VA: 2200 VA
Transfer time: 6 ms typical : 10 ms maximum
Communications & Management
Control panel: LED Status display with on line : on battery
Surge Protection and Filtering
Surge energy rate: 273 J
