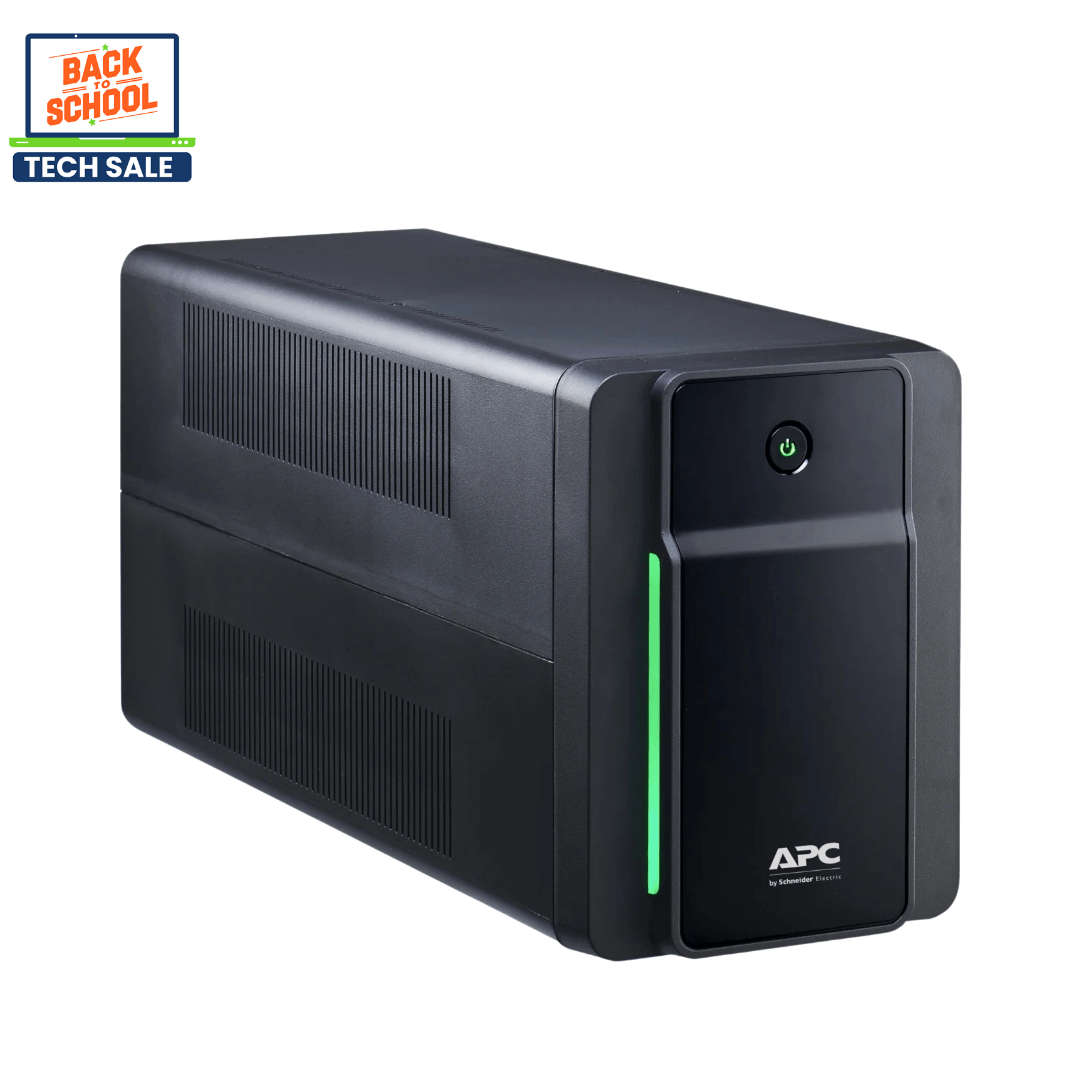

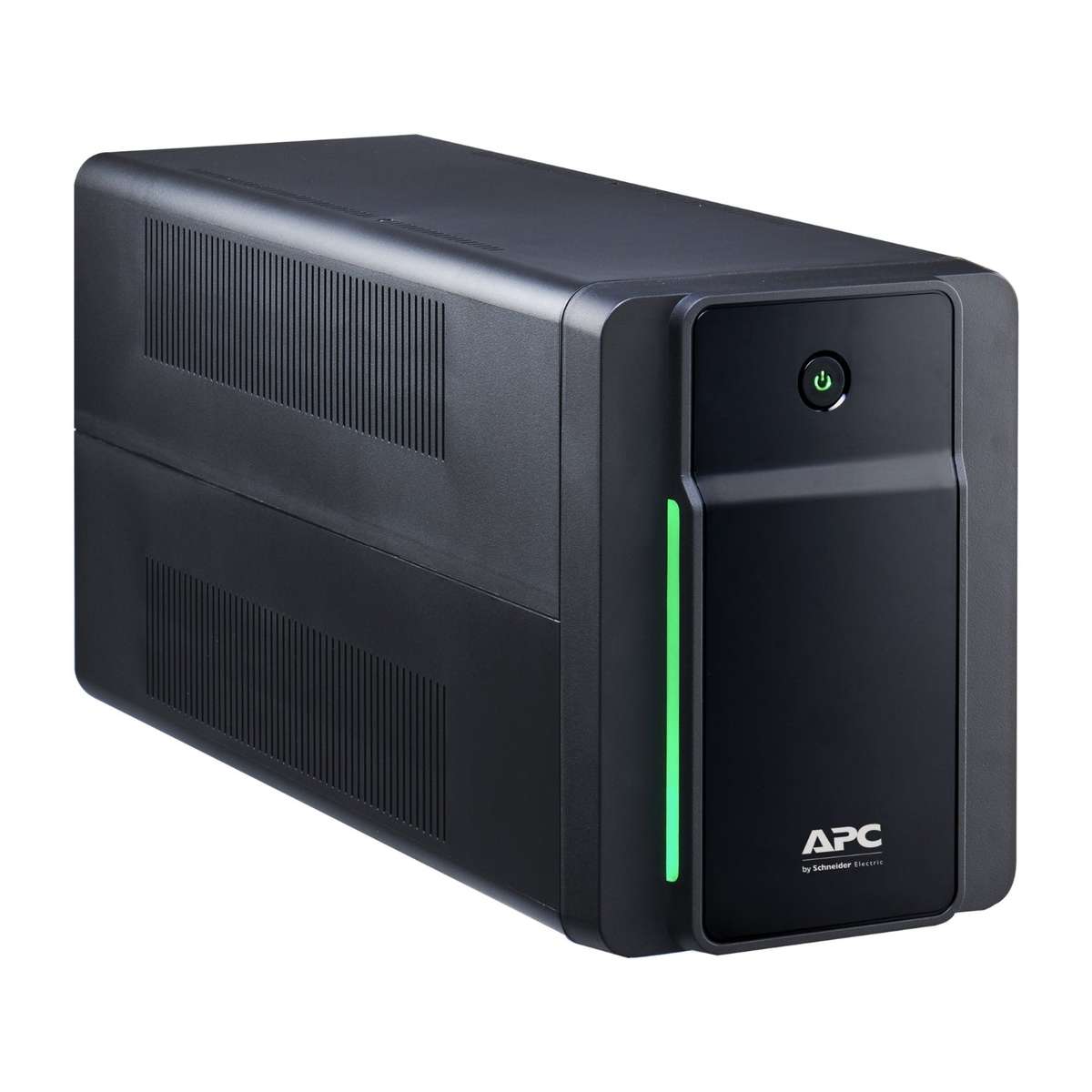

APC BX2200MI Back-UPS 2200VA 230V Line Interactive UPS –

The APC BX2200MI Back-UPS 2200VA is a high-performance uninterruptible power supply designed to protect electronics and critical systems from power outages, voltage fluctuations, and surges. This 230V model features six IEC C13 output ports and provides reliable battery backup with AVR (Automatic Voltage Regulation) for home offices, business workstations, or small server environments.

This open-box unit has been tested and verified for functionality and includes the UPS and a single power cable.

Key Features & Benefits

2200VA / 1200W Capacity Powers essential equipment during outages
Line-Interactive Topology Automatic voltage regulation without switching to battery
6 x IEC C13 Outlets Protects multiple devices simultaneously
Stepped Approximation Waveform Compatible with standard power supplies
Battery Backup & Surge Protection Keeps connected devices safe and operational
User-Replaceable Battery Ensures extended product lifecycle

Ideal Uses

Workstations & PCs Prevent data loss and safely shut down systems
Networking Devices Protect modems, routers, and switches during outages
POS & Retail Systems Maintain power to transaction equipment
Small Business Servers Backup critical systems with clean power delivery

📊 Specifications

Condition: Fully functional unit with minimal signs of handling
Model: APC BX2200MI Back-UPS 2200VA, 230V
Type: Line Interactive UPS
Input Voltage: 230V
Output Voltage: 230V
Rated Power: 2200 VA / 1200 W
Input Frequency: 50/60 Hz ± 5 Hz (auto-sensing)
Output Frequency: 50/60 Hz ± 1 Hz (sync to mains)
Connections: 6 x IEC 60320 C13 outlets
Input Plug Type: IEC 60320 C14
Cable Length: 1.2 meters
Battery Type: Lead-acid, 24V, 9.0 Ah
Full Load Runtime: ~1 min @ 1200W
Half Load Runtime: ~8.5 min @ 600W
Surge Energy Rating: 273 Joules
Control Panel: LED status indicators (on line, on battery)
Operating Temperature: 0°C to 40°C
Humidity: 095% non-condensing
Acoustic Noise Level: 40 dBA
Dimensions: 19 cm (H) x 14 cm (W) x 39 cm (D)
Weight: 12.3 kg
Mounting: Desktop only (non-rackmount)
Compliance: CE, RoHS, EN/IEC 62040-1, 62040-2
Warranty: 6 Month Carry-in Warranty
What's in the Box: APC Back-UPS 2200VA, Power Cable
