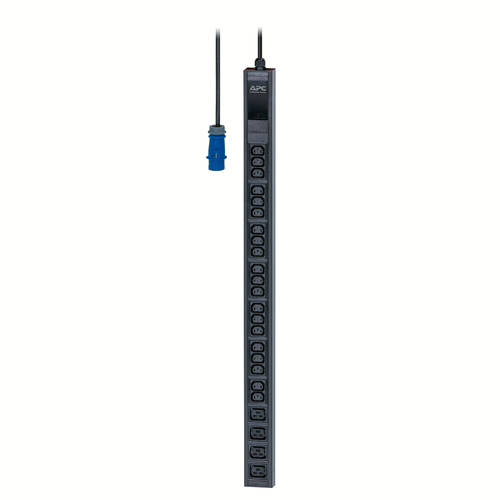

APC EPDU1116B 24 AC outlet 0U Power Distribution Unit

APC EPDU1116B 24 AC outlet 0U Power Distribution Unit

Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.

Features:

• Single-phase Basic 0U Black
• 24 AC outlet(s) C13 coupler, C19 coupler
• 3680 W

Toolless Rack Mounting Capabilities

Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.

Zero U Rack Mounting Abilities

Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.

Agility

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Cost Savings

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Specifications:

PDU types: Basic

Rack capacity: 0U

Type: Single-phase

AC outlets quantity: 24 AC outlet(s)

AC outlet types: C13 coupler, C19 coupler

Power plug: IEC 60309

Cable length: 3 m

Nominal input voltage: 200/208/230 V

Maximum current: 16 A

AC input frequency: 50 - 60 Hz

Width: 62 mm, Depth: 44 mm, Height: 902 mm
