Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Network manageable
Provides remote power management of the UPS over the network.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
Tech specs:
Output
Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Load Crest Factor: 3 : 1
Topology: Double conversion online
Waveform type: Sine wave
Bypass: Internal bypass (automatic and manual)
Input
Input frequency: 40/70 Hz
Input voltage range for main operations: 160 - 275V
Batteries and runtime
Battery type: Lead-acid battery
Typical recharge time: 3hour(s)
Expected Battery Life (years): 3-5
Battery Charge Power (Watts): 168 Watts
Nominal Battery Voltage: 96 V
RBC Quantity: 1
Comms and management
Interface Port(s): RJ-45 Serial, Smart-Slot, USB
Control panel: Multifunction LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Yes
Available SmartSlot Interface Quantity: 1
Surge protection and filtering
Surge energy rating: 340Joules
Physical
Maximum Height: 432MM, 43.2CM
Maximum Width: 85MM, 8.5CM
Maximum Depth: 635MM, 63.5CM
Net Weight: 31.3KG
Shipping weight: 36.74KG
Shipping Height: 246MM, 24.6CM
Shipping Width: 599MM, 59.9CM
Shipping Depth: 871MM, 87.1CM
Color: Black
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery

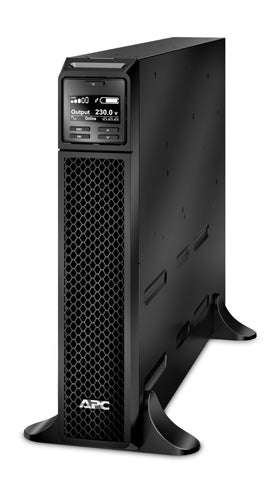

APC Smart-UPS SRT 3000VA 230V
High density, double-conversion on-line power protection with scalable runtime
Includes CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
What's in the box
1 x SRT3000XLI APC Smart-UPS SRT 3000VA, 2700W 230V
