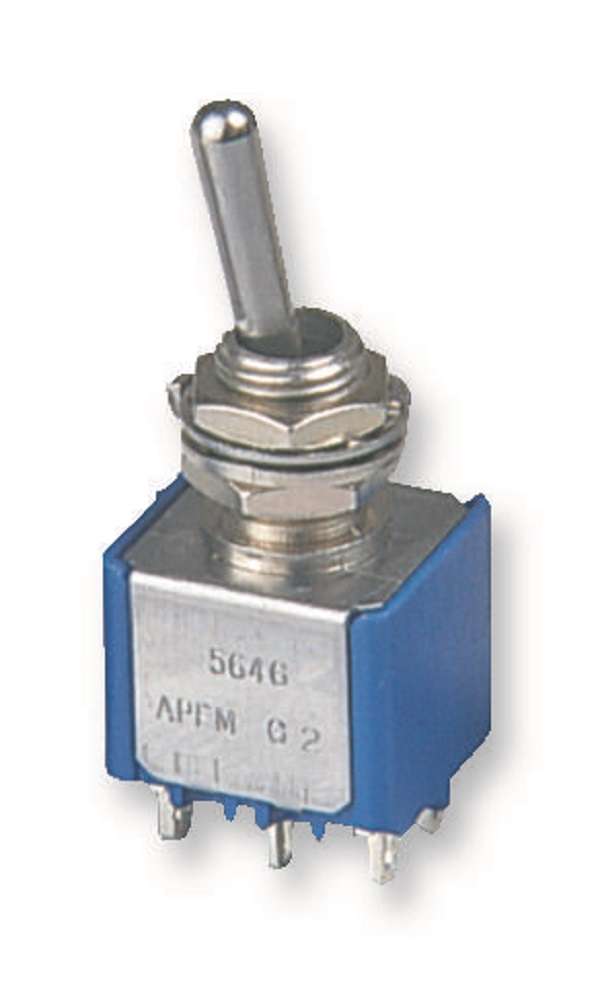

Apem (5646A) Toggle Switch, On-On, DPDT, Non Illuminated, 5000 Series

Toggle Switch, On-On, DPDT, Non Illuminated, 5000 Series, Panel Mount, 4 AProduct InformationSwitch Operation: On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 5000 SeriesSwitch Mounting: Panel MountContact Current Max: 4AContact Voltage AC Nom: 250VSwitch Terminals: SolderContact Voltage DC Nom: 30VProduct OverviewThe 5000 series from Apem are miniature toggle switches. Available in 1, 2, 3and 4 pole configurations. These switches are available in threaded bushingversions for panel mounting and plain bushing for PCB.17 actuators including toggles, paddle levers and locking levers in differentlengths5 contact materials from dry circuit to 6A at 125VAC and high inrush upto 120Aat 2ms8 functions including maintained and momentary versions12 terminal types including 9 for PC board mounting, quick connect and wire wrap6 bushing styles from 6 (.236) plain to 11,9 (15/32) threaded3 types of finish including military blackVDE, UL, CSA and CECC approved4 types of sealing for terminal or front panel requirementsSolder lug and PC terminals, gold plated or silver contactsThreaded bushing versions for panel mounting and plain bushing versions for PCBApplicationsIndustrial, Power Management, Automation & Process Control
