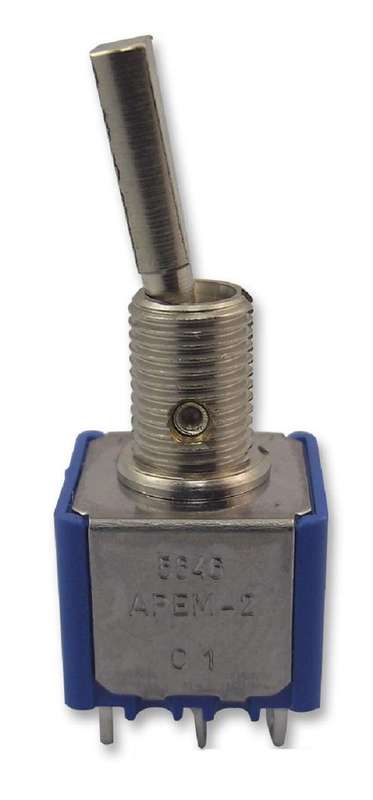

Apem (5646A9) Toggle Switch, On-On, DPDT, Non Illuminated

Toggle Switch, On-On, DPDT, Non Illuminated, 5000 Series, Panel Mount, 4 AProduct InformationSwitch Operation: On-OnContact Configuration: DPDTIllumination: Non IlluminatedProduct Range: 5000 SeriesSwitch Mounting: Panel MountContact Current Max: 4AContact Voltage AC Nom: 125VSwitch Terminals: SolderContact Voltage DC Nom: 30VProduct OverviewThe 5646A9 is a double-pole double-throw miniature Toggle Switch with solder lugterminals, threaded bushing versions for panel mounting and plain bushingversions for PCB, On-On switch operation, stainless steel housing,diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case,nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyllever caps and nickel-plated brass bushing.Epoxy terminal seal10mR Initial contact resistance1000MR at 500VDC Minimum insulation resistance50000 Cycles electrical life at full load-40 to +85°C Operating temperature rangeApplicationsAudio, Automotive, Communications & Networking, Agriculture
