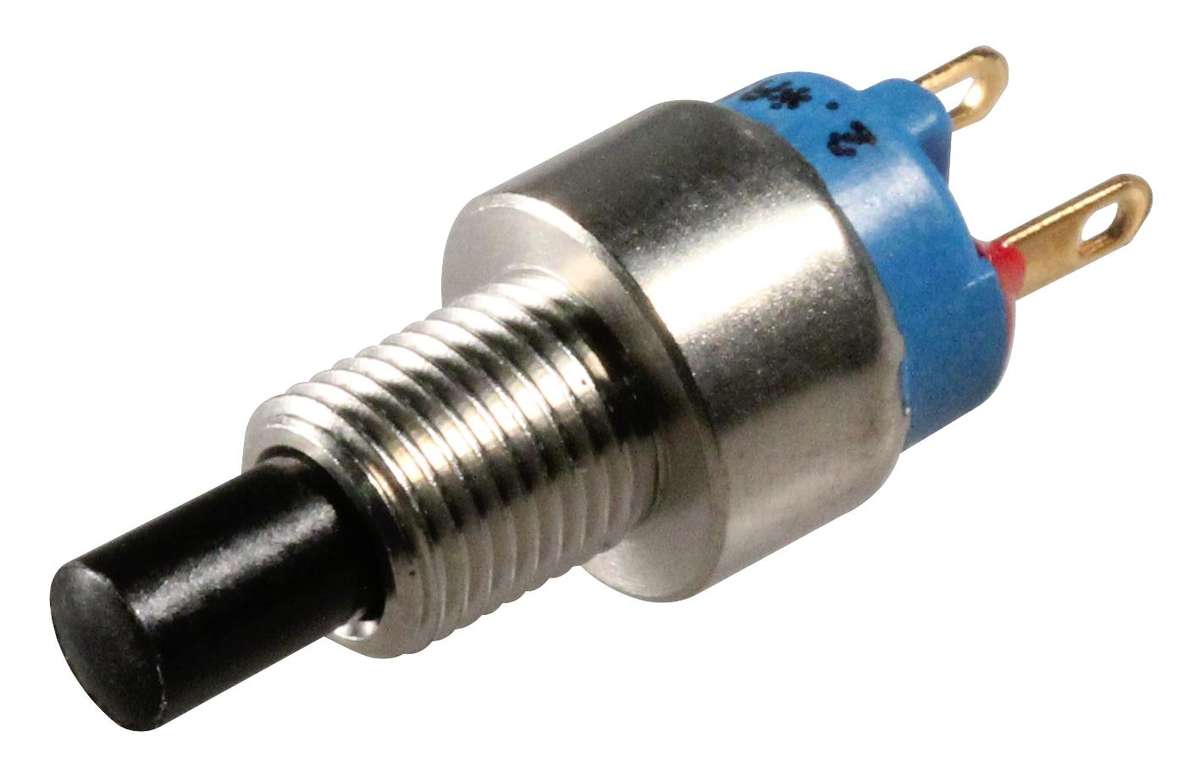

Apem (9633NCD) Pushbutton Switch, 9000, 6.5 mm, SPST-NO, Momentary

Apem (9633NCD) Pushbutton Switch, 9000, 6.5 mm, SPST-NO, Momentary

New 1887 available
R445.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1082345
Bob Shop ID
645114922
Pushbutton Switch, 9000, 6.5 mm, SPST-NO, Momentary, Plunger, BlackProduct InformationPushbutton Switch Type: StandardProduct Range: 9000Panel Cutout Diameter: 6.5mmContact Voltage AC Nom: -Contact Configuration: SPST-NOContact Voltage DC Nom: 30VSwitch Operation: MomentaryPushbutton Actuator Style: PlungerContact Current Max: 100mAActuator / Cap Colour: BlackContact Current AC Max: -Contact Voltage VAC: -Contact Current DC Max: 100mAContact Voltage VDC: 30VIP Rating: -Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 9633NCD is a single-pole single-throw momentary Pushbutton Switch withsolder lug terminals, UL94-V0-rated thermoplastic case, glass filled polyamideactuator, nickel-plated brass bushing, gold-plated brass contacts and epoxyterminal seal.50mR Maximum initial contact resistance1000MR at 500VDC Minimum insulation resistance250000 Cycles electrical life-30 to +55°C Operating temperature rangeApplicationsIndustrial
