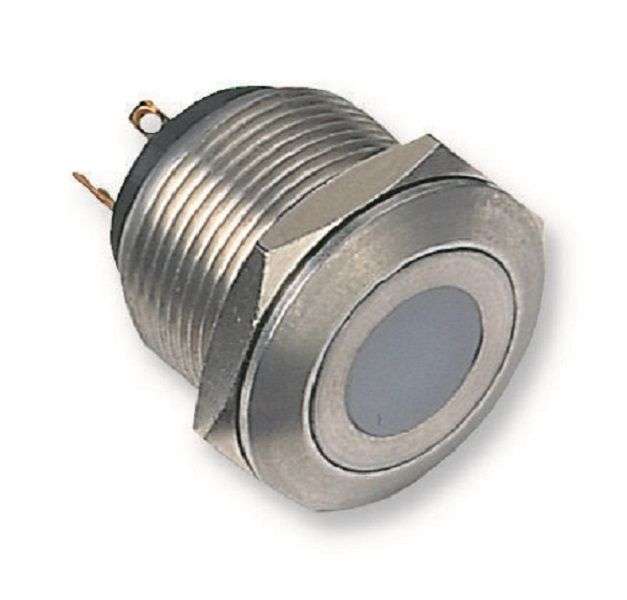

Apem (AV09C7L3D2403E) Vandal Resistant Switch, AV Series, 19.2 mm

Vandal Resistant Switch, AV Series, 19.2 mm, SPST-NO, Momentary, Flush, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: AV SeriesPanel Cutout Diameter: 19.2mmContact Configuration: SPST-NOSwitch Operation: MomentaryPushbutton Actuator Style: FlushContact Current Max: 50mAContact Voltage AC Max: -Actuator / Cap Colour: NaturalContact Current AC Max: -Contact Voltage VAC: -Operating Force: 7NContact Current DC Max: 50mAContact Voltage DC Max: 24VContact Voltage VDC: 24VIP Rating: IP54Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: GreenPanel Cutout (H x W): -Product OverviewThe AV09C7L3D2403E is a single-pole single-throw (SPST) green LED illuminatedmomentary tactile security Pushbutton Switch with solder terminal, flat actuatorand NO function. The AV series switch has gold plated dome contact, gold platedbrass terminal and stainless steel actuator/bushing. Anti-jamming constructionprovides reduced travel to prevent insertion of foreign parts. Contact andmechanism protected against crushing.19mm Bushing diameterAttractive, robust and durableIrremovableFire resistant, long lifeApplicationsSecurity
