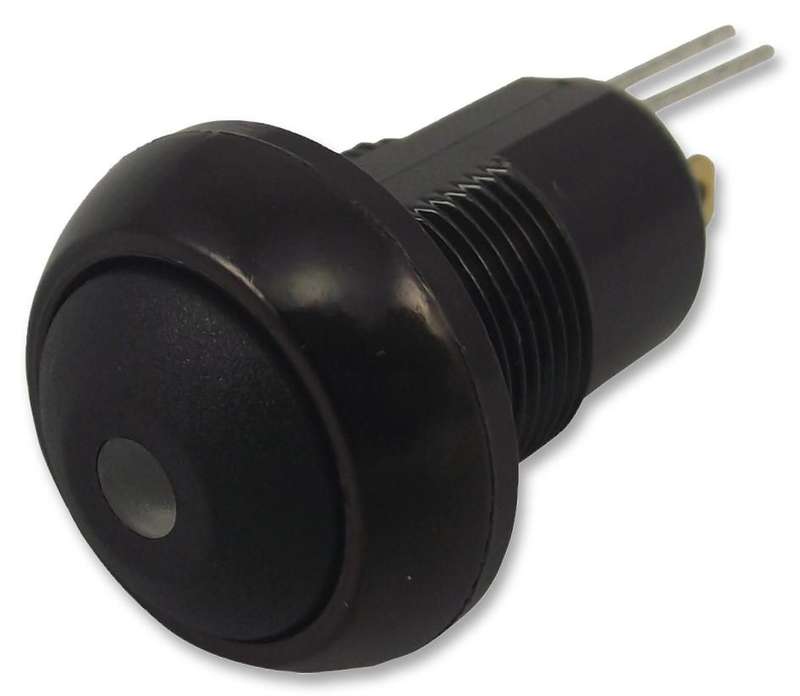

Apem (IPR1SAD2LOS) Industrial Pushbutton Switch, IP, 13.6 mm

Industrial Pushbutton Switch, IP, 13.6 mm, SPST, Off-On, Round, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: IPPanel Cutout Diameter: 13.6mmContact Configuration: SPSTSwitch Operation: Off-OnContact Current Max: 4AContact Voltage AC Nom: -Pushbutton Actuator Style: RoundActuator / Cap Colour: BlackContact Voltage DC Nom: 12VContact Current AC Max: -Contact Voltage VAC: -Contact Current DC Max: 4AContact Voltage VDC: 12VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: RedPanel Cutout (H x W): -Product OverviewThe IPR1SAD2LOS is a single-pole single-throw (SPST) super red LED illuminatedPushbutton Switch for harsh environments, with solder lug terminal, OFF-ONfunction, dark blue round curved actuator and bright chrome bezel. IP seriesswitch has gold plated silver contact, polyamide 6/6 actuator, polycarbonatelens and epoxy terminal seal. The latching action helps actuator remains in thelow position when "ON". A sealing boot is available to protect the switchesagainst frost and sand (P/N U5125).Compact design, behind-panel depth less than 20mm12mm Bushing diameter100mR Initial contact resistanceIP67 Protection ratingApplicationsIndustrial
