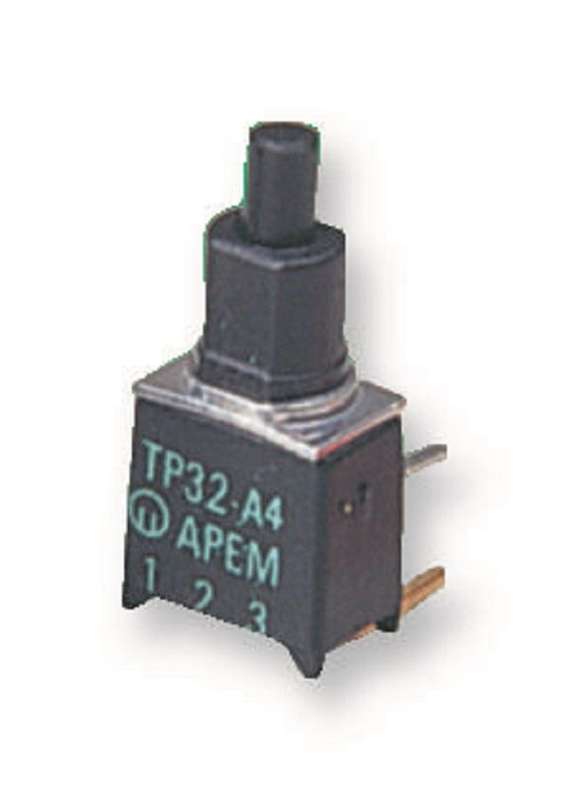

Apem (TP33W0080) Pushbutton Switch, TP, SPST-NO, Off-(On), Plunger, Black

Apem (TP33W0080) Pushbutton Switch, TP, SPST-NO, Off-(On), Plunger, Black

New 1988 available
R509.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1082512
Bob Shop ID
645117593
Product InformationPushbutton Switch Type: StandardProduct Range: TPContact Voltage AC Nom: 20VContact Configuration: SPST-NOContact Voltage DC Nom: 20VSwitch Operation: Off-(On)Pushbutton Actuator Style: PlungerContact Current Max: -500mAActuator / Cap Colour: BlackContact Current AC Max: -Contact Voltage VAC: 20VContact Current DC Max: -Contact Voltage VDC: 20VIP Rating: -Switch Mounting: Through HoleSwitch Terminals: PC PinIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe TP33W0080 is a single-pole single-throw tiny washable momentary PushbuttonSwitch with right angle, horizontal mounting terminals, gold-plated brasscontact, PBT case, glass-filled polyamide actuator and epoxy terminal seal.O-ring seal between actuator and bushing50mR Maximum contact resistance1000MR at 500VDC Insulation resistance60000 Cycles electrical life at full load-30 to +85°C Operating temperature rangeApplicationsIndustrial
