Vehicle Fitment & Part Details

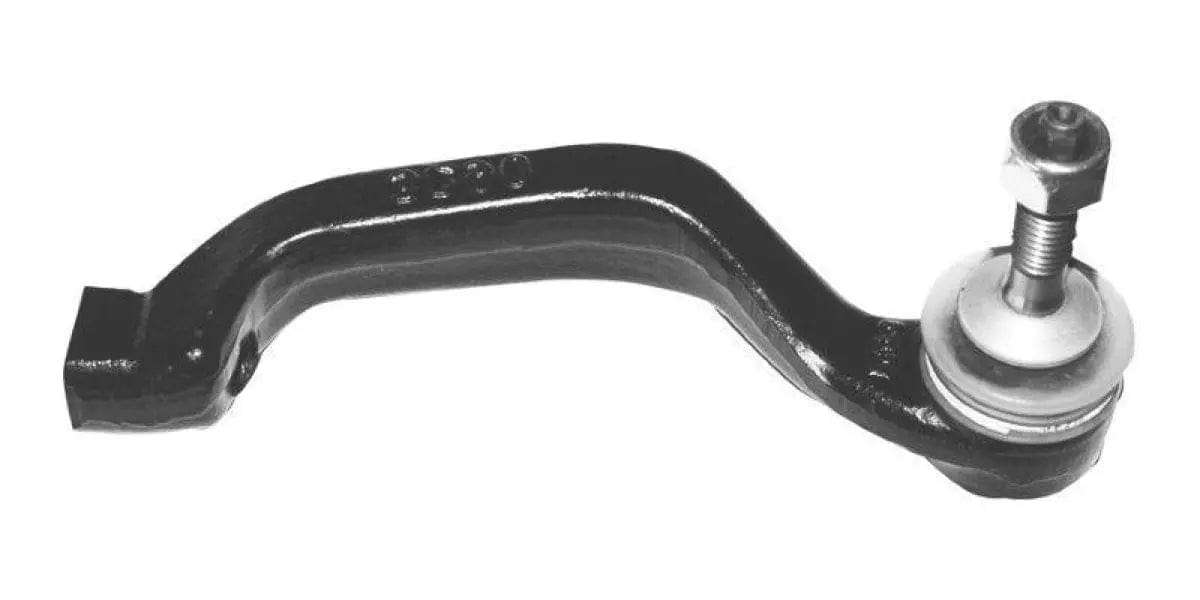

This Aplus front outer tie rod end pair is listed for selected Jaguar S-Type II X200 applications, with part MPN 34534AP and Jaguar OE references XR 81770 and XR 81771. Each tie rod end has a supplied length of 188 mm, an M14x1.5 internal thread and an M12x1.75 external thread. Confirm compatibility by matching the listed fitment details and OEM reference numbers supplied. Verify VIN/engine.
Key Details
- SKU
- 34534AP
- Component
- Outer Tie Rod End
- Position
- Front Left & Right
- Configuration
- Pair
- Brand
- Aplus
- Part MPN
- 34534AP
- OEM References
- Jaguar: XR 81770
- Jaguar: XR 81771
- Primary Fitment
- Jaguar S-Type II X200
- Included
- Front left and right outer tie rod ends with nuts
- Paired Article Number
- 48108
- Specs
- 188 mm length; M14x1.5 internal thread; M12x1.75 external thread; 18 mm spanner size
Listing Highlights
- Supplied as a front left-and-right pair with nuts.
- Listed for 7 Jaguar S-Type II X200 applications shown in the fitment table.
- Supplied specifications include 188 mm length, M14x1.5 internal thread and M12x1.75 external thread.
Product Specifications
| Specification | Value |
|---|
| Length | 188 mm |
|---|
| Internal Thread Size | M14x1.5 |
|---|
| External Thread Size | M12x1.75 |
|---|
| Spanner Size | 18 mm |
|---|
| Supplementary Information | With nut |
|---|
| Paired Article Number | 48108 |
|---|
Vehicle Fitment
This outer tie rod end pair is listed for 7 Jaguar S-Type II X200 applications covering supplied year ranges from 1999-2008. Use the full table below to confirm model, chassis, year range, engine and power before ordering.
| Model | Chassis | Years | Engine | Power |
|---|
| S-Type II | X200 | 04/2002-10/2007 | 2.5 V6 Petrol 2497ccm (JB/AJV6) | 147kW/200PS |
|---|
| S-Type II | X200 | 01/1999-10/2007 | 3.0 V6 Petrol 2967ccm (FB/AJV6; FG/AJV6) | 175kW/238PS |
|---|
| S-Type II | X200 | 01/1999-04/2002 | 4.0 V8 Petrol 3996ccm (GC/AJV8) | 203kW/276PS |
|---|
| S-Type II | X200 | 09/1999-12/2002 | 4.0 V8 Petrol 3996ccm (AJV8) | 209kW/284PS |
|---|
| S-Type II | X200 | 04/2002-10/2007 | 4.2 V8 Petrol 4196ccm (HB/AJ33; HG/AJ33) | 219kW/298PS |
|---|
| S-Type II | X200 | 11/2001-12/2008 | 4.2 Supercharged Petrol 4196ccm (AJ36) | 298kW/405PS |
|---|
| S-Type II | X200 | 06/2004-10/2007 | 2.7 D Diesel 2720ccm (7B/AJTDV6; 7G/AJTDV6) | 152kW/207PS |
|---|
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Verify VIN/engine.
- Confirm the front left-and-right pair configuration, 188 mm length, M14x1.5 internal thread and M12x1.75 external thread against the original parts.
- OE references XR 81770 and XR 81771 are retained without assigning either number to a specific side.
Compatibility Verification Notes
- Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.
- Match the supplied position, pair configuration, dimensions, thread sizes and included nuts to the original parts.
- Fitment data may vary by production date, market, import history and engine variant.
- This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.
Common Questions
Is this listing for one tie rod end?
No. This listing (34534AP) is for a front left-and-right pair supplied with nuts.
Will this pair fit my Jaguar S-Type II?
This pair is listed for the X200 fitments shown on this page. Confirm by matching the full fitment details. Verify VIN/engine.
What are the thread sizes?
The supplied internal thread is M14x1.5 and the supplied external thread is M12x1.75.
Which OE numbers should be checked?
Jaguar XR 81770 and XR 81771 are listed in Key Details. Match them to the original parts before ordering. No side assignment has been inferred.
What brand is this part?
This listing is for Aplus front outer tie rod ends supplied as a pair.
