This machine was used primarily for editing and animation between 2015 and 2016. It's been in storage for the duration of 2017.

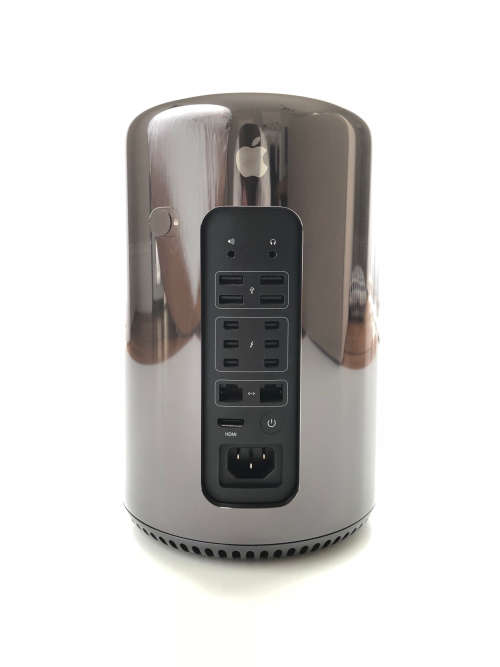

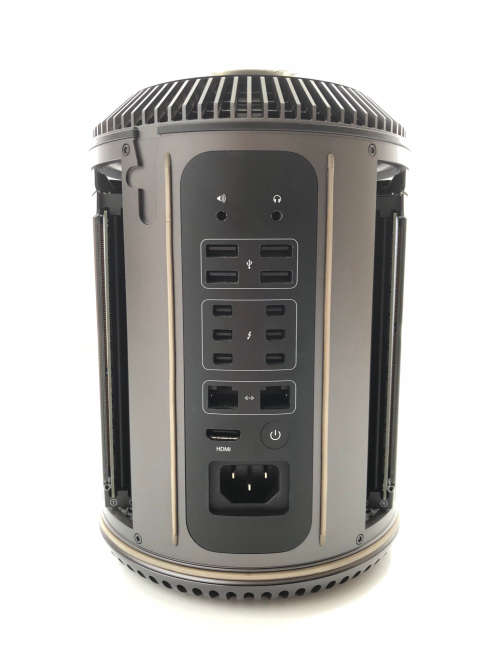

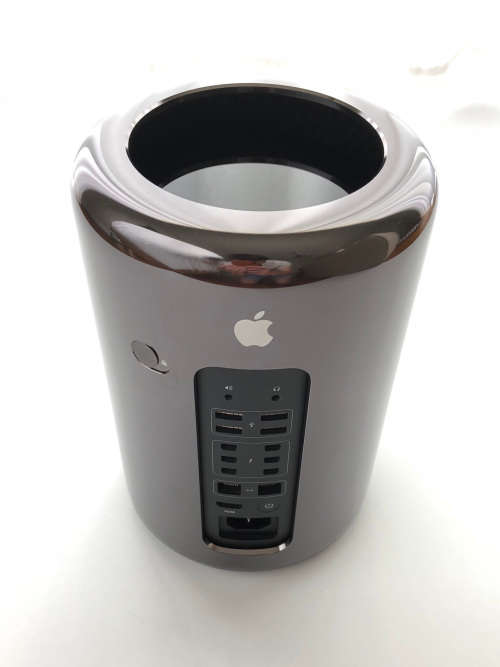

No scratches or dust present. (See attached images).
This machine churns through processor intensive tasks and makes short work of CPU-based rendering. The dual AMD D500 GPUs also allow for outstanding performance when it comes to GPU-based rendering or OpenCL computational tasks.
Dimensions
- Height: 9.9 in
- Diameter: 6.6 in
- Weight: 11 lb1
Processor
- 3.5GHz 6-Core
- Intel Xeon E5 with 12MB L3 cache and Turbo Boost up to 3.9GHz
Configurable to 3.0GHz 8-core processor with 25MB L3 cache or 2.7GHz 12-core processor with 30MB L3 cache
Memory
- 3.5GHz 6-Core
- 16GB (four 4GB) of 1866MHz DDR3 ECC memory
Configurable to 32GB (four 8GB) or 64GB (four 16GB)
Graphics
- 3.5GHz 6-Core
- Dual AMD FirePro D500 graphics processors with 3GB of GDDR5 VRAM each
- 1526 stream processors
- 384-bit-wide memory bus
- 240GB/s memory bandwidth
- 2.2 teraflops performance
Configurable to dual AMD FirePro D700, each with 6GB of GDDR5 VRAM, 2048 stream processors, 384-bit-wide memory bus, 264GB/s memory bandwidth, and 3.5 teraflops performance
Display Support
- Connect up to:
- Three 5K displays
- Six Thunderbolt displays
Storage
- 256GB
- PCIe-based flash storage
Configurable to 512GB or 1TB2
Audio
- Combined optical digital audio output/analog line out minijack
- 3.5 mm headphone jack with headset support
- HDMI port supports multichannel audio output
- Built-in speaker
Connections and Expansion
- 4 USB 3
- 6 Thunderbolt 2
- Dual Gigabit Ethernet
- HDMI 1.4 Ultra HD
Wireless
- 802.11ac Wi-Fi wireless networking;3 IEEE 802.11a/b/g/n compatible
- Bluetooth 4.0 wireless technology
Electrical and Operating Requirements
- Line voltage: 100-240V AC
- Frequency: 50Hz to 60Hz, single phase
- Maximum continuous power: 450W
- Operating temperature: 50° to 95° F (10° to 35° C)
- Relative humidity: 5% to 95% noncondensing
- Maximum altitude: 16,400 feet (5000 meters)
- Typical acoustical performance, sound pressure level (operator position): 12 dBA at idle
In the Box
Included Software
macOS High Sierra
macOS is the operating system that powers everything you do on a Mac. macOS High Sierra brings new forward-looking technologies and enhanced features to your Mac. It’s macOS at its highest level yet.* Learn more
Acoustic Performance
Declared noise emission values in accordance with ECMA-109
| | Sound Power Level
L W A,m (B) | Sound Pressure Level
Operator Position
L p A,m (dB) |
| Idle | 2.05 (K V = 0.25) | 14.0 |
| Wireless web | 2.05 (K V = 0.30) | 14.5 |
- L W A,m is the mean A-weighted sound power level, rounded to the nearest 0.05 B.
- L p A,m is the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest 0.5 dB).
- 1 B (bel) = 10 dB (decibel)
- K v is the statistical adder for computing upper-limit of A-weighted sound power level.
- The quantity, L W A,c (formerly called L W Ad) may be computed from the sum of L W A,m and K v.
- The Wireless web test browses 25 popular websites.
Mac Pro and the Environment
Apple takes a complete product life cycle approach to determining our environmental impact.
- ENERGY STAR 6
- EPEAT Gold4
- BFR-free
- PVC-free5
- Highly recyclable
* Some features will be available on September 25, 2017, with macOS High Sierra.
- Weight varies by configuration and manufacturing process.
- 1GB = 1 billion bytes and 1TB = 1 trillion bytes; actual formatted capacity less.
- Internet access required. 802.11ac is based on an IEEE draft specification.
- Mac Pro achieved a Gold rating from EPEAT in the U.S. and Canada.
- PVC-free power cord available in all regions except India and South Korea.
