* Please note: Requires AQ-HUB-CAM-G2H or AQ-HUB-M1S or AQ-HUB-M2
Features

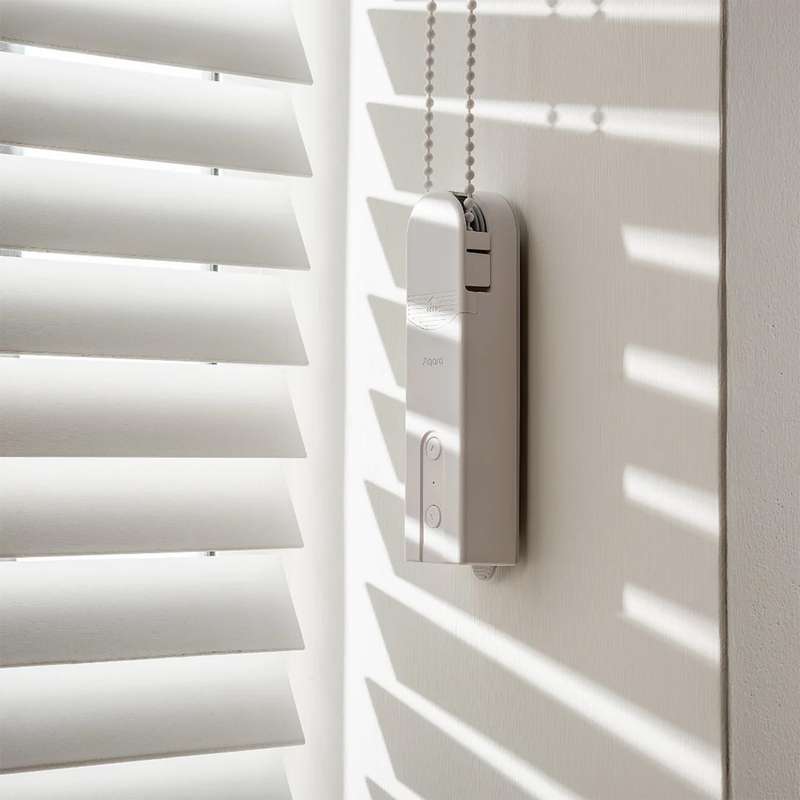

- Easy Installation: Just screw the device to the wall, attach the adapter, insert the beaded cord of your roller shade, and the device will be ready to be connected.
- Zigbee 3.0 Protocol: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology. Better stability and compatibility (more standardized protocol), longer support, and more features.
- All-Round Compatibility: Compatible with most popular ecosystems and can be controlled by voice. HomeKit, Alexa, Google, IFTTT, Alice, Marusya are supported.
- User-Defined Opening/Closing: The user will be able to pre-set a number of desired open/close percentages and switch between them easily.
- 2-Month Battery Life: Thanks to Aqara battery-saving technologies, industry-leading battery life is achieved. You don't need to worry about charging the device every few weeks.
- USB Type-C for Charging or Constant Power Supply: You can choose between two installation modes: wired and wireless. For charging or powering the device constantly, the most modern and versatile Type-C port is used.
-One-Button Control: Thanks to the Aqara Home app, the full operation of your roller shade can be done by pressing only one button such as the Aqara Mini Switch.
- Smart Home Automations: Connect the device to the Aqara Home app, and you will be able to forget about operating the device manually: after configuring the automations, it will just work by itself!
- 4 Adapters for Different Types of Beaded Cords: The majority of roller shades with beaded cords are supported due to a variety of included adapters.
Specifications
- Wireless Protocol: Zigbee 3.0 IEEE 802.15.4
- Dimensions: 42×37×165 mm (1.69×1.52×6.89 in.)
- Operating Temperature: -10°C ~ 55 (14°F ~ 131°F)
- Operating humidity: 0-95% RH, no condensation
- Battery Type: Lithium battery (not replaceable)
- Rated Input: 5V-1A
-Total Power Consumption: 5W
-Standby Time: Two months (based on controlling a roller shade of 1.8m x 1.8m up and down once a day)

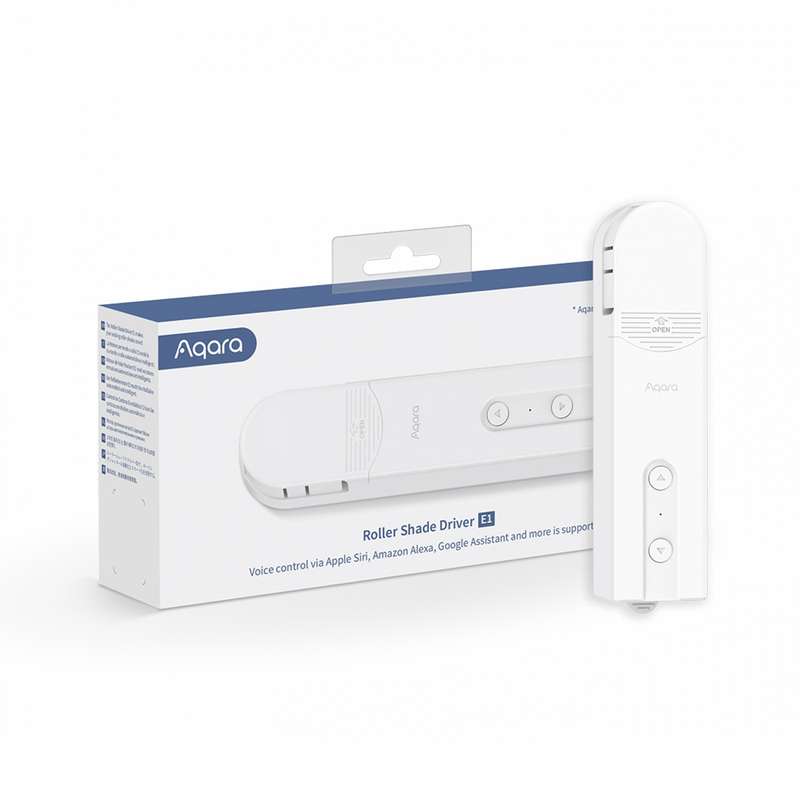

What is in the box
- 1x Aqara Roller Shade Driver E1
- 2x Screw
- 2x Expansion Tube
- 1x Double-Faced Adhesive Tape
- 3x Spare Rotating Plate
- 1x USB-C to USB-A Cable
