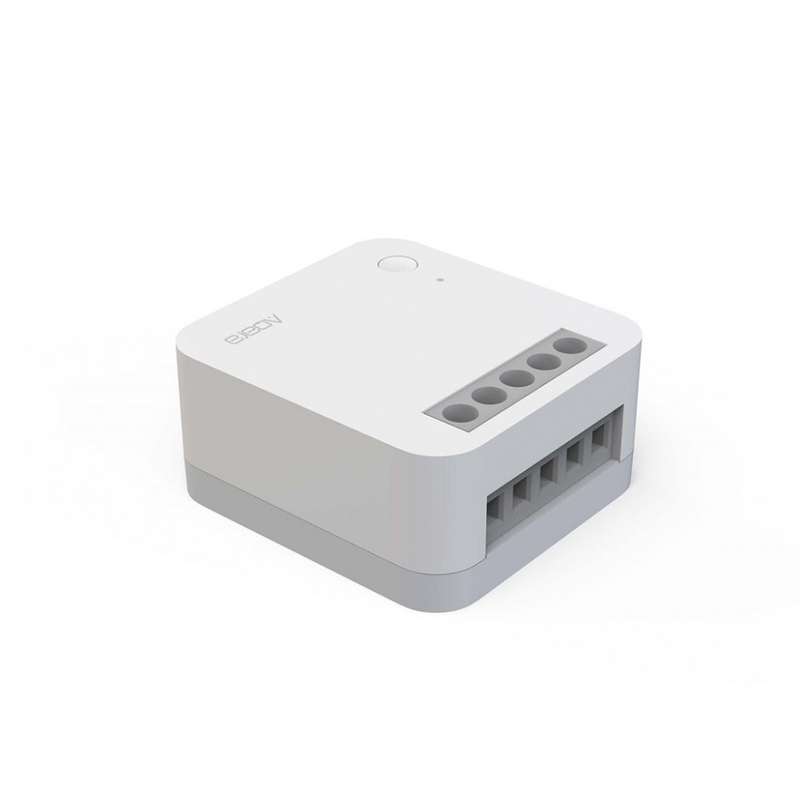

Aqara Single Switch Module T1 (With Neutral)

* Requires AQ-HUB-CAM-G2H or AQ-HUB-M1S or AQ-HUB-M2

The Aqara Single Switch Module T1 (With Neutral) is a relay control module based on Zigbee 3.0 wireless communication protocol, which can control the on/off status of lights, a fan, and other devices. With the Aqara Hub, it can realize the remote control through the app, timing control, power detection, power consumption statistics, etc., and can match other smart devices to realize more smart scenes.

Features

- Power Monitoring
- Zigbee 3.0 Protocol
- Compact Size
- 2-Way Switch Support
- Power Off memory
- Advanced Protection
- Timers and Remote Control
- All-Round Compatibility

Specifications

- Color: White
- Input Power: 100-250VAC,50/60Hz
- Input Current: MAX 10A (resistive load)
- Rated Load: Min 3W, Max 2500W (resistive load), Please do not overload it.(Please make sure that the 10A over-current protection circuit breaker on the front end of this product works normally before it powers on)
- Wireless Connection: Zigbee 3.0
- Wireless Standard: IEEE 802.15.4
- Wireless Frequency: 2.4GHz (24002483.5MHz)
- Receiver Sensitivity: -102dBm
- Effective Communication Distance: 30m (indoors)
- Operating Temperature: 0°C~ 35°C
- Operating Humidity: 5% ~ 95% RH, non-condensing
- Storage Temperature: -10°C~ 50°C
- Product Dimensions: 42.9×40×19.9 mm
- Net Weight (kg): 0.03
 -Gross Weight (kg): 0.05
