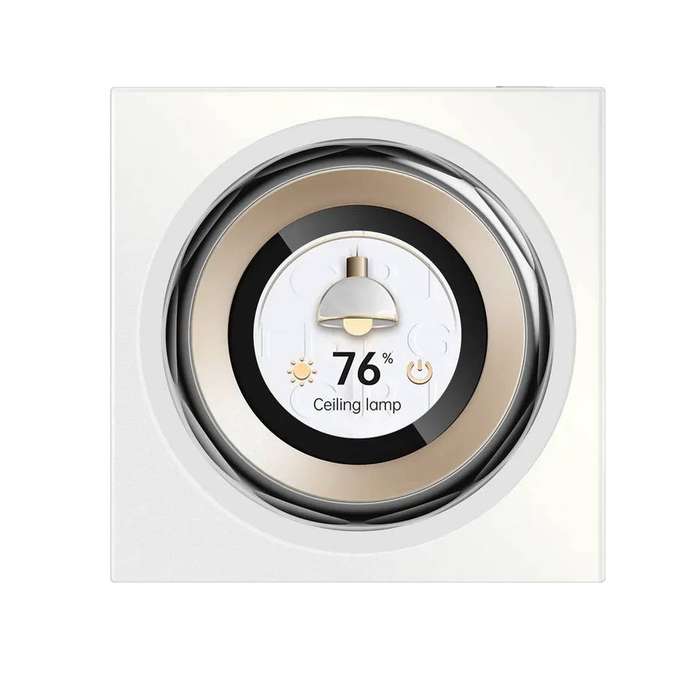

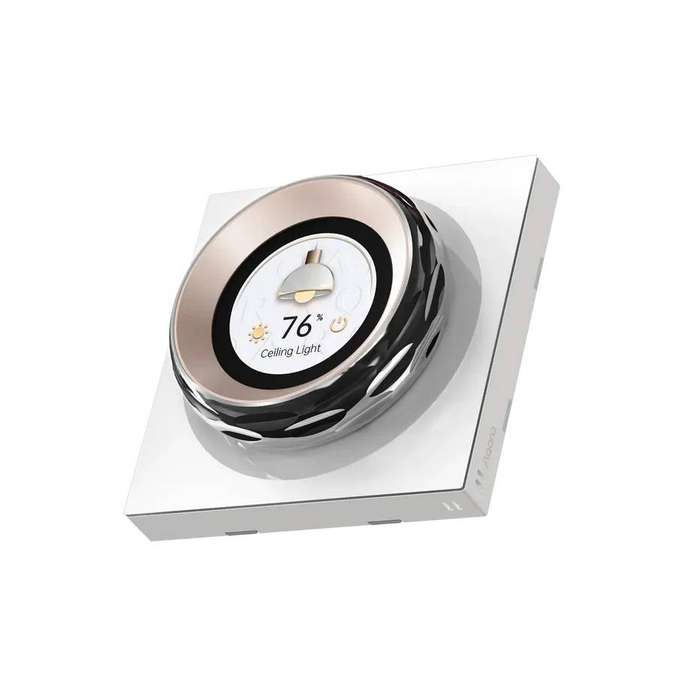

Aqara Touchscreen Dial V1 | DS-K01D

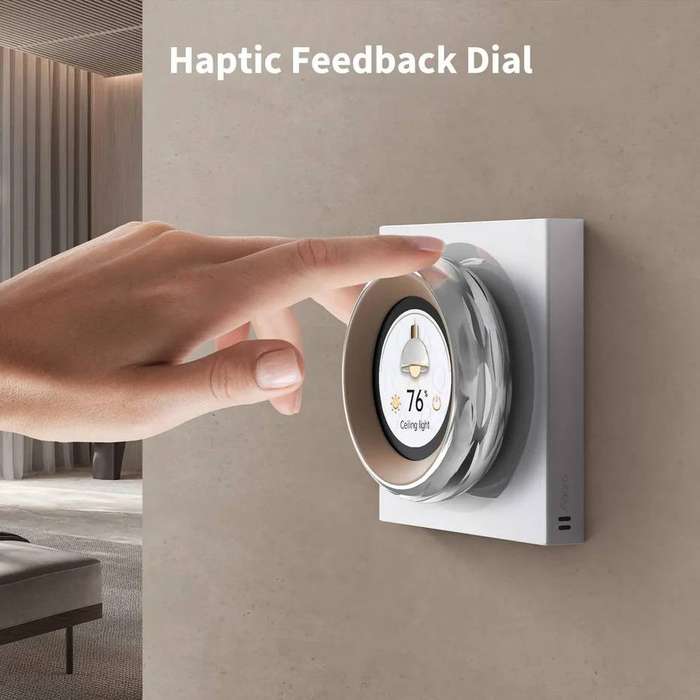

The Aqara Touchscreen Dial V1 DS-K01D is a smart wall switch combining a haptic rotary dial and a 1.32-inch touchscreen for precise control over your smart home environment. It integrates two relay switches and six wireless switches to manage multiple Aqara devices. Users can adjust settings by sliding, clicking, or rotating the dial, receiving tactile and audible feedback for accurate adjustments. The switch includes built-in sensors for monitoring indoor temperature and humidity, enabling automated climate control. A proximity sensor activates the screen on approach, conserving energy and reducing light pollution. The customizable screen can display time, weather, and device status. Connectivity is provided through dual-band Wi-Fi, with support for Apple HomeKit, Home Assistant, Alexa, and Google Home ecosystems.

Specifications

Connectivity Protocol
Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee IEEE802.15.4, Bluetooth

Compatible Platforms
Aqara/Apple Home/Alexa/Google Home/Home Assistant

Electrical Rating
200-240 VAC, 50/60 Hz, Max 8 A (Resistive Load)

Product Dimensions
86*86*62.1 mm

Weight
369g/ 0.81 pounds

Working Temperature
-10°C ~ 40°C

Operating Humidity
0 ~ 95% RH, no condensation

What is in the Box

Touchscreen Dial V1 EU × 1
User Manual × 1
Compliance Statement × 1
Screw Kit × 2
