Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band, all lag-free.
Product Overview

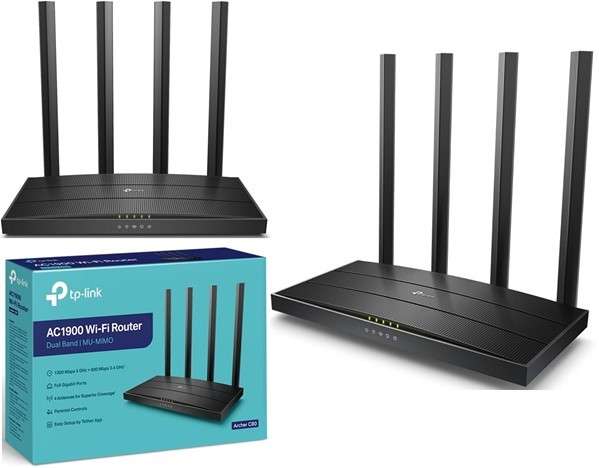

The TP-Link AC1900 Wireless MU-MIMO Wi-Fi Router delivers ultra-fast dual-band speeds of up to 1900 Mbps (1300 Mbps on 5 GHz and 600 Mbps on 2.4 GHz) for smooth streaming and gaming. Equipped with 3×3 MIMO and Beamforming technology, it ensures strong, reliable coverage and optimal performance for multiple devices. Advanced features like Smart Connect, Airtime Fairness, and Parental Controls offer efficient network management and seamless connectivity.
Specifications
Product Code: ARCHER-C80
Description: TP-Link Archer AC1900 Wireless MU-MIMO Wi-Fi Router
WIRELESS
Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity: Medium
Dual-Band
Allocate devices to different bands for optimal performance
3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes
Router Mode
Access Point Mode
Interface
4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
Button
Reset Button
WPS/Wi-Fi Button
Power On/off Button
External Power Supply
US version 12V/1.5A
EU version 12V/1A
Antenna: 4 Fixed Omni Directional Antennas
HARDWARE
Processor: 1.2 GHz CPU
Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
Power:
US Version: 12 V ? 1.5 A
EU Version: 12 V ? 1 A
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac 5 GHz
IEEE 802.11b/g/n 2.4 GHz
Reception Sensitivity: 5 GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20MCS0:-98dBm, 11ac VHT20MCS8:-72dBm
11ac VHT40MCS0:-92dBm, 11ac VHT40MCS9:-68dBm
11ac VHT80MCS0:-89dBm, 11ac VHT80MCS9:-64dBm
Reception Sensitivity: 2.4 GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20MCS0:-97dBm, 11n VHT20MCS8:-72dBm
11n VHT40MCS0:-92dBm, 11n VHT40MCS9:-67dBm
Transmit Power
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:<30dBm(2.4 GHz & 5 GHz)
Wireless Functions: Enable/Disable Wireless Radio, WMM
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz
