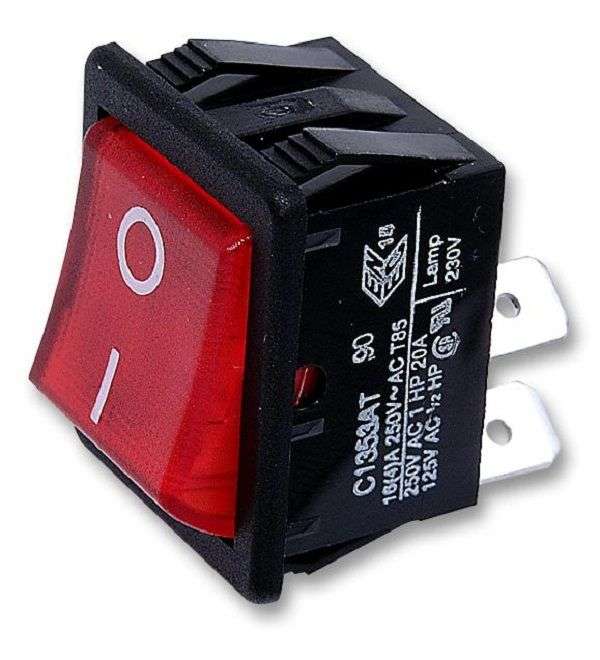

Arcoelectric (C1353ATNAN) Rocker Switch, Off-On, DPST, Illuminated

Rocker Switch, Off-On, DPST, Illuminated, Panel Mount, Red, 250 VAC, 16 A, 1350SeriesProduct InformationSwitch Operation: Off-OnContact Configuration: DPSTIllumination: IlluminatedSwitch Mounting: Panel MountActuator / Cap Colour: RedContact Current Max: 16AProduct Range: 1350 SeriesContact Voltage AC Nom: 250VContact Current AC Max: 16AContact Voltage VAC: 250VContact Current DC Max: -Contact Voltage VDC: -Panel Cutout Height: 28.3mmPanel Cutout Width: 22.4mmPanel Cutout Diameter: -Switch Terminals: Quick ConnectProduct OverviewThe C1353ATNAN is a double-pole single-throw (DPST) illuminated High InrushPositive Break Rocker Switch with ON-OFF function. The 1350 series switch has25x30.2mm bezel. The switch mechanism ensures contact welds formed at switch-on,are positively separated by the plunger tube acting directly on the step in themoving contact.Shallow curve profile22.3 x 28.2mm Panel cut-out6.3 x 0.8mm Terminal sizeApplicationsIndustrial
